Kubota L235/L275 Tractor (1980s) Operator's Manual (P/N 35260-19717)
54 Pages • 1 Printable PDF (English) • Download
Kubota Models Covered & Key Technical Specifications
Models & Model Codes: L235 (variant code L235DT, D1102-A engine), L275 (variant code L275DT, D1302-A engine)
Sub-models / Variants: L235 2WD Farm, L235 2WD Turf, L235 4WD Farm, L235 4WD Turf, L275 2WD Farm, L275 2WD Turf, L275 4WD Farm, L275 4WD Turf
Serial number locations: Tractor serial number: right-hand side of the transmission housing. Engine serial number: right-hand side of the engine crankcase.
-
Engine displacement: 1115 cc (68.0 cu.in.) for L235; 1299 cc (79.3 cu.in.) for L275
-
Engine configuration: 3-cylinder vertical, water-cooled, 4-cycle diesel
-
Gross power: 17.5 kW (23.5 HP) for L235; 20.5 kW (27.5 HP) for L275
-
Transmission: Mechanical shuttle, 8 forward and 7 reverse gears
-
Starting system: 12V, 1.0 kW starter with glow plug and decompression knob
-
Battery capacity: 12V 65 Ah standard (70 Ah optional for L235; 12V 70 Ah standard for L275)
-
Cooling system capacity: 6.6 liters (7.0 U.S. qts.)
-
Fuel tank capacity: 28 liters (7.4 U.S. gals.)
-
Transmission fluid capacity: 24 liters (25.4 U.S. qts.)
Kubota Manual Features & Selected Content Preview

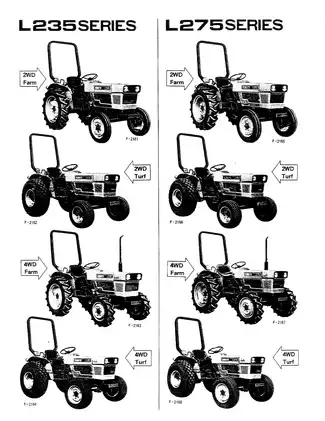

Kubota’s operator’s manual for 1980s L235 and L275 tractors covers 2WD and 4WD Farm and Turf configurations, including the L235DT and L275DT. This edition (P/N 35260-19717) was printed in the U.S. in May 2002.
PDF Search, Wiring Detail, and Page Count
Navigation and wiring detail: PDF text search and embedded bookmarks are unavailable. Small wire-color codes and switch-terminal labels are readable when enlarged.

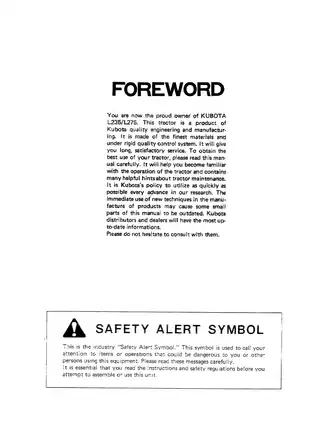

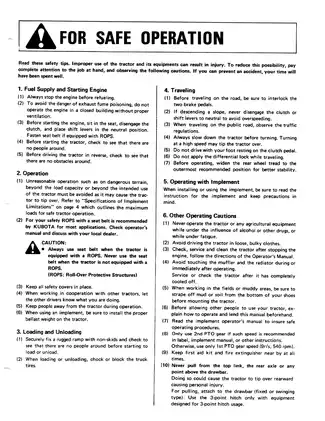

The download is one printable, 54-page English PDF. The total includes 44 numbered manual pages and 10 unnumbered pages: two covers, two blank pages, and one page each for model illustrations, the foreword, safety guidance, the contents, printing information, and company information.
Tractor Operation and Routine Service
These selected topics show the operating and maintenance coverage. The manual also explains new-tractor break-in and preparation for long-term storage.
- Engine and fuel system: Cold-weather starting with the decompression knob, fuel-system bleeding, fuel filter pot cleaning, dry-type air cleaner maintenance, and engine oil and filter changes.
- Clutch, PTO, and brakes: Single-disc and dual-disc clutch adjustments, power take-off (PTO) controls, and brake pedal travel and linkage adjustment.
- Hydraulics and hitch: Position control, optional draft control, auxiliary hydraulic outlets, three-point hitch setup, and transmission fluid and filter servicing.
- Axles and steering: Four-wheel-drive front axle oil changes, manual steering gearbox lubrication, front axle support adjustment, wheel tread settings, and toe-in.
- Cooling and maintenance: Radiator cleaning, coolant and hose checks, fan drive belt tension, daily inspections, and a scheduled maintenance checklist.
- Troubleshooting and wiring: A factory wiring diagram, fuse-box and instrument-panel illustrations, battery maintenance, and separate troubleshooting tables for the engine, tractor, and battery.
The manual suits tractor owners and operators who carry out routine maintenance. Kubota directs owners to a dealer for major service.
Diesel Starting and Scheduled Maintenance
The preheating table gives different wait times by ambient temperature. Instrument-panel illustrations identify the glow plug indicator, oil pressure and charging lamps, and lighting and hazard controls.
Driving guidance covers braking, differential lock use, and field operation. Review the manual’s precautions for loading, unloading, and driving on slopes to reduce rollover risk.
The maintenance checklist separates initial service from recurring work. The lubrication instructions distinguish the front differential from the left and right gear cases on 4WD tractors. The fuel section identifies when the system needs bleeding and explains how contamination during filter or line service can damage the injection pump and nozzles.
Clutch, PTO, and Shuttle Controls
The single-disc version has two rear PTO speed settings. The optional dual-disc version has one rear PTO speed and a separate adjustment for the live PTO clutch. These distinctions help owners identify the controls and choose the correct adjustment for their tractor. A travel-speed chart relates gear selection to tire size, and the adjustment section covers the wire for the reverse-speed interlock.
Hydraulic Outlets, Hitch, and Wheel Setup
The optional flange outlet requires a power-beyond control valve when auxiliary hydraulics and the hitch are needed together. The thread-boss outlet uses the tractor’s hydraulic controls when the implement has no separate valve. Hitch illustrations show top-link, lifting-rod, and check-chain settings for different implements. The manual also explains how optional draft control regulates working depth and how optional power steering behaves at low engine speed.
Front tread is fixed on the L235 and the 4WD L275. The 2WD L275 has adjustable front tread. Rear wheel and rim diagrams show mounting arrangements, while tire inflation and liquid ballast tables help owners check their configuration. Kubota warns that incorrect tire mounting can damage transmission components.
Wiring and Troubleshooting Limits
The wiring diagram (PDF p. 50) traces the starter, safety switch, dynamo, regulator, glow plugs, and lighting circuits. Its wire-color legend and the battery troubleshooting table help owners trace starting and charging faults.
The engine and tractor tables link hard starting, power loss, failure to move, and three-point hitch faults to possible causes. Repair guidance covers routine service, external adjustments, and basic troubleshooting. For internal engine or transmission overhaul, a separate workshop manual is needed.
Clutch Clearance and Plow Size Examples
The clutch drawings show 20–30 mm of pedal free play for both clutch types. The dual-disc version also specifies 0.9–1.0 mm of clearance at the PTO clutch adjusting bolt and pressure plate.
The implement table lists a maximum bottom-plow size of two 12-inch bottoms for the L235 and two 14-inch bottoms for the L275, in both 2WD and 4WD.
