2001-2003 Honda Rubicon TRX500FA ATV service, repair manual

Includes the following models

Rubicon TRX500FA / Honda Motor Corporation, Ltd

  • 2001 TRX500FA1
  • 2002 TRX500FA2
  • 2003 TRX500FA3

The serial numbers for these models range from 1HFTE27013XXXXXX to 1HFTE27A33XXXXXX.

Engine: 499 cc (30.45 cubic inches), Single cylinder, four-stroke, liquid cooled, 36 mm constant velocity carburetor, 4 valves per cylinder, 92.0 x 75.0 mm (3.6 x 3.0 inches), OHV

Production year(s): 2001, 2002, 2003

File specifications

File size: 73.10 MB
File type: PDF
Language: English (some of our manuals are multilanguage)

Printable: Yes
Estimated download time: 1.5 Minutes
The safer, easier way to pay
$18.99 Instant Download

Product Information

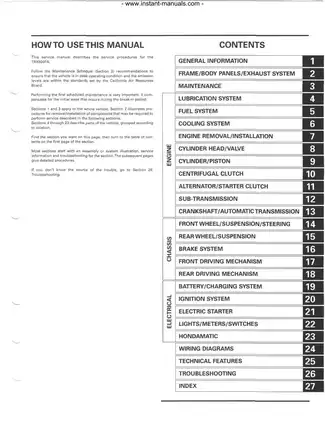

Table of Contents

  • Introduction
  • General Information
  • Lubrication
  • Maintenance
  • Fuel System
  • Engine Removal/Installation
  • Cylinder Head/Valve
  • Cylinder/Piston
  • Clutch/Gearshift Linkage
  • Final Drive
  • Transmission
  • Front Wheel/Suspension/Steering
  • Rear Wheel/Suspension
  • Hydraulic Brake
  • Battery/Charging System
  • Ignition System
  • Electric Starter
  • Lights/Meters/Switches
  • Wiring Diagram
  • Troubleshooting
  • Index

Please note that the following table of contents is a partial overview and does not cover all the sections and topics included in the manual. It provides a glimpse of the manual's content.
