Cub Cadet 7000, 7192, 7193, 7194, 7195, 7200, 7205, 7232, 7233, 7234, 7235, 7260, 7265, 7272, 7273, 7274, 7300, 7305 Service & Repair Manual

This Cub Cadet 7000 Series compact tractor service manual covers the models listed above, with separate K3-series and SL-series engine sections. It documents engine, drivetrain, hydraulic, steering, electrical, and chassis repair work.

PDF Search, Diagram Detail, and Page Count

Text search and navigation: The service pages have no searchable technical text, and there are no embedded PDF bookmarks. Small connector numbers and wire codes on the wiring diagrams require zooming. Page references on the added contents sheet differ from the PDF page positions.

One printable PDF contains 321 pages, including one added contents page and 320 service pages.

Engine, Drivetrain, and Hydraulic Service Coverage

The following selected service topics illustrate the manual’s coverage rather than reproduce its full contents. Other sections include fuel-filter disassembly and battery load testing.

• Engine repair: Step-by-step procedures for tractor splitting, engine removal, cylinder-head service, valve-seat refacing, and internal engine disassembly and inspection.

• Diesel injection: Injection-pump removal and timing, governor service, injector cleaning, opening-pressure checks, seat-leakage tests, and spray-pattern evaluation.

• Cooling system: Radiator removal, water-pump replacement, thermostat testing, coolant-temperature sender checks, and cooling-system filling procedures.

• Clutch and transmission: Single- and dual-clutch service, gear-transmission repair, hydrostatic-unit disassembly, port-block service, and rear and mid PTO work.

• Axles and brakes: Rear-axle service, mechanical front-drive reduction gears, swivel housings, differential setup, and model-specific brake repairs.

• Hydraulics and steering: Lift-cylinder service, hitch-control adjustment, power-beyond valve work, pump flow and pressure tests, and steering-cylinder leakage checks.

• Electrical diagnosis: Starter no-load testing and overhaul, alternator and regulator tests, component continuity checks, and model-specific wiring schematics.

This manual is suited to mechanics familiar with tractor teardown and precision measurement; the documented work calls for equipment such as splitting stands, lifting gear, and an injector nozzle tester.

Engine Inspection and Injection Work

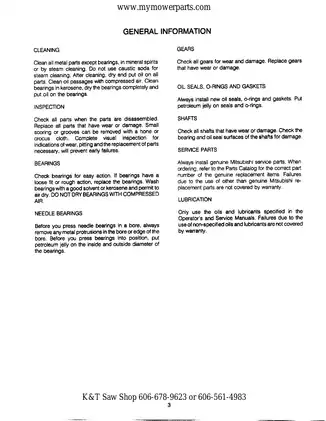

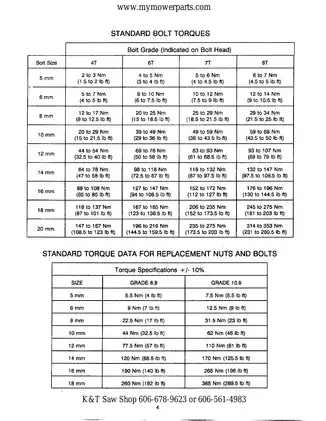

General workshop guidance covers cleaning, inspection, bearing handling, seals, and fastener grades. The engine sections provide piston-ring and connecting-rod tolerances, crankshaft inspection data, and undersize grinding dimensions.

These references let you compare measured wear with the manual’s limits at the workbench before deciding whether components need replacement or machining. The K3 and SL sections also distinguish their cylinder-head, valve-guide, and internal assembly procedures.

Fuel-system coverage separates direct- and indirect-injection configurations and their timing specifications. For the 719-series injectors, disassembly is specified for cleaning only. The 723- and 727-series injector section warns that nozzle rotation during cap-nut removal can damage the locating pins, valve stop, and injector body.

Clutch, Transmission, and Axle Setup

The drivetrain sections go beyond removal instructions to cover synchronizer assembly, shaft end-play adjustment, differential backlash, and pinion-bearing preload. Dual-clutch work references a clutch alignment tool and release-height gauge.

Cross-sectional drawings of the dual clutch and hydrostatic transmission show internal component relationships. Hydrostatic service distinguishes the smaller 719-series unit from the 723- and 727-series assemblies, with separate port-block illustrations and pressure-test locations.

Brake coverage separates the 719-series dry internal-expanding brakes from the wet-disc assemblies used on the 723- and 727-series tractors.

Hydraulic Fault Finding and Steering Service

Troubleshooting charts address power steering, the three-point hitch, and the hydrostatic transmission. They connect symptoms with linkage checks, pressure measurements, and component inspections.

Hydraulic Component Locations and model-specific hydraulic schematics show circuit paths under different operating conditions. The engine-driven steering and main hydraulic pumps are treated as replacement units if worn or damaged; the steering hand pump has separate disassembly and assembly instructions.

The power-beyond section explains how incorrect port blanking with the spool in the external-hydraulics position can damage the hydraulic system.

Electrical Tests, Chassis Access, and Adjustments

Starter-test interpretation distinguishes high-current, low-speed faults from open circuits and poor connections. Alternator coverage includes regulator testing and checks of the rotor, stator, brushes, and rectifier.

The Wiring Schematic 719-series and Wiring Schematic 723-/727-series drawings identify wire colors, connector positions, switch contacts, and starting interlocks.

Chassis procedures cover hoods, side panels, instrument clusters, fenders, platforms, fuel tanks, and ROPS removal. Adjustment sections address clutch and brake pedals, throttle controls, differential locks, hydrostatic controls, and PTO linkages.

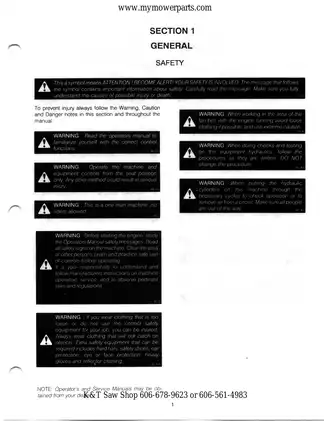

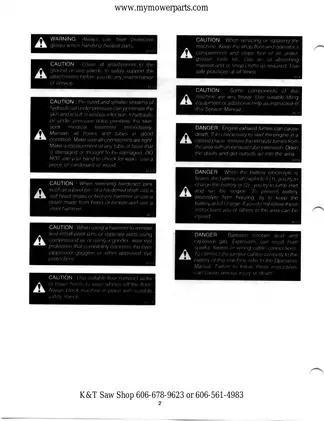

Because working with heavy agricultural machinery and high-pressure hydraulics involves inherent physical risks, always prioritize standard shop safety protocols and ensure proper load support before separating major assemblies.

Selected Valve, Bearing, and Coolant Specifications

The K3-series and SL-series engine specifications list cold valve clearance at 0.25 mm. For the K3-series engines, the main-bearing cap retaining-bolt torque is 49–54 Nm (36–40 lb-ft).

The cooling-system section lists a 719-series coolant capacity of 5.7 liters, including the recovery bottle, alongside the filling and coolant-level checks.
