2002 Yamaha FX140 WaveRunner Service & Repair Manual (P/N F1B-28197-ZE-C1)

This Yamaha service manual, publication F1B-28197-ZE-C1, covers the 2002 FX140 WaveRunner personal watercraft with the F1B hull and 60E engine/jet configuration.

• Engine repair: Engine removal, camshaft and timing-chain service, cylinder-head work, crankcase disassembly, piston inspection, and crankshaft bearing selection.

• Fuel injection: Fuel pump module service, Mikuni throttle-body inspection and synchronization, injector checks, and fuel-pressure measurement.

• Jet pump: Impeller and drive-shaft disassembly, bearing and oil-seal replacement, intermediate-housing service, reverse gate, and nozzle assemblies.

• Controls and hull: Quick Shift Trim System (QSTS), steering and shift cable adjustment, hood and deck removal, and hull repair procedures.

• Electrical tests: Ignition, starting, charging, electric bilge pump, multifunction meter, and sensor tests with system-specific wiring diagrams.

• Trouble analysis: Yamaha Diagnostic System operating instructions, diagnostic display views, fault charts, active tests, and data comparison graphs.

The procedures are intended for Yamaha dealers and their mechanics, using the measuring tools and diagnostic equipment specified for the work.

Engine Repair and Routine Service

The power-unit chapter goes beyond removal. It covers reduction drive gear disassembly, oil tank and oil pump inspection, valve-seat and guide work, and color-coded bearing selection. Camshaft installation includes timing-mark alignment and checks after assembly.

Exploded assembly views and removal/installation charts accompany component-specific tightening torques, clearances, and wear limits. The maintenance interval chart is paired with valve-pad selection tables, 10W-30 engine-oil service, and lubrication points.

Valve-train notes address pads falling through the timing-chain opening into the crankcase. The bearing sections warn that mixing original bearing positions can upset oil clearances and damage the engine.

Dry-sump oil-level checks have separate warm-up instructions for use in water and on land with cooling water supplied. The text explains how oil temperature affects the dipstick reading.

Fuel Injection and Electrical Testing

Throttle-body synchronization uses vacuum measurements and cylinder-to-cylinder comparison, followed by throttle-position-sensor verification. Fuel-system pages also cover quick-connector handling, fuel-sender checks, rollover valves, and pump-filter inspection.

Electrical analysis explains peak-voltage measurement, resistance checks, and test-harness connections. Ignition System, Fuel Control System, Starting System, Charging System, and Indication System wiring diagrams accompany connector views and full-color FX140 wiring sheets.

Yamaha Diagnostic System and Fault Tracing

The diagnostic chapter covers fault history, live engine monitoring, stationary ignition/injector/fuel-pump tests, cylinder-drop testing, and stored-data graphs. These references help technicians relate reported sensor faults to the component tests before selecting replacement parts.

The documented PC setup uses Windows 95 through XP and an RS232C port; diagnostic software and communication hardware are separate requirements. Multifunction-meter self-diagnosis offers another way to read error codes, while multiple simultaneous codes call for Yamaha Diagnostic System checks.

Jet Pump, QSTS and Hull Work

Bearing tools, oil-seal installation depths, coupling checks, and intermediate-housing shim selection support jet-pump rebuilding. Cable and hose-routing drawings cover cooling hoses, controls, and wiring harnesses.

Hull pages include scratch, crack and puncture work, insert-nut repairs, and graphics. Crack, puncture, and insert-nut work also requires reference to the separate Watercraft FRP Repair Manual, which is not included in this PDF.

High-pressure fuel systems and heavy marine components require the handling precautions and service specifications given in the manual.

Examples of Valve, Head and Fuel-Pressure Specifications

The cylinder-head inspection section lists a warpage limit of 0.1 mm (0.004 in). For valve-clearance adjustment, the cold specifications are 0.11–0.20 mm at the intake valves and 0.25–0.34 mm at the exhaust valves.

Fuel-pressure measurement is specified at 310–330 kPa (45–47 psi) after warming the engine for several minutes, with the gauge and adapter identified in the procedure.

PDF Search, Bookmarks and Diagram Detail

Text and wiring navigation: Text search works across the workshop chapters and wiring labels. Embedded bookmarks cover the chapters and wiring sheets; all four language groups use the same chapter-opening destinations. Dense connector numbers and wire-color labels are readable when enlarged.

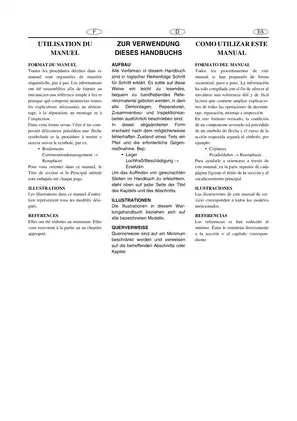

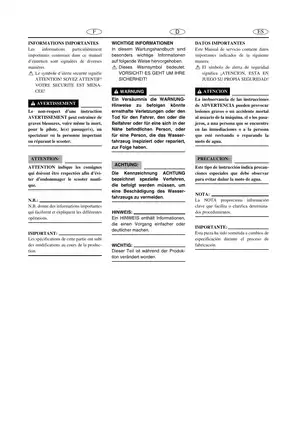

Supplied as one 866-page printable PDF with English, French, German, and Spanish text. The total includes the front and back covers and two blank pages.
