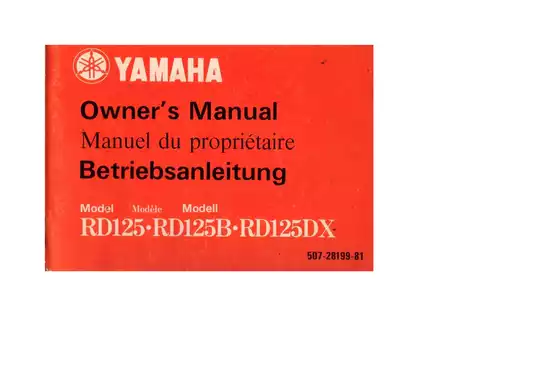

1975–1980 Yamaha RD125 / RD125B / RD125DX Owner's Manual (P/N 507-28199-81)
86 Pages • Printable PDF • 32.40 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models: RD125, RD125B, RD125DX
Model Years: 1975–1980 (1975, 1976, 1977, 1978, 1979, 1980)
-
Fuel tank capacity: 11.5 liters
-
Fuel reserve capacity: 2.8 liters
-
Transmission oil capacity: 750 ± 50 cc
-
Autolube tank capacity: 1.5 liters
-
Spark plug gap: 0.6–0.7 mm
-
Spark plug tightening torque: 2.5–3.0 m-kgs
-
Contact breaker point gap: 0.3–0.4 mm
-
Drive chain deflection: 20 mm
-
Clutch lever free play: 2–3 mm
-
Front brake lever free play: 5–8 mm (RD125/RD125B) or 13–26 mm (RD125DX)
-
Tire pressure (Normal): Front 1.6 kg/cm², Rear 2.0 kg/cm²
-
Tire pressure (High Speed): Front 2.0 kg/cm², Rear 2.4 kg/cm²
Yamaha Manual Features & Selected Content Preview

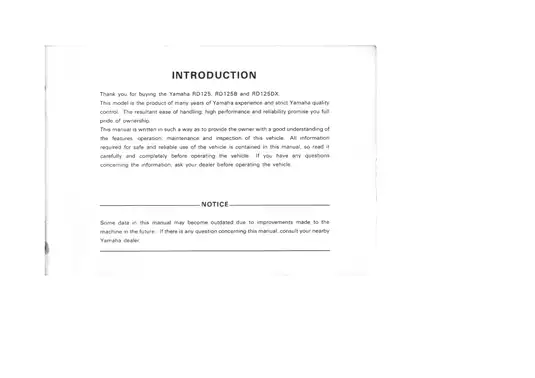

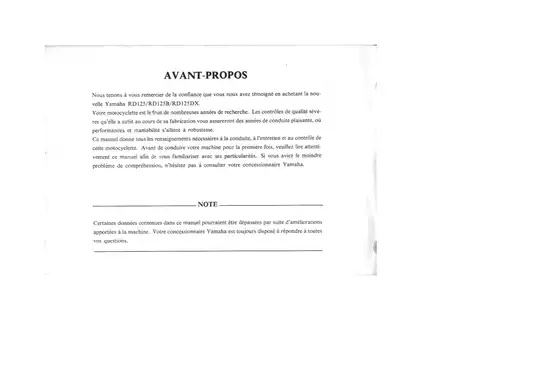

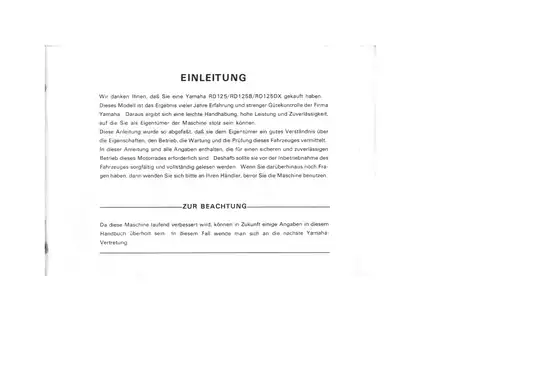

This Yamaha owner's manual covers the 1975–1980 RD125, RD125B, and RD125DX, with instructions for operation, periodic maintenance, and minor repair. The English, French, and German edition carries cover code 507-28199-81 and was printed in Japan in February 1975.
Printable PDF with Section Bookmarks
Text search and navigation: PDF text search is not available. Six embedded bookmarks, labeled in French, provide access to the cover and main sections. Small troubleshooting-chart labels are readable when enlarged.

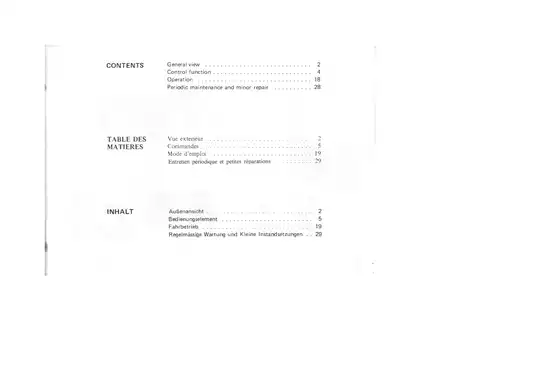

One printable, 86-page PDF contains all three languages. The total includes five opening pages—the front cover, introductions, and contents—and one rear cover.
Owner Maintenance, Brake Adjustments, and Starting Checks
The following selected topics cover routine upkeep and fault checks; the manual also explains the steering and seat locks and provides break-in guidance.
-
Maintenance planning: Periodic inspection and lubrication charts identify service tasks, lubricant categories, and the components requiring regular attention.
-
Clutch and controls: Clutch-lever adjustment, control-cable inspection and lubrication, throttle-grip servicing, and steering-damper adjustment for RD125/RD125B models outside Canada.
-
Brake systems: Separate front-brake adjustments for RD125/RD125B and RD125DX, DX brake-fluid inspection, rear-brake adjustment, and brake-light checks.
-
Fuel and intake: Step-by-step instructions cover fuel-petcock filter cleaning, foam air-filter servicing, carburetor idle adjustment, and throttle-cable play.
-
Final drive: Drive-chain tension checks and adjustment, rear-wheel alignment references, chain cleaning, and lubrication instructions.
-
Starting and ignition: Fuel, compression, and ignition troubleshooting charts, spark-plug condition checks, regional plug specifications, and contact-breaker maintenance guidance.
-
Battery and lighting: Battery-fluid checks, storage and reconnection guidance, headlight beam adjustment, and dealer replacement guidance for the sealed-beam unit.
Written for owners, this manual explains operating checks and routine upkeep while identifying adjustments and repairs that should be handled by a Yamaha dealer.
Maintenance Planning and Adjustment Limits
The periodic inspection and lubrication charts organize ongoing maintenance for the Autolube system, transmission, brakes, cables, wheel bearings, and drive chain. Yamaha explains that weather, terrain, humidity, and individual use can require changes to the listed schedule.
The owner's tool kit supports periodic maintenance and minor repair, with a torque wrench additionally required for properly tightening fasteners. Illustrated references include the shift pattern, chain-alignment marks, and headlight adjustment points.
Clutch and ignition limits: The clutch instructions cover lever free play; push-screw adjustment is assigned to the dealer. Contact-breaker guidance explains the relationship between point gap and ignition timing, but the timing check itself is also referred to the dealer rather than presented as an owner-performed calibration procedure.
Fuel Delivery and Starting Diagnosis
The troubleshooting chart separates fuel supply, compression, and ignition checks for poor starting or loss of power. Used alongside the maintenance instructions, it helps an owner distinguish a fuel-delivery problem from a compression or spark problem before arranging further repair.
Petcock and air filter: The fuel section describes filter-cup and screen cleaning, gasket inspection, and replacement of a damaged gasket. It warns that overtightening the filter cup can displace the gasket and cause a fuel leak.
The air-filter instructions cover removal, solvent cleaning, re-oiling, and correct seating of the foam element. Carburetor adjustment distinguishes air-screw settings by elevation and Canadian specification; Yamaha recommends dealer guidance when changing the setting.
Brakes, Chain Alignment, and Electrical Care
The front-brake sections distinguish the RD125/RD125B cable-operated adjustment from the RD125DX hydraulic system. For the DX, the manual explains fluid-level inspection and fluid compatibility, including how unsuitable fluid can damage rubber seals and cause leakage.
Chain and rear brake: Chain adjustment includes axle-alignment references and a final rear-brake adjustment. This connection matters when assessing the work involved: changing the rear-wheel position also requires checking brake-pedal play.
Battery instructions address electrolyte level, distilled-water replenishment, storage, terminal polarity, and the breather pipe. Headlight coverage explains horizontal and vertical aiming; replacement of the sealed-beam lens unit is referred to the dealer.
Because working on vintage motorcycle systems carries inherent physical risks, always verify torque specifications and wear appropriate protective equipment before handling mechanical components.
Selected Carburetor Adjustment Specifications
The carburetor section specifies throttle-wire play of 0.5–1.0 mm and an idle speed of 1,150–1,250 rpm after the engine has warmed up. These figures accompany the illustrated air-screw and throttle-stop references and show the adjustment detail provided for routine tuning.
