Yamaha Models Covered & Key Technical Specifications

Models: Bravo 250, Bravo 250 LT

Models & Model Codes:

BR250T — 8BD2

BR250TS — 8BC2

BR250TJ — 8Y1

BR250F — 8R4 (included base manual; engine model R246)

Sub-models / Variants: BR250TV

Model Years: 1989–2009 (1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)

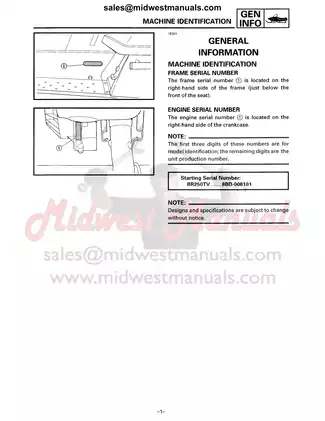

Serial Numbers: Starting frame and engine numbers: BR250T — 8BD-008101; BR250TS — 8BC-001101; BR250TJ — 8Y1-000101. BR250TV identification entry: 8BD-008101. BR250F base manual: frame — 8R4-000101; engine — R246-000101.


  • Engine: Air-cooled 2-stroke, single cylinder, 246 cc

  • Induction: Piston valve, KEIHIN BD32-28 carburetor

  • Transmission: V-belt automatic, centrifugal engagement

  • Ignition Timing: BR250T/TS — 16.5° BTDC @ 3,000 r/min; BR250TJ — 16° BTDC @ 5,500 r/min; BR250F base manual — 1.6 ± 0.1 mm BTDC

  • Fuel Capacity: 15 L (Main), 9.3 L (Sub; BR250T/TS supplement)

  • Spark Plug: NGK BR8HS (Gap: 0.6–0.7 mm)

  • Suspension: Front leaf spring, rear slide rail

  • Electrical System: 12V electrical system, flywheel magneto generator

Yamaha Manual Features & Selected Content Preview

Publication Pages

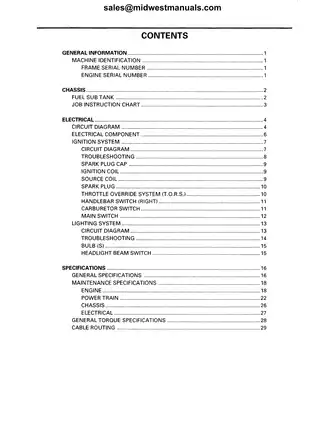

Yamaha BR250T/BR250TS Supplementary Service Manual, including BR250TV identification 33
Yamaha BR250TJ Supplementary Service Manual 41
Yamaha BR250F Base Service Manual, including the spark-plug condition chart 107

The base manual provides the engine, carburetor, drivetrain, and chassis repair procedures. The supplements add model-specific clutch work, T.O.R.S. diagnosis, electrical information, and specifications; match those sections to the machine’s model code before selecting service data.


Engine, Clutch and Ignition Service

  • Engine repair: Engine removal, top-end and crankcase disassembly, piston and crankshaft inspection, recoil-starter overhaul, and Autolube pump adjustment and bleeding.

  • Carburetion: KEIHIN BD32-28 disassembly, float inspection, cable adjustment, high-altitude tuning charts, and troubleshooting for starting, acceleration, and fuel-overflow problems.

  • Clutch and chain drive: Primary and secondary sheave service, bushing inspection, clutch tuning, V-belt wear checks, and chain-case disassembly and gearing information.

  • Brakes and running gear: Caliper-brake inspection and adjustment, slide rail removal, track alignment, drive-sprocket positioning, steering linkage service, and leaf-spring inspection.

  • Electrical diagnosis: Ignition and lighting circuit diagrams, coil measurements, switch-continuity checks, T.O.R.S. operating logic, and no-spark troubleshooting charts.

  • Service references: Model-specific torque tables, maintenance schedules, cable-routing drawings, exploded assembly views, and a fuel sub-tank removal chart.

This set is suited to mechanics familiar with two-stroke engines and equipped for clearance measurements, electrical testing, and clutch work with dedicated service tools.

Engine and Autolube Repair

The engine chapter covers internal inspection as well as removal and installation. It documents cylinder measurement, piston-to-cylinder clearance, ring inspection, connecting-rod play, and crankshaft runout, with torque references for the cylinder, crankcase, and flywheel magneto.

The BR250F base manual describes a one-piece cylinder and cylinder-head assembly. Its machining guidance addresses the risk of damaging the combustion chamber during boring or honing, so that construction detail matters when planning top-end work.

Recoil-starter drawings identify the spring and drive-pawl arrangement. Autolube coverage extends to the pump drive gear, minimum and maximum pump-stroke checks, adjustment shims, and bleeding after the lubrication system has been opened.

Carburetor Tuning and Fuel-System Service

The carburetion chapter connects symptoms such as hard starting, poor acceleration, and overflow with specific checks. Its Fuel Flow Chart explains which circuits contribute at different throttle openings, while the high-altitude charts relate jet selection to temperature and elevation.

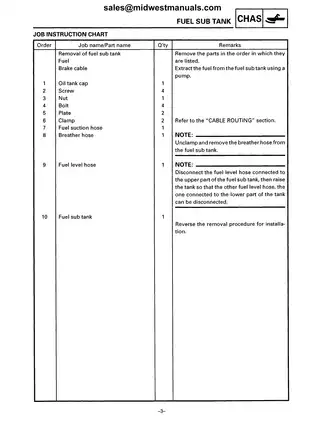

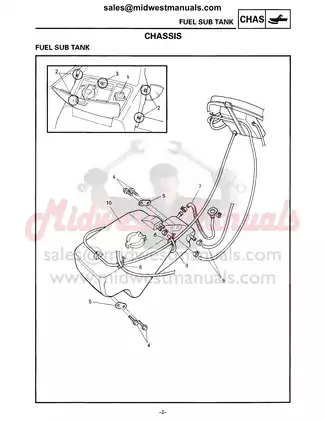

Starter, throttle, and oil-pump cable adjustments are documented alongside routing drawings. The supplement’s Fuel Sub Tank job instruction chart identifies the hoses, clamps, and mounting parts involved in removal.

Sheaves, Track and Chassis

The drivetrain sections distinguish clutch engagement from shifting behavior and provide spring, weight, and gearing references. Primary Sheave and Secondary Sheave exploded views support the teardown procedures, while Drive Axle drawings show sprocket positioning.

The BR250TJ supplement specifies a Clutch Spider Separator YS-28890-A and Clutch Separator Adapter YS-34480 for its primary-sheave work. It warns that the fixed sheave can crack during high-torque loosening or tightening; the tooling requirements are part of the procedure, not interchangeable with a generic puller.

Brake-pad inspection, caliper adjustment, slide-runner wear checks, suspension-wheel inspection, and ski service extend the coverage beyond the engine. Clutch and recoil-starter work involves preloaded springs; follow the manual’s handling precautions.

T.O.R.S. and Electrical Fault Tracing

The T.O.R.S. block diagram and switch-state tables explain how the throttle and carburetor switches affect ignition. Combined with the no-spark flowchart, they help distinguish switch or wiring faults from coil faults before the CDI unit becomes the replacement candidate.

The CDI diagnosis is by elimination after checking the associated components, rather than a standalone internal CDI bench test. Other references include pickup and source-coil resistance, ignition timing charts, lighting-circuit checks, and voltage-regulator testing.

The BR250T/TS supplement contains conflicting spark-plug listings between its electrical procedure and specification table. Confirm the correct application before choosing a replacement plug.

A Preview of Piston and Ring Inspection Data

For BR250T/TS, the maintenance specifications list piston-to-cylinder clearance of 0.045–0.050 mm. The piston measurement point is 10 mm above the skirt edge, giving the dimensional reference needed to interpret the clearance data.

The same table specifies an installed ring end gap of 0.2–0.4 mm for both the top and second rings. These entries accompany separate ring side-clearance limits and sectional drawings.

PDF Bookmarks, Diagram Detail and Page Count

Search, navigation and drawings: Technical page text is not searchable. Embedded bookmarks provide access to the base manual and supplements, although the “How to use this Manual” bookmark has no usable destination. Small wiring labels require zooming; some lines in the BR250TJ wiring diagram are faint.

The set is supplied as one printable, English-language, 182-page PDF. The total includes the three publications listed above and one additional introductory page.
