Yamaha WR400F(K) Owner’s Service Manual, 1998–2000 (P/N 5BF-28199-80)
578 Pages • 1 PDF (EN, FR, DE) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: WR400FK (5BF1: USA), WR400F (5BF2: EUROPE), WR400F (K) (5BF1: CDN, ZA; 5BF4: OCEANIA)
Model Years: 1998–2000 (1998, 1999, 2000)
-
Engine: Liquid-cooled 4-stroke, DOHC, 400 cc (399 cc displacement)
-
Bore x Stroke: 92.0 x 60.1 mm
-
Compression Ratio: 12.5:1
-
Transmission: 5-speed constant-mesh
-
Carburetor: KEIHIN FCR 39H
-
Lubrication: Dry sump
-
Front Suspension: Telescopic fork, 300 mm travel
-
Rear Suspension: Swingarm (link-type monocross), 315 mm rear wheel travel
-
Fuel Capacity: 12 L
Yamaha Manual Features & Selected Content Preview

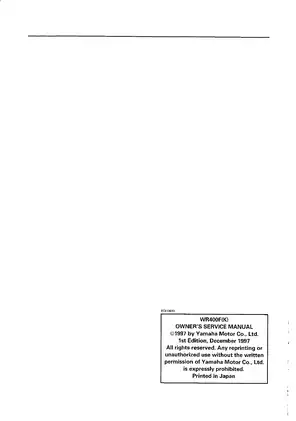

Yamaha’s WR400F(K) Owner’s Service Manual (P/N 5BF-28199-80) is the first edition dated December 1997. It covers operation, inspection, tuning, and mechanical repair for the 5BF1, 5BF2, and 5BF4 regional versions.
PDF Navigation, Languages, and Page Count
Search, bookmarks, and wiring labels: PDF text search is unavailable. Embedded bookmarks cover all seven chapters. The Clutch bookmark opens partway through that section. Small connector labels and wire codes are easier to read when zoomed in. English specification pages 2-3 and 2-4 are missing, and both pages are included in French and German.
The download contains one 578-page PDF in English, French, and German. The total includes 25 pages of front matter, 545 chapter content pages, five memo pages, two blank pages, and the back cover.
Engine, Chassis, and Electrical Service
These selected highlights show the range of workshop coverage. The manual also explains the decompression lever and covers cleaning and storage.
- Engine and transmission: Engine removal, crankcase separation, camshaft timing, valve service, piston inspection, clutch service, and checks of the gearbox, shift forks, and shift cam.
- Carburetor and ignition: Carburetor disassembly, throttle position sensor (TPS) inspection and adjustment, CDI magneto service, and ignition fault tracing.
- Cooling and lubrication: Radiator-cap testing, water-pump shaft and seal service, oil-pump rotor inspection, and oil-flow diagrams for the engine and transmission.
- Brakes and wheels: Master-cylinder and caliper disassembly, brake bleeding, disc inspection, wheel-bearing replacement, and steering-bearing service.
- Suspension and swingarm: Front-fork disassembly and inspection, linkage-bearing replacement, swingarm side-clearance adjustment, and rear-shock spring and mounting-bearing service.
- Tuning: Jet and needle selection, gearing changes through sprocket selection, and suspension adjustment charts organized by handling symptoms.
- Workshop illustrations: Wiring and cable-routing diagrams, exploded assemblies, job instruction charts, and sectional views.
Yamaha addresses owners in the operating and routine-maintenance sections. Internal engine work is suited to mechanics familiar with engine disassembly and the specified special tools.
Maintenance and Internal Engine Repair
The schedules organize checks by break-in, race use, and mileage. The starting and break-in section skips printed pages 1-13 and 1-15, and the routine-service section skips pages 3-9 and 3-11.
Engine work extends to valve-guide replacement, valve-seat lapping, and valve-lifter shim selection. The manual identifies crankcase separating tool YU-01135-A / 90890-01135 and explains how uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts.
Clutch inspection covers friction-plate thickness, plate warpage, and spring wear. Printed page 4-60 is missing from the kick-axle and shift-shaft section.
Carburetor Settings and Electrical Diagnosis
Float-height measurement and TPS resistance checks accompany the carburetor procedures. Tuning charts relate throttle opening, atmospheric conditions, and running symptoms to jet and needle selection. Parts of the English and German carburetor assembly text are cropped around printed page 4-12.
The map-controlled CDI section explains how throttle position and engine speed affect ignition timing. The no-spark flowchart helps isolate faults in connections, switches, coils, and the TPS before replacing the CDI unit. A separate lighting flowchart covers the lamps, switch, lighting coil, and regulator.
Fork, Linkage, and Brake Service
The fork procedures cover disassembly, inspection, and parts of reassembly. Printed assembly and installation pages 5-35 and 5-39 are missing. Yamaha recommends dealer service for the fork and warns that a dropped damper rod can damage the internal valve.
Swingarm coverage includes bearings, bushings, and side-clearance shims. Brake procedures include piston and seal inspection. Rear-shock coverage extends to removal, spring replacement, and mounting-bearing service. Yamaha warns against opening the pressurized nitrogen cylinder or reservoir and reserves gas discharge for dealers.
Examples of Valve-Train, Drive, and Cooling Data
For valve service, the manual gives cold clearances of 0.15–0.20 mm intake and 0.25–0.30 mm exhaust, plus a camshaft runout limit of 0.03 mm. The torque table lists 10 Nm for the camshaft-cap bolts and 7 Nm for the M6 × 1.0 cylinder-head stud bolts.
The transmission specifications give a primary reduction ratio of 62/21 (2.952). The cooling specifications list 1.15 L of coolant capacity for the full circuit.
