Yamaha XT225-C / TTR225L/M Service Manual Set, 1999–2004 (P/N LIT-11616-TT-25)
414 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Models: XT225-C, TTR225L, TTR225M, XT225H, XT225HC, XT225D, XT225DC
Models & Model Codes:
TTR225L — 5FG1 (USA Except California), 5FG3 (Canada)
TTR225M — 5FG4 (USA Except California)
XT225H — 4BED (USA Except California), 4BEF (Canada)
XT225HC — 4BEE (USA For California)
XT225D — 4BE1 (USA Except California), 4BE3 (Canada)
XT225DC — 4BE2 (USA For California)
Sub-models / Variants: USA (Except California), USA (For California), Canada, TTR225LC (5FG2), TTR225MC (5FG5)
Model Years: 1999–2004 (1999, 2000, 2001, 2002, 2003, 2004)

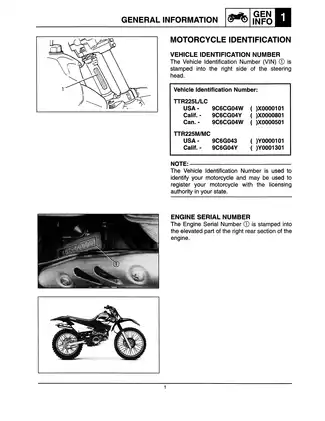

VIN Identifiers: Positions 1–8 identify TTR225L USA/Canada as 9C6CG04W and TTR225LC California as 9C6CG04Y.
Serial Numbers:
XT225D (USA Except California) — starting VIN JYA4BEE0*NA000101; starting engine serial number 4BE-000101
XT225DC (USA For California) — starting VIN JYA4BEC0*NA013101; starting engine serial number 4BE-013101
XT225D (Canada) — starting VIN JYA4BEN0*NA010101; starting engine serial number 4BE-010101
XT225H (USA Except California) — starting VIN JYA4BEE0*TA035101; starting engine serial number 4BE-035101
XT225HC (USA For California) — starting VIN JYA4BEC0*TA040101; starting engine serial number 4BE-040101
XT225H (Canada) — starting VIN JYA4BEN0*TA042101; starting engine serial number 4BE-042101
-
Engine displacement: 223.21 cm³
-
Engine type: Air-cooled 4-stroke, SOHC, single cylinder
-
Transmission type: Constant mesh 6-speed
-
Fuel system: Mikuni BST34 carburetor
-
Starting system: Electric
-
Front suspension: Telescopic fork, 225 mm travel (TTR225L/LC, M/MC; XT225D/DC)
-
Rear suspension: Swingarm, monocross, 190 mm travel
-
Brake system: Single front disc, rear drum brake
-
Battery capacity: 12V 7Ah (TTR225L/LC, M/MC); 12V 6Ah (XT225D/DC)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| TTR225L/LC, M/MC Supplementary Service Manual, October 1999 (P/N LIT-11616-TT-25), including the set’s front and back covers | 29 |
| XT225H/XT225HC Supplementary Service Manual, May 1995 (P/N LIT-11616-10-05) | 19 |
| XT225D/XT225DC Service Manual, June 1991; manual reference 4BE-28197-20 | 366 |

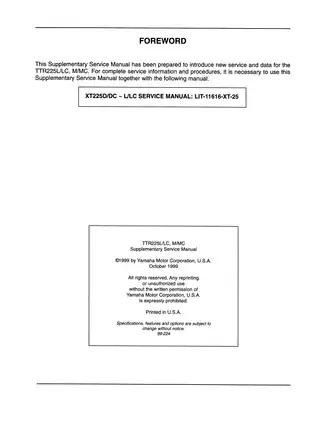

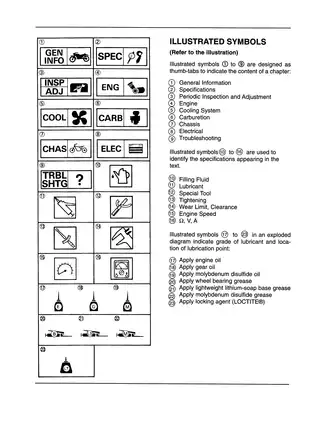

The supplements update the base manual’s procedures and specifications rather than repeat every repair. Their forewords require them to be used with the applicable XT225 service manual.
Coverage note: The TTR supplement references the XT225D/DC–L/LC Service Manual, LIT-11616-XT-25. This compilation contains the XT225D/DC base manual and XT225H/HC supplement; a separate XT225L/LC supplement is not included.
PDF Bookmarks and Readability
Search, navigation and page detail: PDF text search is not available. Embedded bookmarks cover the publications and major service sections, although “Return to main index” has no usable local destination. Small wiring labels require zooming. A large portion of PDF p. 171, covering rotor removal, is obscured and unreadable.
The ZIP download contains one printable English PDF with 414 pages total, including two cover pages and four pages carrying only chapter headings.
Engine Overhaul, Chassis Service and Electrical Fault Tracing
The following selected service topics outline the repair coverage. Other included subjects include California evaporative-emission hose routing and headlight adjustment.
-
Engine overhaul: Step-by-step disassembly and assembly procedures, cylinder-head repair, valve-guide replacement, piston inspection, crankshaft installation and balancer alignment.
-
Clutch and transmission: Friction-plate inspection, clutch-release adjustment, gearbox disassembly, shift-fork checks and transmission operation checks during reassembly.
-
Carburetor service: Removal, cleaning, diaphragm and coasting-enricher inspection, reassembly, float-height measurement and fuel-level adjustment.
-
Brakes and wheels: Front-caliper and master-cylinder service, hydraulic bleeding, rear brake-shoe inspection, wheel-bearing replacement and rim-runout checks.
-
Suspension and steering: Fork disassembly and seal replacement, steering-bearing service, rear-shock inspection, swingarm side-clearance adjustment and drive-chain service.
-
Electrical diagnosis: Ignition, starting, charging, lighting and signal-system troubleshooting, with circuit diagrams, switch-continuity checks and starter-motor repair.
-
Maintenance checks: Valve-clearance adjustment, compression testing, oil-pressure inspection and service schedules, supported by torque tables and component wear limits.

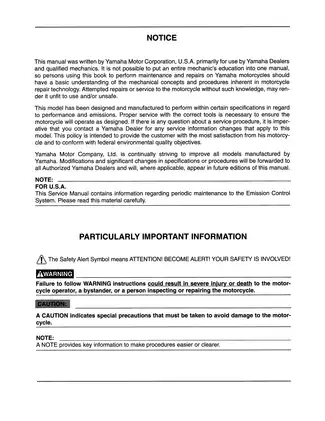

Written primarily for Yamaha dealers and qualified mechanics, these publications assume a basic understanding of mechanical repair and the use of the specified workshop tools.
Engine Repair and Assembly Checks
Cylinder-head coverage extends to valve-seat refacing and lapping, guide replacement and rocker-arm inspection. Torque tables, clearance checks and exploded views provide the mechanical baseline for assessing parts during overhaul.
The assembly section includes crankshaft oil-passage alignment, clutch-plate arrangement and camshaft timing. A specific caution explains that crankshaft movement during camshaft installation can cause damage or incorrect valve timing.
Special-tool references include the crankcase separating tool YU-01135-A and valve spring compressor YM-04019. The Lubrication Diagram shows oil distribution through the engine.
Carburetor and Model-Specific Updates
The Carburetor Sectional View explains the vacuum-operated piston valve and coasting enricher. Regional jetting tables distinguish the U.S., California and Canadian configurations.
The TTR supplement supplies its own carburetor identification and settings, plus revised wheel, rear-brake, chain and electrical data. Keeping these updates alongside the base procedures helps prevent XT225 specifications from being applied indiscriminately to TTR components.
Chassis Service and Rear-Shock Limits
Fork instructions cover bushings, seals and oil-level measurement. The XT225H/HC and TTR supplements revise fork specifications, while the swingarm section explains side-clearance measurement and shim selection.
Rear-shock coverage includes adjustment, removal, inspection and assembly replacement. The shock contains pressurized nitrogen, and the cylinder must not be opened.
Electrical Tests and Circuit Operation
The XT225D/DC Circuit Diagram, Ignition Control Circuit Operation and Starting Circuit Operation illustrations show how the switches and relays interact. Pass/fail charts connect no-spark, no-crank and charging complaints to component tests, helping distinguish an interlock fault from a failed ignition or charging component.
The TTR supplement provides a separate wiring diagram and revised charge-coil and pulser-coil tests. A relay-testing caution identifies reversed battery connections as a cause of diode damage.
Valve-Clearance and Cylinder-Head Torque Examples
For TTR225L/LC and M/MC, the cold valve-clearance specifications are 0.05–0.09 mm for the intake and 0.15–0.19 mm for the exhaust.
The XT225H/HC torque table lists 22 Nm for the M8 cylinder-head and cylinder flange bolts, with oil applied to the washers. Separate entries distinguish these fasteners from the other cylinder-head bolts.
