1978–1982 Yamaha IT250 / IT465H Owner's Service Manual (P/N 5L4-28199-20)

• The PDF set contains two Yamaha owner’s service publications: the 73-page IT250H/IT465H manual, P/N 5L4-28199-20, first edition December 1980, and the 96-page bilingual IT490(L)/IT250(L) manual, P/N 29V-28199-70, first edition July 1983.
• Covers carburetor removal, inspection, jetting, and reassembly; Yamaha Energy Induction System (Y.E.I.S.) and reed-valve service; muffler and top-end repair; piston and ring inspection; clutch, kickstarter, shifter, crankcase, crankshaft, and internal transmission work.
• Details wheel and sprocket repair, brake inspection and adjustment, steering-head bearing service, front-fork disassembly and seal replacement, Monocross “De Carbon” rear-shock and linkage work, swingarm service, and dedicated H-series suspension tuning.
• Provides four model-specific wiring diagrams, electrical component-location and cable-routing views, CDI ignition testing, lighting and charging diagnosis, battery checks, and troubleshooting charts for starting, high-speed performance, overheating, transmission, clutch, chassis, and lighting faults.
• Includes Yamaha special-tool charts with part numbers, exploded and section views, component-specific torque tables, wear limits, clearances, capacities, carburetor and ignition settings, suspension data, and electrical test specifications.

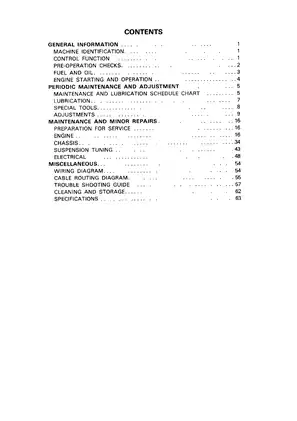

Manual Content Summary

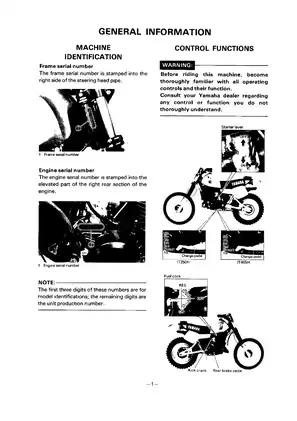

The model-identification tables define the actual machine coverage. The H-series publication identifies the IT250H as model code 5L4, with frame and engine numbers beginning at 5L4-000101, and the IT465H as 5L5, beginning at 5L5-000101. The L-series volume covers IT250(L) codes 29V and 45J, beginning at 29V-003101 and 45J-000101, together with IT490(L) codes 29W and 45K, beginning at 29W-003101 and 45K-000101. Its front matter also distinguishes the 45J and 45K variants, which are not equipped with flashers, a brake light, a main switch, or a battery.

Both manuals extend from routine owner checks into component repair. Engine coverage follows the assemblies from intake to transmission: carburetor disassembly and float/jet inspection, Y.E.I.S. chamber and reed-valve checks, exhaust service, cylinder-head and cylinder removal, piston and ring inspection, clutch repair, kickstarter and shift-mechanism service, crankcase separation, crankshaft installation, and transmission inspection and reassembly. The L-series specifications keep the IT490(L) five-speed and IT250(L) six-speed transmission data separate, while the H-series tables distinguish the 250 and 465 engine, carburetor, clutch, ignition, and suspension configurations.

Chassis sections cover front and rear wheel assemblies, sprockets, drive-chain alignment, brake drums and shoes, steering-head bearings, front forks, rear suspension, and swingarm pivots. The H-series manual adds a dedicated suspension-tuning section for fork and rear-shock spring and damping changes. The L-series volume documents fork overhaul, steering-head repair, De Carbon rear-shock removal, inspection and external adjustment, plus swingarm and relay-arm work. Detailed L-series suspension tuning is referred to Yamaha’s separate Race Preparation and Tuning Manual.

Electrical content is organized for fault isolation rather than simple component identification. Along with IT250H, IT465H, IT250(L), and IT490(L) wiring schematics, the set supplies electrical component-location drawings, cable-routing diagrams, ignition-timing references, CDI pulser and source-coil tests, lighting checks, charging-system tests, and battery procedures. The troubleshooting tables separate ignition, compression, and air/fuel causes for hard starting and poor high-speed operation, then continue through overheating, gear selection, clutch slip or drag, steering, wheels, brakes, and headlight/taillight complaints.

Representative technical drawings include carburetor and Y.E.I.S. layouts, cylinder and piston exploded views, clutch and transmission assemblies, crankcase separation and installation drawings, front-fork section views, and Monocross rear-shock and linkage diagrams. These are supported by the wiring and cable-routing schematics rather than presented as isolated illustrations.

Specification and Technical Preview

The tool sections identify factory equipment used for major repair work. The H-series publication lists the flywheel holding tool 90890-01235, flywheel puller 90890-01189, crankcase separating tool 90890-01135, crankshaft setting tools, steering nut wrench 90890-01051, dial gauge set 90890-01252, and timing light 90890-03109. The L-series manual adds a Yamaha pocket tester 90890-03112, crankshaft installing tools, a fork-cylinder holder and adapter, fork seal/bushing service tools, and a drive-chain cutter.

Factory data is grouped by model and assembly. Mechanics can reference carburetor jetting and float specifications, ignition timing, cylinder and piston inspection limits, ring clearances, clutch and transmission limits, fork and shock settings, wheel and brake limits, electrical resistance and output tests, capacities, lubrication points, and engine/chassis tightening torque tables. The values remain separated where the 250, 465, and 490 configurations differ.

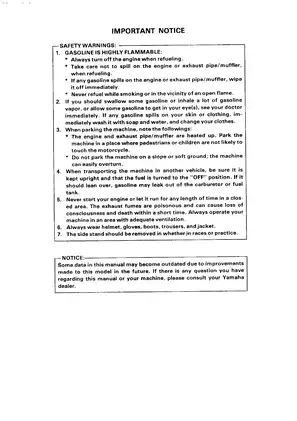

Several cautions are especially important during repair. The top-end section warns against hammering the piston pin because the connecting rod, piston, and bearing can be damaged. During crankcase separation, the cases must move apart evenly, and tapping on gasket or machined surfaces can ruin the sealing faces. The L-series De Carbon shock contains high-pressure gas; its cylinder and reservoir must not be opened and are not covered as an internal rebuild procedure. Support the motorcycle securely and follow the publications’ fuel, battery, spring, and pressurized-suspension warnings before engine, chassis, or electrical work.
