1992 John Deere 210C, 310C, 315C Backhoe Loader Operation and Test Manual (P/N TM1419)

John Deere's TM1419 Operation and Test Technical Manual, dated January 28, 1992, covers the 210C, 310C, and 315C Backhoe Loader series, including the 210C landscape-loader configuration and applicable MFWD equipment.

Supplied as one 487-page PDF in English.

• Engine diagnostics: Operational checks, cooling-system and intake-leak tests, injection-pump static timing, speed-control adjustments, radiator airflow testing, and turbocharger boost-pressure testing.

• Electrical troubleshooting: Starting, charging, gauge, display-module, logic-module, warning, and clutch-disconnect circuit checks, with wiring diagrams and electrical test specifications.

• Power train: Torque converter stall tests, reverser pressure and flow tests, transaxle troubleshooting, and MFWD limited-slip differential checks.

• Brakes and steering: Wet-disk brake bleeding, service-brake and park-brake adjustments, brake-valve leakage testing, steering checks, and toe-in adjustment.

• Loader and backhoe hydraulics: Main-pump flow testing, steering priority-valve checks, circuit-relief tests, cylinder leakage and drift tests, and 315C side-shift valve diagnosis.

• Three-point hitch: Valve operation, pressure testing, leakage diagnosis, and relief-valve tests for the optional hitch system.

Written for experienced technicians, this manual assumes familiarity with machine service and the diagnostic equipment identified for individual tests.

System Diagnostics and Testing

The content focuses on theory of operation, system checks, troubleshooting, adjustments, and tests. The initial operational checkout uses OK/NOT OK decisions to direct the technician to the relevant diagnostic group or component manual.

Repair coverage: Full machine repair is covered separately in TM1420. The manual also calls for CTM4 for the 4239 engine, CTM8 for the 4039 engine, and CTM11 for engine accessories; these publications are not included.

Before conducting any operational checks or diagnostic sequences described in this guide, verify machine stability and follow the manual's safety precautions for raised equipment and pressurized hydraulics.

Engine Checks and Adjustments

The engine sections provide theory of operation and system check procedures for the 4039 and 4239 engine series, supported by engine sectional views. Cooling, lubrication, fuel-system, and exhaust-smoke checks accompany symptom-based diagnosis of starting problems, overheating, and low power.

The 210C idle specifications distinguish engine serial numbers through 300360 and from 300361 onward. Injection-pump static timing identifies the JDE83 flywheel turning tool and JDE-81-4 timing pin; the boost-pressure procedure applies to the 310C and 315C.

Electrical Circuits and Serial Differences

Charging-system coverage distinguishes the 65-amp Motorola alternator through S/N 766921 from the 78-amp Delco Remy alternator from S/N 766922. Matching display-module and logic-module circuit versions are included.

Starting Circuit Wiring Diagrams and Display Module and Logic Module Schematics accompany connector identification and circuit test points. These references help trace a fault through the applicable wiring before electrical repair.

The electrical diagrams cover individual circuits. The separate whole-machine foldout wiring sheet referenced in the printed manual is not included in this PDF.

Power Train and Brake Diagnosis

Reverser oil-flow diagrams explain neutral, forward, reverse, and clutch-disconnect operation. The four-gauge leakage test and complete reverser test chart help distinguish clutch-circuit leakage from pump, converter, and cooler problems before repair.

Coverage includes APL 1552 and APL 735 MFWD axles, limited-slip differentials, transaxle synchronizers, and planetary final-drive fault diagnosis. Service-brake adjustment distinguishes machines through S/N 747741 from those starting at 747742 and identifies the JDG644 adjusting tool.

The stall-test instructions warn that prolonged stalling can damage the torque converter.

Hydraulic Variants and Test Coverage

For the 310C and 315C, hydraulic schematics and component-location views distinguish Gresen loader/Cessna backhoe valves through S/N 738468 from Husco valves from S/N 738469. Main-relief specifications also distinguish later settings from S/N 752245; the 210C has its own change at S/N 742527.

Vickers and Sundstrand/Sauer pumps have separate flow and relief-test specifications. Stabilizer-valve operation distinguishes Cessna units through S/N 760495 from Eaton units starting at 760496.

Three-point hitch coverage includes hydraulic routing with the backhoe removed and for loader/utility configurations. The loader-valve leakage section warns that relief valves installed in incorrect ports can cause structural damage.

Technical Specification Highlights

Reference material includes fluid capacities, lubricant specifications, metric and inch torque tables, electrical test values, hydraulic pressure and cycle-time specifications, engine bore and stroke data, and loader, backhoe, and steering cylinder dimensions. Backhoe lifting-capacity charts distinguish standard and extendible dippersticks.

PDF Navigation and Diagram Readability

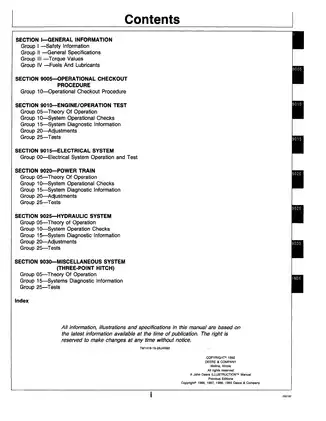

The total includes the original front and back covers, introduction, contents, index, and 27 pages without technical content beyond headers or footers; no separate supplements are supplied. Embedded bookmarks provide section and test navigation, but text search is limited by substantial OCR errors and gaps. Small wiring labels and connector numbers require zooming.
