Yamaha XS1100 Fours 1978–1981 Repair Manual Set (P/N Clymer M411)
459 Pages • ZIP Download: 4 Printable PDFs • 165.19 MB
Yamaha Models Covered & Key Technical Specifications
Model: XS1100 Fours
Sub-models / Variants: Model E, Model F, Model G, Model H (model and engine code 4R1), Model SF, Model SG, Model SH (engine code 4R0), Special; Model LG and Model LH (specification references only)
Model Years: 1978–1981 (1978, 1979), 1980)
Initial engine / frame numbers: XS1100H: 4R1-000101 / 4R1-000101
-
Engine type: Air-cooled, 4-stroke, DOHC, 4-cylinder
-
Displacement: 1,102 cc
-
Compression ratio: 9.2:1 (E, F, SF); 9.0:1 (G, H, SG, SH, LG, LH)
-
Transmission: 5-speed constant-mesh
-
Wheelbase: 60.8 in (1,545 mm)
-
Compression pressure: 142 psi (10 kg/cm²)
-
Spark plug: NGK BP-6ES or Champion N-8Y
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

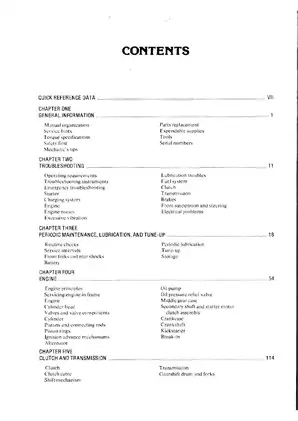

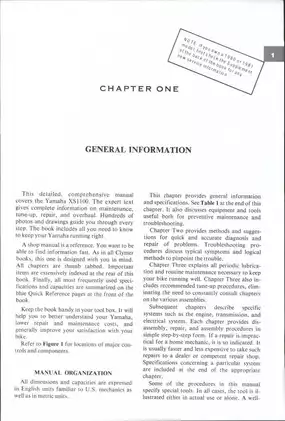

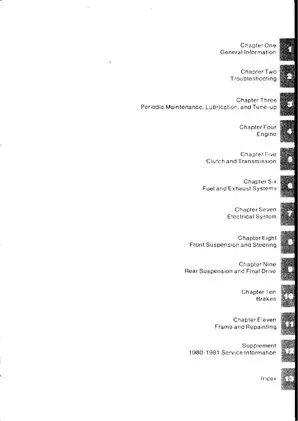

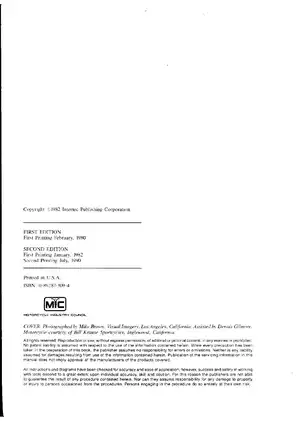

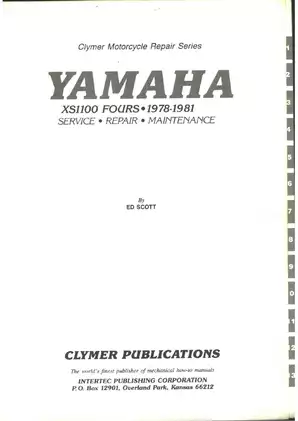

| Clymer Yamaha XS1100 Fours Service, Repair & Maintenance — 1978–1981 E, F, G, H, SF, SG and SH; P/N Clymer M411; second edition (1982), July 1990 printing; 11 chapters plus a 1980–1981 service-information supplement | 285 |
| Yamaha XS1100H/SH Owner’s Manual — P/N 4R0-28199-10 | 53 |
| Illustrated parts reference — numbered exploded views without part-number tables | 47 |
| XS1100 parts and service-data compilation — includes XS1100H model 4R1 data, bulletin M80-077, and model-specific notices | 74 |
Use the independent Clymer manual for repair procedures, the owner’s manual for operation and routine checks, and the parts references for assembly identification.
The owner’s manual omits the original stopping-distance and acceleration/passing-performance pages. Individual service sheets and notices retain their own model applicability.
PDF Search, Bookmarks and Wiring Detail
Finding text and diagram details: The technical pages do not support PDF text search. Only the parts-and-service-data compilation has embedded bookmarks, linking to assembly sections and service data. Small wiring labels in the repair and owner’s manuals require zooming.
The ZIP contains four printable PDFs totaling 459 pages. This includes covers and front matter, the Clymer manual’s 20-page supplement, two maintenance-log pages and six color wiring pages, the compilation’s inserted notices and service data, and the owner’s manual’s final blank page.
Engine Overhaul, Fuel Diagnosis and Chassis Service
This selected content overview highlights major workshop sections. Other topics include wheel balancing, storage preparation and frame repainting.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head and valvetrain service, camshaft timing, crankcase separation, and crankshaft-bearing inspection.
-
Clutch and transmission: Wet-clutch and five-speed transmission service, including gear, shift-fork and shift-cam inspection.
-
Fuel system: Mikuni constant-vacuum carburetor overhaul and synchronization, plus vacuum-operated fuel-shutoff testing.
-
Electrical diagnosis: Transistorized ignition, charging and starting-system tests, supported by model-specific color wiring diagrams.
-
Suspension and brakes: Conventional and air/oil fork service, steering-head bearings, master-cylinder overhaul, brake-pad replacement and hydraulic bleeding.
-
Owner’s and parts references: Controls, pre-ride checks, maintenance schedules and minor service, with exploded views and separate part-number listings.
The Clymer instructions suit owners who are comfortable with tools; major engine work also requires precise measuring skills and appropriate workshop equipment.
Internal Engine Work and Bearing Selection
In-frame service and engine-out repairs are identified separately, so you can judge the required disassembly before beginning. Internal repair sections include piston and ring inspections, connecting-rod and main-bearing clearance measurements, and bearing selection by color code.
Dedicated sections cover the oil pump, pressure relief valve, Hy-Vo primary chain, secondary shaft and starter clutch. Torque tables, fluid capacities, wear limits and electrical specifications are organized with the relevant service sections.
The valve-adjustment section calls for Yamaha tool 90890-01245 and warns that cam-lobe contact with this tool can fracture the cylinder head.
Carburetor and Ignition Changes
The supplement distinguishes early Mikuni BS34-II carburetors from later BS34-III versions, including different jetting for inner and outer cylinders. The 1980 float-height procedure and 1981 fuel-level check use different measurement references.
Year-specific ignition instructions explain the shear-head mounting bolts on the 1980 advance unit and the fixed timing arrangement for 1981. For XS1100H work, the supplement also covers oil-cooler connections and access involving the fairing and saddlebags.
Electrical Fault-Finding and Illustrations
Electrical testing covers alternator field and stator coils, the regulator/rectifier, ignition coils and pickups. The Starter Troubleshooting chart separates starting faults, while Reserve Lighting System (Special Models) explains the headlight backup circuit.
Illustrations such as Engine Oil Flow, Clutch Components and Front Fork Assembly support component identification. The fork view distinguishes conventional and air/oil construction; the owner’s manual adds separate H and SH wiring diagrams.
Shaft Drive, Suspension and Brake Limits
The rear chassis sections cover swingarm removal, bearing service and side-clearance adjustment. Drive-unit removal and refitting include external wear and leakage inspections.
Internal middle-gear and final-drive overhaul is assigned to dealers with the necessary equipment. Caliper rebuilding is also referred to a dealer or brake specialist.
A notice for XS1100H/LH/SH explains the change from a double-row drive-axle bearing to a single-row bearing with a directional collar. Incorrect collar orientation can damage the crankcase when the bearing is installed.
Engine-handling precautions and warnings about stored air pressure in the forks accompany the service instructions.
Examples of Electrical Test and Fuel-Level Data
The alternator test section specifies 3.5 ohms ±10% for the field coil, brown-to-green, and 0.4 ohms ±10% between stator white leads, both at 68°F (20°C).
For 1981 carburetors, the fuel-level check specifies 3 ±1 mm below the float bowl’s top surface, with the assembly exactly level and the engine having run for 2–3 minutes.
