1978 Mooney M20J Precision Pilot's Operating Handbook & Flight Manual
Aircraft systems, engine limits, and emergency procedures for Mooney M20J models with full performance charts, weight and balance data, and detailed maintenance instructions.
Manual Preview

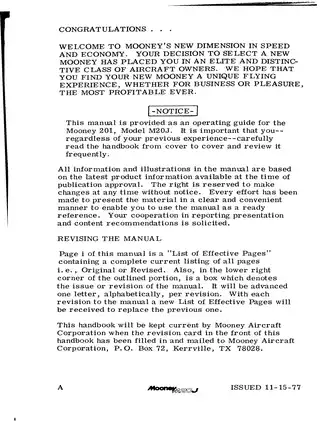

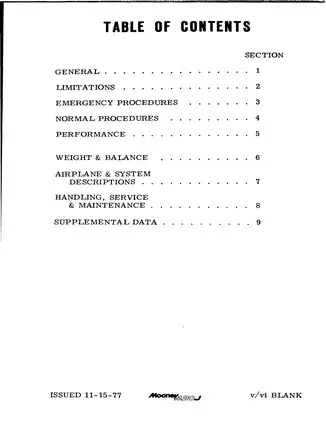

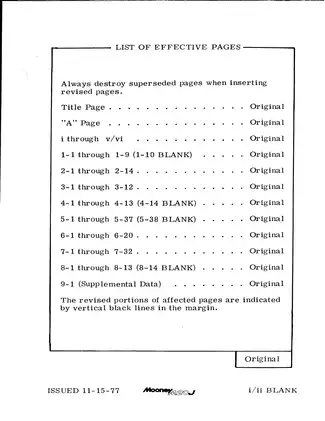

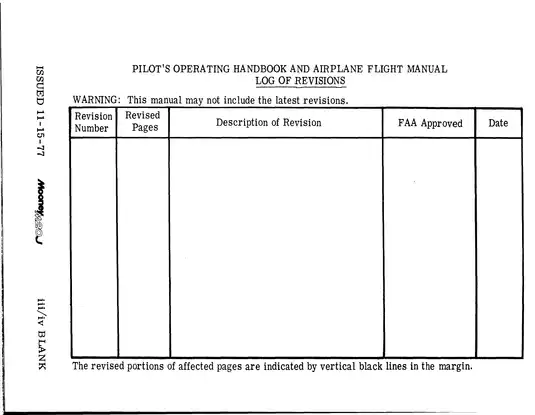

Sample pages from the 1978 Mooney M20J Precision Pilot's Operating Handbook & Flight Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Mooney M20J — 1978 Licensed Directory for Aircraft Repository.
- System Fill Levels: Engine oil capacity is standardized to 8 quarts (7.6 liters) representing the maximum engine sump volume Benchmarks.
- Maximum Holding Capacity: For operational fuel range, 64 U.S. gallons determines the usable fuel capacity Sequence.
- Measured Interference Fit: Propeller diameter is calibrated to 74 inches (188 cm) maximum at the blade tip Range.
- Critical Thermal Envelope: The cylinder head temperature is rated at 475°F (246°C) for maximum continuous operation Baseline.
- Universal Size Parameters: Gross maximum takeoff weight achieves 2740 pounds (1243 kg) structural limit Requirement.
- Technical Volume Data: Engine displacement corresponds to 361.0 cubic inches (5916 cc) cylinder volume Threshold.
Professional Workshop Service Manual & Technical Specifications
OEM-Grade Quality Overhaul Manual: Aircraft Mooney M20J 1978 - Precision Pilot's Operating Handbook & Flight Manual Wiring-Compendium
Serial-Range: Mooney M20J (1978) // Engineering-Metrics: Aircraft Systems Documentation / Flight Operations & Control Systems Logic // Serial-Range: Complete FAA-approved operational framework with 156-page technical specifications.
| Component | Value | Calibration-Spec |
|---|---|---|
| Engine Type | Four-cylinder, horizontally opposed, fuel-injected | IO-360-A3B6D specifications documented |
| Fuel Capacity | 64 U.S. gallons usable | Tank configuration and system data included |
| Landing Gear | Electrically operated tricycle with hydraulic disc brakes | Retraction and emergency extension procedures documented |
| Propeller | Constant-speed, hydraulically controlled | McCauley B2D34C214/90DHB-16E specifications included |
| Gross Weight | 2740 lbs maximum certificated | Loading envelope and weight limits documented |
Technical content addresses engine systems and fuel management, flight control surfaces and trim mechanisms, emergency procedures and gear operation, landing and takeoff performance data, and weight and balance calculation methods for safe aircraft loading schedules. The documentation outlines airframe construction featuring welded tubular-steel cabin structure and stressed-skin aluminum construction, electrical power systems supplied by alternator and battery configuration, and vacuum-operated flight instruments requiring proper system maintenance.
Advanced Benchmarks
Service procedures are documented for engine cooling systems, including cowl flap operation and oil circulation management through bypass valve control routing. Calibration requirements are specified for all airspeed indicator markings corresponding to certification conditions, with separate data provided for normal and alternate static source configurations. The manual includes comprehensive reference tables detailing stall speeds across various weight distributions and flap configurations, ensuring pilots can reference accurate recovery parameters at any aircraft loading condition.
Strategic Standard
Electrical system documentation covers alternator field excitation circuits, voltage regulator operation maintaining constant output levels, and circuit breaker architecture protecting all main bus bar systems. Suspension service documentation covers landing gear retraction timing requirements relative to airspeed safety interlocks, manual emergency extension procedures using pull-cord mechanisms, and hydraulic brake system maintenance including fluid specification requirements conforming to MIL-H-5606 standards.
Modular Standard
Disassembly instructions are documented for induction air filter element cleaning procedures using compressed air methods not exceeding 100 PSI pressure, detailed propeller blade inspection protocols identifying stress concentration areas from manufacturing tolerances, and battery service access procedures via tailcone panel removal. The document provides systematic references for fuel system component locations including selector valve positioning, gascolator drain ring operation, and sump sampling techniques to detect contamination before flight operations commence.
Technical Sequences
Methodically requiring pilot understanding of annunciator panel warning light functions, including gear safety indicators illuminating when landing gear position deviates from full extension or retraction states, fuel quantity low warnings activating at 2.5 to 3 gallon thresholds, and vacuum malfunction indicators displaying system pressure variations outside the 3.5 to 5.5 inch mercury operating range. Performance data encompasses takeoff distance computations at maximum gross weight across multiple pressure altitudes and temperature conditions, climb performance charts correlating rate-of-climb against gross weight and density altitude variables, and cruise range tables accounting for fuel consumption rates at economy and best-power mixture settings.
Precise Nexus
The manual documents torque specifications for landing gear attachment bolts to ensure proper structural integrity and safe extension sequences during flight operations. Center-of-gravity limit envelopes establish moment calculation procedures preventing loading configurations outside approved aircraft balance parameters, with detailed formulas for computing arm distances and moment values using reference datum station zero located aft of nose gear attachment points. Specifications reference cylinder head temperature limits at 475 degrees Fahrenheit maximum continuous operation, oil pressure operating ranges from 60 to 90 PSI in normal cruise configuration, and fuel pressure maintenance between 14 and 30 PSI throughout all flight regimes.
The framework represents complete documentation of the Mooney M20J aircraft systems, operational procedures, and structural parameters as established by Federal Aviation Administration certification standards effective November 15, 1977. System descriptions address primary flight control actuation using push-pull tube mechanisms with self-aligning rod end bearings, trim control architecture featuring empennage pivot design permitting angle-of-attack adjustment with minimal control surface deflection, and wing flap actuation utilizing electrically-powered wide-span configuration with position indication through mechanical cable drive systems. Logical narrative structure progresses through certification limitations, normal operating procedures, emergency response protocols, performance prediction charts, loading calculation methodology, system component descriptions, and maintenance scheduling recommendations aligned with FAA preventive maintenance regulations and manufacturer service bulletins.
