Kenmore Models Covered & Key Technical Specifications

Model: 385.19233

Sub-models / Variants: 385.19233XXX (where XXX represents numeric variants 000–999)

Model Years: 2000s (2000, 2001, 2002, 2003, 2004, 2005 2006, 2007, 2008, 2009)


  • Sewing speed (Maximum): Over 820 s.p.m.

  • Stitch length (Maximum): 5 mm

  • Stitch width (Maximum): 7 mm

  • Stitch package: 215 total stitch functions (167 built-in stitches)

  • Buttonhole type: 1-step automatic built-in buttonhole

  • Machine dimensions (W x D x H): 16.4 in x 11.6 in x 7.4 in (410 mm x 185 mm x 290 mm)

  • Net weight: 18.7 lbs (8.5 kg)

Kenmore Manual Features & Selected Content Preview

Sears/Kenmore owner's manual P/N 842-800-079 covers the 385.19233XXX series, with XXX representing numeric suffixes 000 through 999. It identifies the matching YC-542 foot controller and includes instructions in English, Spanish, and French. This is an operating and care manual; its safety instructions refer electrical or mechanical repair to a service center.

PDF Search and Page Arrangement

Text search and navigation: Embedded OCR supports text searches throughout the file, although recognition errors can affect individual words. There are no embedded PDF bookmarks.

The download is one printable 393-page PDF containing the same 131-page manual three times. Each copy includes 19 cover and preliminary pages, 111 body pages—including one blank page—and one back-cover page. These pages are already included in the total.


Machine Setup, Stitch Programming, and Sewing Techniques

The following selected topics show the manual's scope rather than reproduce its full contents. Further examples include eyelet sewing and removing the extension table for free-arm work.

  • Machine setup: Power and foot-control connections, bobbin winding and insertion, upper threading, needle-threader use, needle changes, presser-foot replacement, and straight- and zigzag-stitch tension adjustment.

  • Computerized controls: LCD indications, direct and numbered pattern selection, operating modes, needle up/down control, auto-lock, reverse stitching, language selection, and memory editing.

  • Garment sewing: Automatic and specialty buttonholes, zipper insertion, blind hemming, button sewing, overcasting, darning, bartacking, and heavy-fabric seam starts.

  • Decorative work: Quilting, applique, patchwork, smocking, fagoting, scallops, pintucks, twin-needle sewing, monograms, and programmed stitch combinations.

  • Care and troubleshooting: Hook-race and feed-dog cleaning, bobbin-holder reassembly, light-bulb replacement, accessory identification, and symptom-based checks for sewing and running problems.

This illustrated owner's manual is suited to 385.19233-series owners who are comfortable following machine-setup and sewing procedures.

Machine Setup and Computerized Controls

The setup section covers the horizontal and auxiliary spool pins, drop-in bobbin, threading path, and methods for balancing thread tension. The needle-and-fabric chart distinguishes needle types for woven fabrics, knits, leather, and heavier materials.

The control-panel instructions explain Mode 1 direct selection, Mode 2 utility and decorative patterns, and Mode 3 letters and numbers. The LCD identifies the selected pattern, required presser foot, stitch width, stitch length, and active mode.

Up to 50 patterns can be stored in memory. Separate instructions show how to review a combination with the cursor keys, delete an incorrect stitch or character, insert letters or spaces, and finish a programmed sequence with an auto-lock stitch. The machine interface can be set to English, Spanish, or French.

Sewing Applications and Presser Feet

The buttonhole coverage goes beyond the standard one-step pattern. Illustrated procedures address square, rounded-end, keyhole, stretch, knit, and corded buttonholes, including width and density adjustment.

Other step-by-step instructions explain automatic darning with repeat-size memory, programmable bartacks, left- and right-side zipper-foot positioning, blind-hem guide adjustment, free-motion basting, and heavy-fabric starting with the leveling button on Foot A.

Decorative sections connect stitch selection with fabric preparation, backing, and the appropriate foot. They also explain feed-balance correction for compressed or elongated stretch patterns and distorted letters or numbers. The accessory section distinguishes standard attachments from optional items such as the walking foot and quarter-inch seam foot.

Needle-clearance cautions: The straight-stitch instructions warn that an off-center needle can strike Foot H and break. The twin-needle section separately warns that excessive stitch width can cause contact with the needle plate or presser foot.

Cleaning and Sewing-Problem Diagnosis

The care section illustrates needle-plate removal, lint cleaning around the feed dog and hook race, and bobbin-holder reassembly. It states that the machine does not require oiling and limits dismantling to the care operations described.

The troubleshooting chart connects symptoms with likely causes and relevant instruction pages. For example, its skipped-stitch checks distinguish needle condition and installation from unsuitable needle/thread combinations and incorrect threading, helping owners relate a sewing fault to the appropriate setup checks.

Supporting illustrations include the bobbin-threading diagram, straight- and zigzag-tension comparisons, twin-needle threading chart, and hook-race assembly views.

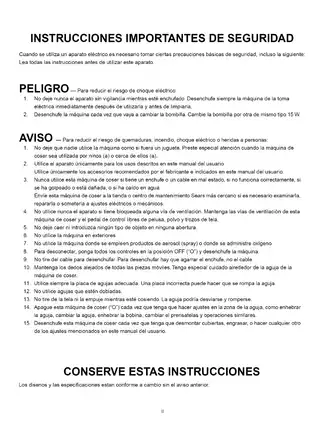

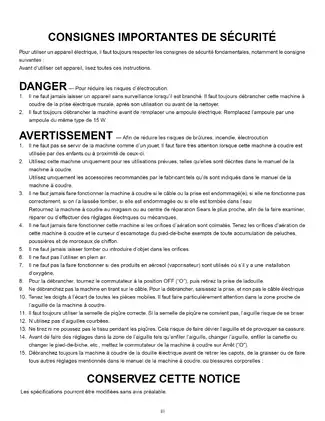

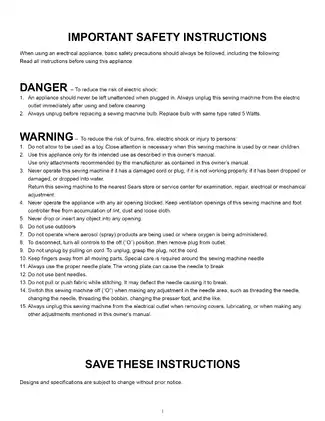

The safety instructions call for unplugging the machine before cleaning or removing parts and keeping hands clear of the moving needle. The bulb-replacement section also addresses cooling the bulb before handling it.

Selected Needle Sizes for Different Fabrics

The fabric chart specifies size 9/65 needles for chiffon and fine lace, a size 16/100 denim needle for denim and sailcloth, and size 18/110 for canvas and upholstery fabrics.

Separate recommendations cover jersey and leather, distinguishing ball-point needles from wedge-point leather needles. These examples show how the manual matches needle size and point type to the material being sewn.
