2005-2009 Yamaha YP125E, Majesty, X-Max 125 Service Manual

This service manual is the definitive guide for your YP125E Majesty, X-Max 125, covering 2005-2009 models. Includes detailed diagrams and part numbers.

5.0starstarstarstarstar(1)
visibility Preview Available
Yamaha 2005-2009 Yamaha YP125E, Majesty, X-Max 125 Service Manual manual page preview - page 1 of

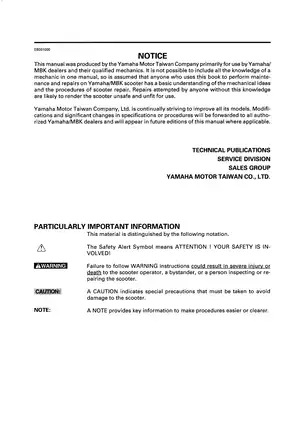

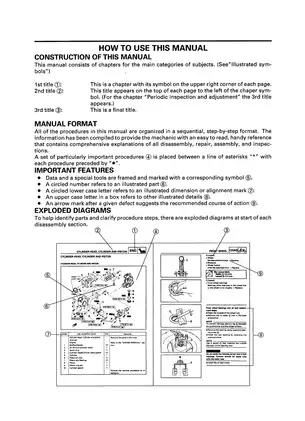

Sample pages from the 2005-2009 Yamaha YP125E, Majesty, X-Max 125 Service Manual manual

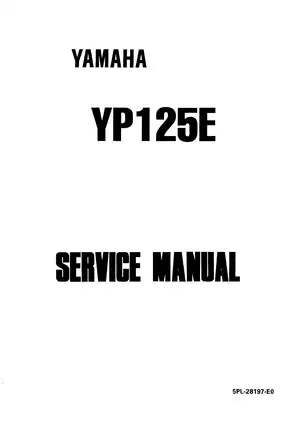

Yamaha 2005-2009 Yamaha YP125E, Majesty, X-Max 125 Service Manual manual preview page 1 - thumbnail

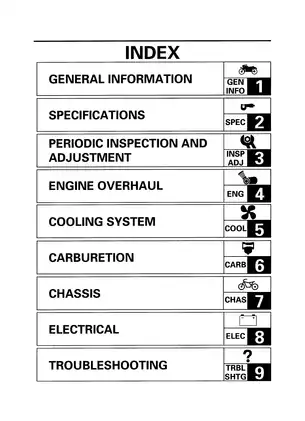

Yamaha 2005-2009 Yamaha YP125E, Majesty, X-Max 125 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$15.90 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: YP125E
Build Years: 2005–2009
Serial Numbers: 5PL-000101 and up
Technical Data:

  • Engine displacement: 125 cc
  • Engine type: Water-cooled 4-stroke SOHC single cylinder
  • Transmission type: Automatic centrifugal clutch with V-belt
  • Fuel type: Regular unleaded gasoline
  • Compression ratio: 11:1
  • Spark plug: NGK C7E or NIPPON DENSO U22ES
  • Cooling system capacity: 0.8 L
  • Engine oil capacity: 1.2 L
  • Idling speed: 1,550–1,650 r/min
  • Battery capacity: 12V 6AH (10hr)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30413 / Amanda Murphy
File Size:
26.31 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Scooter
Last updated / verified
Aug 13, 2025

Yamaha Manual Features & Content Preview

2005–2009 Yamaha YP125E Scooter Service Documentation

  • Covers the 2005–2009 Yamaha YP125E, providing technical specifications for the liquid-cooled 125 cc 4-stroke SOHC engine and automatic transmission powertrain
  • Official Yamaha Motor Taiwan Co., Ltd. publication P/N 5PL-28197-E0
  • Contains 50+ pages of detailed exploded-view diagrams, precise cable routing schematics, and extensive torque specification tables
  • File delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Stored against your account so you can retrieve it after a hard-drive loss
  • This 5PL-28197-E0 edition is the official technical reference for the 125 cc liquid-cooled scooter platform, documenting the specific ignition, cooling, and chassis alignment parameters needed for accurate maintenance work

Technical Scope and Content

The 2005–2009 Yamaha YP125E service manual documents the technical requirements for the complete maintenance and overhaul of this scooter platform. Chapters detail the chassis components, including steering head, front fork, and hydraulic disc brake systems, alongside a comprehensive look at the electrical circuit diagrams, charging system components, and ignition timing data. The text provides explicit wear limits for the cylinder, piston, and camshaft, as well as specific tightening torque values for every fastener from engine casing bolts to steering ring nuts.

Specification Highlights

Maintenance requirements such as valve clearance and fluid capacities are clearly tabulated within the document. The cooling system for the 2005–2009 Yamaha YP125E is documented with a 0.8 L capacity. Cylinder head bolt torque values are listed at 220 kgf·cm in the engine data section. The standard idling speed for the 2005–2009 Yamaha YP125E is specified at 1,550–1,650 r/min.

Reference only — always consult a certified technician before performing service on this equipment. This official Yamaha service publication covers the 2005–2009 Yamaha YP125E, documenting engine, chassis, electrical, and cooling system specifications for the YP125E scooter series.
