Winter-Ready Diagnostics: Yamaha SXV60ERJ, SXV60J and VT60J (2003)
Product Gallery

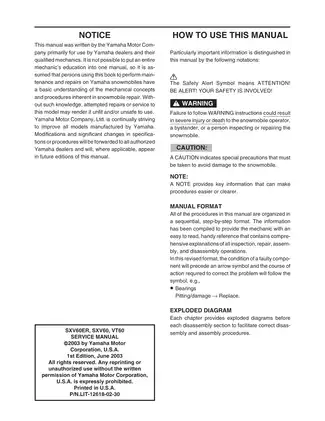

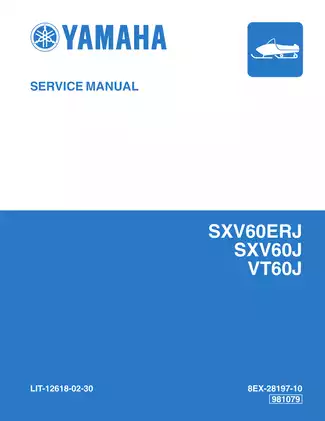

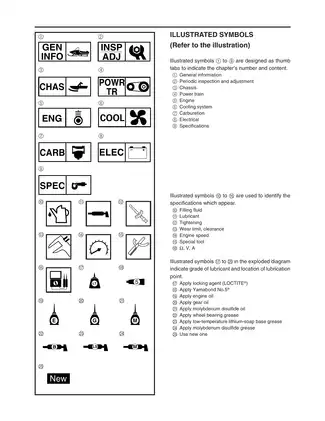

Sample pages from the Winter-Ready Diagnostics: Yamaha SXV60ERJ, SXV60J and VT60J (2003) manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 30661 / John Johnson
- File Size:
- 12.92 MB
- File Type:
- Language:
- English
- Pages:
- 280
- Printable:
- Yes
- Estimated Download Time:
- 0.26 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Yamaha
- Reviewed and Approved:
- Jan 1, 2026
Yamaha Models and Parts Covered in this Snowmobile Manual
- Yamaha SXV60ERJ (2003)
- Yamaha SXV60J (2003)
- Yamaha VT60J (2003)
- Yamaha SXV60ER (2003)
- Yamaha SXV60 (2003)
- Yamaha VT60 (2003)
- Yamaha SXV60ER Viper ER (2003)
- Yamaha SXV60 Viper (2003)
- Yamaha VT60 Venture 600 (2003)
Complete Manual Information
Yamaha SXV60/VT60 Series Service Manual - 2003 First Edition
This professional workshop publication provides authoritative factory procedures for the maintenance and repair of Yamaha's high-performance 600cc three-cylinder snowmobile fleet. Critical for maximizing operational uptime, the manual identifies that the dipstick magnet must be cleaned before every reinsertion into the drive chain housing to prevent metal particulate contamination of the gear assembly. Implementation of these factory-specified protocols ensures structural integrity and preserves the long-term ROI of the machine.
Technical Applicability & Propulsion Configurations
Electric Start & Reverse-Equipped Chassis
- SXV60ER (ER Series)
- VT60 (Venture Series)
Manual Start & Standard Chassis Architecture
- SXV60 (Viper Series)
Regional Production Variants
- VT60 USA/Canada Specifications
- VT60 European Specifications
Operational Performance & Safety Benchmarks
- Precision synchronization of MIKUNI TM31 triple carburetors ensures optimal fuel-to-air ratios across all elevation ranges.
- Factory-verified torque sequences prevent fastener fatigue and structural failure under high-vibration operating conditions.
- Step-by-step air bleeding protocols for the hydraulic brake and cooling systems maintain critical safety margins during extreme use.
Document Metadata
- Print Number: LIT-12618-02-30 / 8EX-28197-10
- Page Count: 96 (Extracted Section)
- Publication Date: June 2003
Calibration Data & Factory Benchmarks
- Engine Idle Velocity: 1,600 ± 100 r/min.
- Spark Plug Gap (NGK BR9ES): 0.7–0.8 mm (0.028–0.031 in).
- Compression Ratio: 6.6 : 1.
- Oil Pump Distance Setting: 23 ± 1 mm (0.906 ± 0.039 in).
- Thermostatic Cap Opening Pressure: 95–125 kPa (14–18 psi).
Visual Navigation Aids
- System Architecture: Detailed exploded views for the Primary Sheave (YXR type) and Secondary Sheave assemblies.
- Electrical Topographies: Comprehensive wiring schematics covering DC-CDI ignition and grip warmer circuits.
- Routing Diagrams: Precise cable and hose management paths for throttle, oil, and cooling lines.

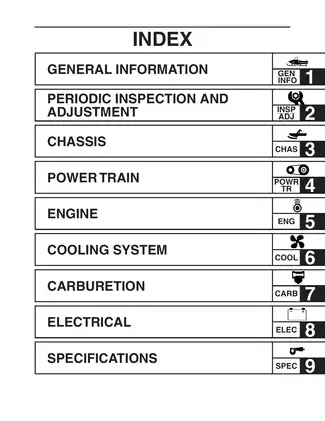

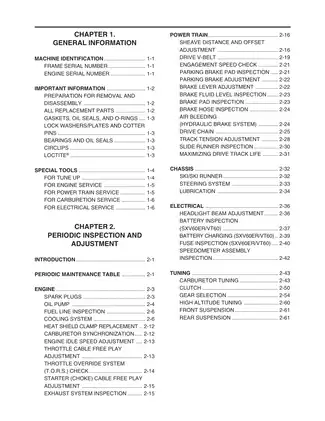

Table of Contents
- Chapter 1: General Information (Machine ID, Special Tools)
- Chapter 2: Periodic Inspection and Adjustment (Maintenance Tables, Engine/Power Train Tuning)
- Chapter 3: Chassis (Steering System, Ski Alignment)
- Chapter 4: Power Train (Clutching, Drive Chain, Brake Caliper Service)
- Chapter 5: Engine (Cylinder Head, Crankshaft, Recoil Starter)
- Chapter 6: Cooling System (Water Pump, Heat Exchanger)
- Chapter 7: Carburetion (MIKUNI TM31 Disassembly, Fuel Pump)
- Chapter 8: Electrical (Ignition, Starting, Lighting, Signal Systems)
- Chapter 9: Specifications (General, Maintenance, Tightening Torques)
Operational Limits & Fluid Specifications
- Brake Fluid Grade: DOT 4 only.
- Chain Housing Lubricant: Gear oil API GL-3 (SAE #75 or #80); 0.25 L capacity.
- Cooling Media: 60/40 Ethylene Glycol/Distilled Water mix; 3.8 L to 4.1 L total capacity.
- Main Fastener Torques: - Primary Sheave Bolt: 120 Nm initial / 60 Nm final.
- Cylinder Head Nut: 23 Nm (Two-stage sequence).
- Spark Plug: 20 Nm.
Download Instructions for Yamaha Snowmobile Manual
Frequently Asked Questions - Yamaha Snowmobile Manual
Is this manual suitable for beginners?
Yes, this Yamaha manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Snowmobile maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (12.92 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Yamaha Snowmobile manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
