Official Yamaha PZ500C & VT500XLC Phazer 500 and Venture 500 XL Snowmobile Service Manual - Factory Inspection, Repair & Maintenance (1998)

Yamaha PZ500C & VT500XLC Service Manual - 1998 Edition

This professional factory service manual provides authorized technical data for the maintenance and overhaul of Yamaha’s 485cc air-cooled powerplants and Proaction chassis systems. Uptime is maximized through the precise execution of the Throttle Override System (T.O.R.S.) diagnostic check, a critical safety protocol that prevents engine runaway by verifying switch continuity between the carburetor and handlebar housing.

Technical Applicability & Chassis Configurations

• Standard Chassis Series (PZ500 / PZ500C): Applies to the base Phazer 500 configuration featuring a 211 kg dry weight and 2,760 mm overall length.
• Extended Chassis Series (VT500XL / VT500XLC): Covers the Venture 500 XL touring variant equipped with electric start, reverse transmission, and a 2,970 mm overall length.
• Drivetrain Variants: Specifications included for both standard chain housing and models equipped with reverse gear assemblies.

Operational Success & Maintenance Accuracy

• Factory Calibration Integrity: Utilize exact high-altitude jetting charts and clutch weight rivet specifications to maintain peak 7,250 RPM performance across varying elevations.
• System Longevity: Implement the sequential "crisscross" tightening patterns for crankcase and cylinder head fasteners to prevent thermal warping and gasket failure.
• Diagnostic Precision: Deploy factory electrical resistance values for CDI magneto coils and stator assemblies to isolate ignition faults rapidly.

Document Metadata

• Print Number: LIT-12618-02-03 (8DJ-28197-10)
• Total Pages: 208
• Primary Source: Yamaha Motor Corporation, U.S.A.

Technical Depth & Factory Benchmarks

Engine overhaul procedures mandate a maximum cylinder out-of-round limit of 0.01 mm (0.0004 in) and a taper limit of 0.05 mm (0.002 in) to ensure combustion efficiency. Crankshaft runout must be maintained below 0.03 mm at the center journals to prevent premature bearing fatigue. All assembly phases require the application of model-specific lubricants, including Yamalube 2-cycle oil for needle bearings and Esso Beacon 325 for control pivots.

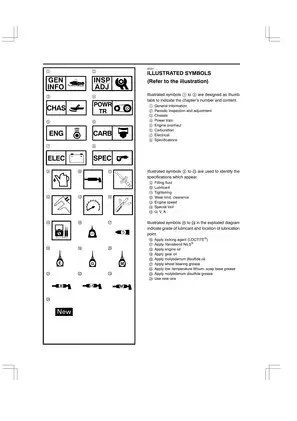

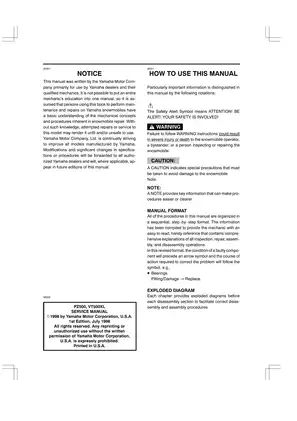

Visual Navigation Aids

• Exploded System Diagrams: Precede every disassembly section to identify component orientation and lubrication points.

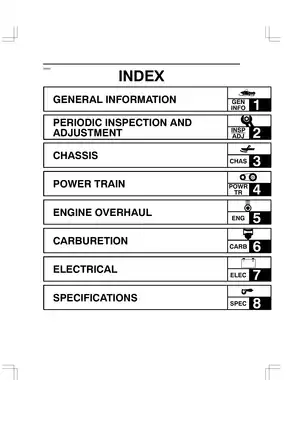

• Illustrated Thumb Tabs: Rapid access to eight primary chapters including Power Train, Carburetion, and Electrical.
• Wiring & Routing Schematics: Detailed maps for cable, lead, and hose positioning to prevent interference with moving chassis components.

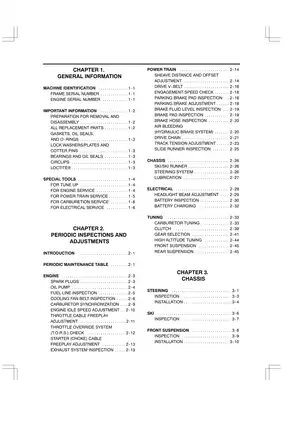

Table of Contents

• Chapter 1: General Information: Machine Identification, Special Tools, and Important Shop Practices.
• Chapter 2: Periodic Inspections and Adjustments: Maintenance Schedules, Engine Tuning, and Chassis Setup.
• Chapter 3: Chassis: Steering Systems, Ski Alignment, and Front Suspension Calibration.
• Chapter 4: Power Train: Primary/Secondary Sheave Service, Drive Chain Housing, and Track Tension.
• Chapter 5: Engine Overhaul: Cylinder Head, Piston/Cylinder Analysis, and Crankcase Splitting.
• Chapter 6: Carburetion: Mikuni B38-32 Disassembly, Fuel Pump Testing, and Synchronization.
• Chapter 7: Electrical: Ignition Troubleshooting, Starting Systems, and Grip Warmer Circuits.
• Chapter 8: Specifications: Torque Sequences, Maintenance Data, and Cable Routing Diagrams.

Operational Limits & Specifications

• Cylinder Head Torque: 1st Step: 25 Nm (18 ft-lb); 2nd Step (Bolts): 15 Nm (11 ft-lb).
• Drive V-Belt Wear Limit: Minimum width of 32.0 mm (1.26 in).
• Spark Plug Parameters: NGK BR9ES; Gap of 0.7–0.8 mm (0.028–0.031 in).
• Fluid Capacities: Fuel Tank: 44.3 L (11.7 US gal); Oil Tank: 3.3 L (3.5 US qt).
• Track Deflection: 25–30 mm (0.98–1.18 in) with 10 kg (22 lb) of force.
