1999–2007 Yamaha TTR250L(C) Service & Repair Manual PDF (P/N LIT-11616-12-57)

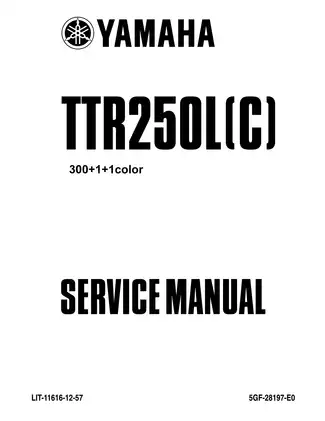

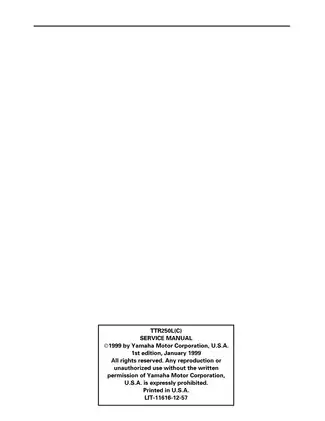

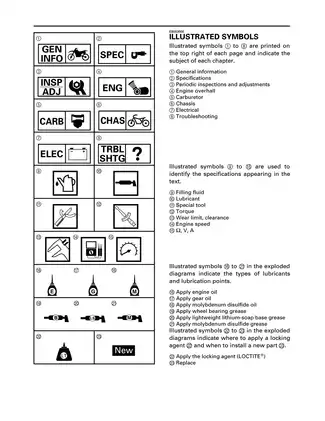

The 1999–2007 Yamaha TTR250L(C) service manual covers model codes 5GF1 and 5GF2. This is the January 1999 first edition, publication LIT-11616-12-57; the cover also carries manual code 5GF-28197-E0.

• Engine repair: Engine removal, cylinder-head overhaul, valve-clearance adjustment, cam timing, crankshaft and balancer installation, clutch repair, and transmission service.

• Carburetor service: Teikei Y30P/1 disassembly, float and needle-valve inspection, accelerator-pump checks, fuel-level adjustment, and throttle-valve positioning.

• Brakes and wheels: Master-cylinder and caliper repair, hydraulic brake bleeding, wheel-bearing replacement, rim inspection, and static wheel balancing.

• Suspension and steering: Telescopic front-fork rebuilding, steering-head bearing service, link-type swingarm inspection, and rear-shock removal and adjustment.

• Electrical diagnosis: CDI ignition, starter, charging, and lighting troubleshooting, supported by circuit diagrams, component tests, and a color wiring diagram.

• Maintenance references: Periodic service schedules, tightening-torque tables, lubrication diagrams, valve-pad selection charts, dimensional drawings, and cable-routing illustrations.

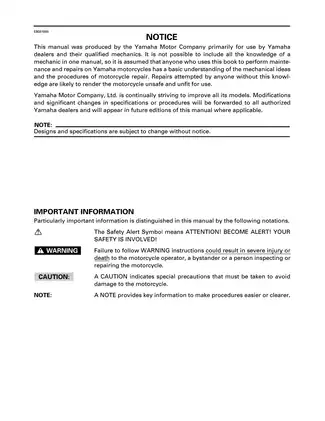

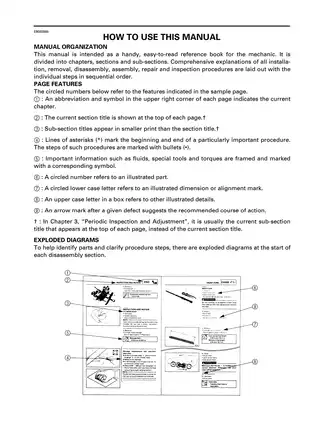

Written for Yamaha dealers and their qualified mechanics, this manual assumes a working knowledge of motorcycle maintenance and repair.

Engine Overhaul, Valve Timing, and Transmission

The engine overhaul chapter runs from removal and crankcase separation through inspection, assembly, and remounting. Cylinder-head work includes valve-seat refacing, guide replacement, and camshaft oil-clearance measurement; piston, ring, and crankshaft checks have their own inspection criteria.

Clutch and gearbox: Exploded views show the wet multiple-disc clutch, six-speed transmission, and shifter assemblies. Inspection covers friction plates, clutch springs, shift forks, gear dogs, and shaft runout. The oil-pump and strainer sections include internal clearance checks.

Valve train: Valve-pad selection charts accompany clearance adjustment, while camshaft alignment illustrations and cylinder-head tightening sequences support reassembly. The manual cautions that uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts.

Special-tool references include valve spring compressor YM-04019 and crankcase separating tool YU-01135-A. Lubrication charts and oil-flow diagrams identify the relevant passages and lubrication points.

Teikei Carburetor and Routine Service

The Y30P/1 chapter details the accelerator-pump diaphragm, starter plunger, jets, needle valve, and float assembly. Fuel-level adjustment identifies gauge YM-01312-A, and throttle-valve positioning is covered separately. The starter jet is identified as a fixed, press-fit component.

Routine service covers air-filter and spark-arrester cleaning, compression testing, oil and filter changes, and throttle and clutch cable adjustment. The ignition-timing section documents checks for the nonadjustable system.

Forks, Swingarm, Steering, and Brakes

Front-fork rebuilding includes damper-rod inspection, seal and bushing replacement, oil filling, and bleeding. The disassembly notes explain how bottoming the inner tube can damage the oil-lock piece.

Steering-head service includes bearing and race replacement. Swingarm coverage addresses the relay arm, connecting arm, and solid-lubricated Polylube bearings, with inspection and handling notes specific to those bearings.

Rear-shock scope: The manual covers removal, inspection, replacement, installation, and preload and damping adjustment. It warns against opening the nitrogen-pressurized cylinder; internal shock rebuilding is outside the described work.

Brake inspection distinguishes disc runout, minimum thickness, piston condition, and seal replacement. Chain service includes elongation checks and O-ring handling. Chassis procedures require secure motorcycle support and the manual's brake-system and suspension precautions.

Ignition, Starting, and Charging Faults

The 12V electrical sections use troubleshooting flowcharts for no spark, an inoperative starter, charging faults, and lighting failures. Starting-circuit diagrams explain the neutral and clutch interlocks, helping distinguish an interlock fault from a starter-motor problem.

Starter repair includes commutator, brush, and armature checks. Charging diagnosis addresses the stator, rectifier/regulator, and wiring, while cable-routing drawings show harness and hose placement.

Examples of Carburetor and Ignition Test Data

These examples represent a small selection of the manual's adjustment and diagnostic specifications.

For the Teikei Y30P/1, the fuel-level specification is 7.5–9.5 mm below the front float-chamber mating surface with the carburetor vertical.

The CDI pickup-coil resistance specification is 190–230 ohms at 20°C (68°F), providing the reference range used in the ignition troubleshooting section.

PDF Bookmarks and Wiring-Diagram Access

Search, navigation, and diagram detail: PDF text search is unavailable. Chapter and subsection bookmarks are present, but the main-index and final wiring-diagram bookmark entries do not provide working navigation within this file. Small circuit and wiring labels require zooming for comfortable reading.

Delivered as one printable, English-language 295-page PDF: 13 pages of cover and front matter, 281 pages across eight chapters, and one final color wiring-diagram page. All are included in the total.
