Yamaha Zuma 125 Service & Owner’s Manual Set, 2009 (P/N LIT-11616-22-71)

This set pairs the factory repair publication with a separate owner reference, keeping workshop procedures distinct from operating and routine-maintenance information.

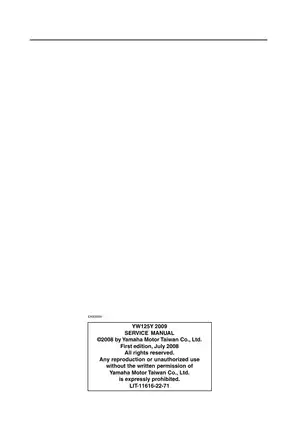

Service procedures are tied to the YW125Y publication. Match the scooter’s model label to the appropriate volume rather than assuming multi-year interchange.

PDF Search, Bookmarks, and Included Pages

Search and diagram detail: The service PDF supports text search, although two section bookmarks lack working destinations. The owner’s PDF has working chapter bookmarks and searchable main text; its two warranty pages are not text-searchable. Small wiring-diagram labels are readable when enlarged.

The ZIP download contains two printable English PDFs with 430 pages total. This includes the service volume’s color wiring-diagram sheet and rear cover, plus two warranty pages, five nearly blank index pages, and three nontechnical additional pages in the owner’s volume.

Engine, Belt-Drive, and EFI Workshop Coverage

The following is a selection of included topics, rather than a complete table of contents. Further examples include seat-spring adjustment and cable-routing illustrations.

• Engine repair: Step-by-step removal and installation, cylinder-head and valve-train work, piston and crankshaft inspection, crankcase assembly, oil-pump service, and starter-clutch repair.

• Belt drive and final transmission: Primary/secondary sheave disassembly, clutch-shoe and V-belt inspection, reassembly, installation, and final-drive gear and shaft checks.

• Wheels and brakes: Wheel removal and static balancing, front disc and rear drum brakes, master-cylinder and caliper overhaul, and hydraulic bleeding.

• Suspension and steering: Fork teardown and seal installation, steering-head bearing service, swingarm inspection, and rear-shock inspection and replacement.

• Fuel injection: ECU self-diagnosis, diagnostic-mode testing, fault isolation, fuel-pump and pressure-regulator checks, injector inspection, and throttle-body testing.

• Electrical repair: Starter-motor disassembly and inspection, ignition and charging tests, lighting and signaling diagnosis, and system-specific circuit diagrams.

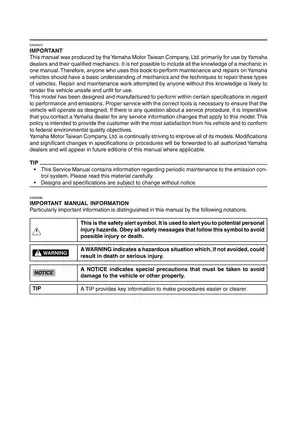

Yamaha produced the service manual primarily for dealers and qualified mechanics; it assumes mechanical repair knowledge and access to the required meters and specialty tools.

Workshop References and Routine Service

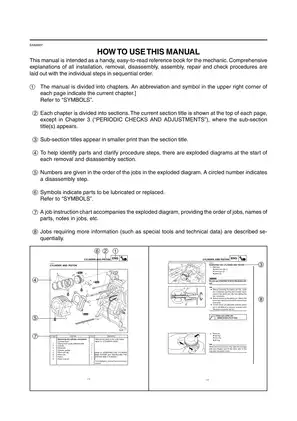

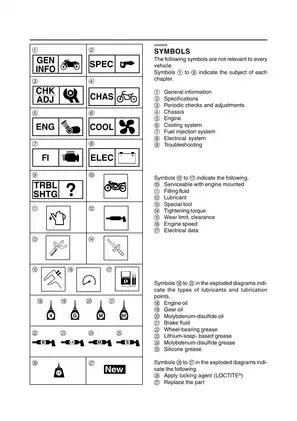

Exploded assembly drawings and job instruction charts identify parts, work order, replacement items, lubrication points, tightening references, and related procedures. Together with the special-tool listings, they help plan the parts and equipment needed before disassembly.

Periodic-service coverage includes valve-clearance and ignition-timing checks, compression testing, engine-oil delivery checks, and engine and final-transmission oil service. Air-filter and V-belt-case filter care, canister and rollover-valve checks, MF-battery charging, and headlight aiming are also covered.

Reference sections supply component-specific torque tables, fluid capacities, lubrication requirements, wear limits, clearances, fuel-pressure specifications, and electrical test values.

EFI Diagnosis and Component Limits

The FI overview maps the ECU, injector, fuel pump, and ISC valve to the throttle-position, intake-air pressure and temperature, engine-temperature, crankshaft-position, O2, lean-angle, and speed-sensor circuits.

Fault-code and fail-safe tables explain stored faults, warning-light indications, and substitute ECU operation. Diagnostic-mode sensor monitoring, actuator checks, malfunction-history erasure, and fault-specific test paths help distinguish sensor-circuit problems from fuel-supply faults before replacement parts are selected.

Throttle body and fuel pump: Coverage includes throttle-position sensor and ISC-valve checks, plus initialization after throttle-body replacement. Fuel-pump procedures cover removal, installation, and pressure testing; the pump itself is not to be disassembled. The sensor module and ISC valve are retained as part of the throttle-body assembly.

Electrical Diagrams and Repair Tools

Visual references include the YW125Y wiring diagram, FI system wiring diagram, ECU self-diagnostic function table, and circuit diagrams for the ignition, electric-starting, and charging systems.

Symptom-based troubleshooting addresses hard starting, incorrect idle, poor medium- and high-speed performance, clutch faults, overheating, braking problems, fork leaks or malfunction, unstable handling, and lighting or signaling failures.

Special tools: Listings include the FI diagnostic tool 90890-03182 (YU-03182) and pressure gauge 90890-03153 (YU-03153) with fuel-pressure adapter 90890-03186. Mechanical examples include clutch spring holder 90890-01337 (YM-33285) and fork-seal driver tools 90890-01367/01368 (YM-A9409-7/-4).

Owner Reference and Service Cautions

The owner’s publication covers controls and instruments, pre-operation checks, starting and riding, scheduled maintenance, panel removal, oils, air filters, brakes, tires, battery and fuses, and turn-signal bulb replacement. Scooter care, storage, specifications, consumer information, and U.S. limited-warranty material are included.

Timing and belt-drive handling: During camshaft installation, the manual warns against turning the crankshaft because valve timing can be lost and engine damage may result. Secondary-sheave assembly specifies an oil-seal guide to protect the seal lip, while belt-contact surfaces must remain free of grease.

Fuel can remain in the hose after the tank has been drained. Keep ignition sources away and follow the manual’s fuel-system precautions; after hydraulic brake repair, follow its bleeding and brake-operation checks before returning the scooter to service.

Valve-Clearance and Belt-Wear Examples

For the YW125Y engine, cold valve-clearance specifications are 0.10–0.14 mm at the intake and 0.16–0.20 mm at the exhaust. The adjustment section identifies a cold engine at room temperature and compression-stroke TDC as the measurement conditions.

The belt-drive inspection lists a standard V-belt width of 22 mm and a wear limit of 19.8 mm. These inspection references accompany checks for belt cracks, damage, wear, and contamination.
