Yamaha Virago XV500 XV500K 1983–1984 Service & Repair Manual (P/N LIT-11616-03-51

• Exact coverage: Covers the Yamaha Virago XV500K (22U model code) beginning with engine serial 22U-000101 and VIN *JYA22U00DA000101**.

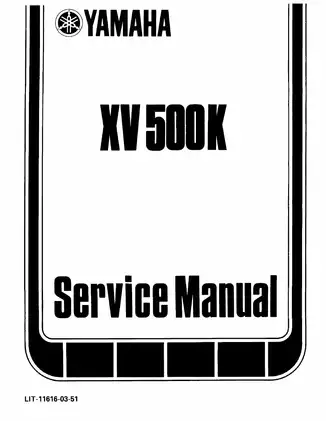

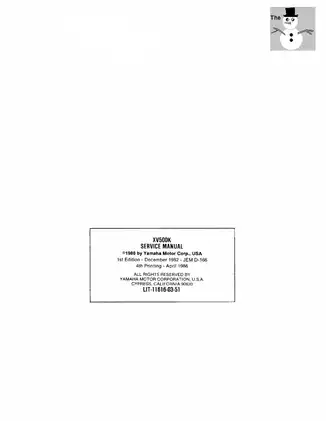

• Document identity: Reproduces the Genuine Yamaha Service Manual, Yamaha literature number LIT-11616-03-51, first issued in December 1982 and shown here in the April 1986 fourth printing. The set contains a 208-page service-manual PDF plus a separate one-page landscape wiring diagram, for 209 PDF pages total.
• Engine overhaul: Covers engine removal and installation, cylinder-head and valve work, cam-chain timing, piston and cylinder inspection, crankcase service, crankshaft and connecting-rod bearings, oil pump, clutch, transmission, and starter drives.
• Shaft-drive service: Details middle-gear and final-drive troubleshooting, gear-lash measurement and adjustment, shim selection, universal-joint and damper work, drive-shaft inspection, and final-drive assembly.
• Fuel and induction: Includes the twin Mikuni BDS34 carburetors, front/rear calibration data, fuel-level and synchronization checks, coasting-enricher operation, fuel-pump service, and Y.I.C.S./vacuum-pipe routing.
• Chassis repair: Provides wheel and bearing service, front caliper and master-cylinder overhaul, brake bleeding, fork disassembly and seal replacement, steering-head work, rear-shock inspection, swingarm adjustment, and shaft-drive removal.
• Electrical and shop reference: Includes system-specific fault tracing, a complete XV500K wiring schematic, special-tool part numbers, centralized torque and wear data, a 13-page exploded-diagram appendix, four lubrication diagrams, and four cable-routing sheets.

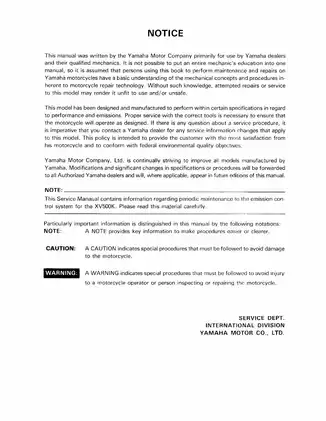

Yamaha wrote this as a dealer-level repair reference and expressly assumes that the reader already understands basic motorcycle repair concepts and procedures. It is best suited to qualified mechanics or experienced owners equipped for accurate measurement, bearing work, carburetor synchronization, and electrical testing.

Engine and Shaft-Drive Overhaul

The engine chapter is built around actual teardown, inspection, and reassembly work. It gives measurement methods and service limits for the cylinder heads, valves and guides, camshafts, cylinders, pistons and rings, crankshaft, connecting rods, clutch, transmission, oil pump, bearings, and seals. Bearing selection covers crankcase main-bearing sizing, connecting-rod bearing color codes, Plastigage checks, and the hydraulic-press tooling used to remove and install the plain bearings.

Front- and rear-cylinder differences are called out where they affect assembly. These include camshaft indexing, cam-chain positioning, cylinder nuts, the rear-cylinder oil baffle, cam-sprocket covers, intake manifolds, and vacuum connections. The middle- and final-gear sections add gear-lash checks, housing and gear-mark calculations, shim-selection charts, thrust-clearance inspection, universal-joint disassembly, and final-drive leak diagnosis.

Yamaha warns that inserting the flywheel-puller bolts too far can severely distort the starter clutch. In the final drive, insufficient gear lash can rapidly damage the gear teeth and may progress to shaft-drive lockup.

Carburetion, Chassis, and Electrical Diagnosis

The carburetion chapter provides a section view of the paired BDS34 units and distinguishes the front and rear jetting. It covers diaphragm and vacuum-piston inspection, float and needle-valve service, fuel-level adjustment, fuel-pump diaphragm and valve work, and the coasting enricher used to control afterburning. Periodic-service material adds carburetor synchronization, idle adjustment, ignition-timing checks, and compression testing.

Chassis procedures run from wheel-bearing replacement and rear-drum inspection through front-brake hydraulic service, fork overhaul, steering-head bearing adjustment, swingarm side-clearance setup, and rear suspension work. Rear-shock coverage is limited to removal, inspection, disposal, installation, and preload adjustment; an internally leaking unit is replaced rather than rebuilt. Detailed tubeless-tire and aluminum-wheel servicing is referred to Yamaha's separate wheel manual, which is not part of this set. Securely support the motorcycle during engine, wheel, and fork work, keep fork oil off the brake components, and protect painted or plastic surfaces from brake fluid.

Electrical sections isolate the starting cut-off, charging, T.C.I. ignition, lighting, and signal systems before moving into component tests. Coverage includes the starter motor and relay, sidestand and clutch interlocks, stator, regulator/rectifier, pickup and ignition coils, switches, flasher relay, and self-canceling turn-signal unit. Visual references include the complete XV500K wiring diagram, starting circuit, ignition circuit, cylinder-head/valve exploded plate, middle-gear plate, and final-gear/drive-shaft plate. The separate landscape schematic duplicates the full wi
