1997 Yamaha XVS650 DragStar 650 Service Manual (P/N LIT-11616-XV-00)

• 838 PDF pages across six files and seven Yamaha factory publications: 4VR-AE1 (327 pages), 4VR-AE2 (16), 4VR-AE3 (47), 4XS-AE2 (47), 5BN7-AE2 (41), plus a 360-page North American file containing the XVS650AK(C) base manual and XVS650K(C) supplement.
• Engine repair coverage runs from removal through cylinder heads, camshafts and rocker arms, valves, pistons, clutch, oil pump, crankshaft and connecting rods, crankcase, transmission, and starter-clutch inspection and assembly.
• Drivetrain procedures address the middle drive and driven pinion gears, shim selection, backlash measurement and adjustment, driveshaft service, and final-drive disassembly, bearing work, ring-gear positioning, and reassembly.
• Carburetion material includes dual-carburetor removal and inspection, fuel-level adjustment, synchronization, throttle-position-sensor checks, and regional air-induction-system inspection.
• Chassis chapters cover wheel service and static balancing, front master-cylinder and caliper repair, hydraulic brake bleeding, rear drum-brake work, fork disassembly and seal replacement, steering-head service, swingarm inspection, and rear-shock handling.
• Electrical sections provide circuit-based troubleshooting and component tests for ignition, electric starting, charging, lighting, signals, the fuel pump, carburetor heaters, switch continuity, and the built-in self-diagnosis system.

Factory Repair Depth

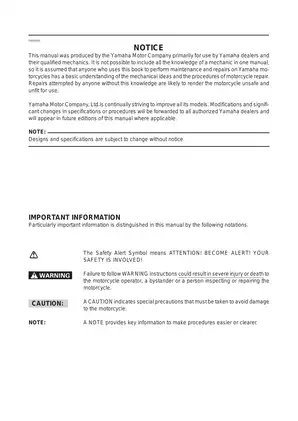

These manuals were produced primarily for Yamaha dealers and qualified mechanics, and Yamaha assumes the user already understands mechanical principles and motorcycle repair procedures. The set is therefore suited to trained technicians and experienced owners who have the required workshop equipment; internal engine, brake, and shaft-drive repair is not entry-level work.

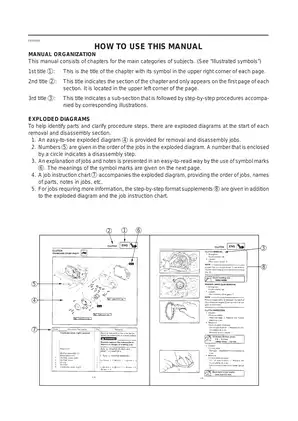

The base service material uses exploded diagrams at the start of removal and disassembly sections, backed by job charts and illustrated step-by-step detail. It treats the air-cooled SOHC V-twin, twin carburetors, five-speed transmission, and shaft final drive as connected systems rather than isolated maintenance items. Specifications cover component-specific tightening torques, clearances, wear limits, lubrication data, fluid capacities, carburetor settings, chassis inspection limits, and electrical test values.

Models, Regions, and Supplement Scope

The 1997 4VR-AE1 base manual identifies 4VR1 and 4VR2. Its 4VR-AE2 supplement adds 4XP1/2 for Switzerland and Austria and 4XR1/2 for Germany, France, the Netherlands, Great Britain, and Spain, including air-induction material for the CH/A configurations. The 2001 4VR-AE3 supplement identifies 4VRD and 4XRD. Separate files cover XVS650N 4XS7 and XVS650AN 5BNY. The North American volume covers 5BN1 (U.S.), 5BN2 (California), and 5BN3 (Canada), followed by XVS650K(C) data for 5FB1, 5FB2, and 5FB3.

The 4VR chain is complete within this set: 4VR-AE2 calls for 4VR-AE1, and 4VR-AE3 calls for both earlier volumes. The North American XVS650K(C) supplement is likewise paired with its required XVS650AK(C) base manual. The included 4XS-AE2 and 5BN7-AE2 are supplemental-only documents; Yamaha directs the reader to XVS650K Service Manual 4XS-AE1, and 5BN7-AE2 also requires XVS650AL supplement 5BN7-AE1. Those two referenced publications are not part of this set.

Diagrams, Tools, and Repair Cautions

Visual references include engine lubrication-flow diagrams, model-specific cable-routing views, air-induction-system diagrams, ignition and electric-starting circuit diagrams, final-drive exploded and section views, and full model-specific wiring diagrams. Factory tool references include vacuum gauge 90890-03094 for carburetor synchronization, middle-gear backlash tool 90890-04080, final-gear backlash band 90890-01231, and fork-seal driver components 90890-01367 / 90890-01381.

The middle-gear section warns that hammering the universal joint can distort the driven-pinion collapsible collar, changing spinning torque and forcing replacement and reassembly. Overtightening the bearing-housing bolts can also reduce backlash enough to damage the gears. The fork chapter identifies excessive separation force as a cause of oil-seal and slide-metal damage and warns that bottoming the inner tube can damage the oil-lock piece.

Because the procedures include engine removal, hydraulic-brake repair, and work around a gas/oil rear shock, the motorcycle must be securely supported and each system made safe before disassembly. Yamaha warns that repairs attempted without the assumed mechanical knowledge can leave the motorcycle unsafe for use.
