New Holland LS140 / LS150 Skid Steer Loader Service Manual (1990–2009)
547 Pages • 1 Printable PDF (English) • Download
New Holland Models Covered & Key Technical Specifications
Models: LS140, LS150
Model Years: 1990s–2000s (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)
-

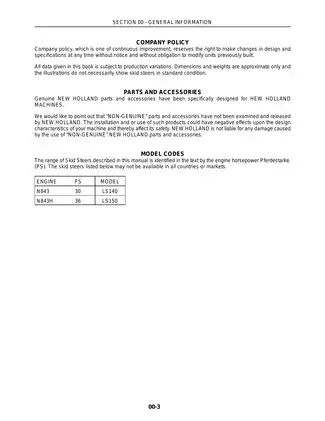

Engine model: N843 (LS140), N843H (LS150)
-
Engine displacement: 1496 cc (91.3 cu. in.)
-
Engine type: 3-cylinder, 4-stroke, liquid-cooled, compression ignition (IDI)
-
Gross horsepower: 33 HP @ 2900 RPM (LS140), 38 HP @ 3200 RPM (LS150)
-
SAE net horsepower: 30 HP @ 2900 RPM (LS140), 36 HP @ 3200 RPM (LS150)
-
Hydraulic system flow: 40.1 LPM (10.6 GPM) @ 2900 RPM (LS140), 44.3 LPM (11.7 GPM) @ 3200 RPM (LS150), both at 1000 PSI
-
Main hydraulic system relief pressure: 2500–2600 PSI
-
Cylinder head bolt torque: 98–103 N·m (72–76 ft. lbs.) (oiled)

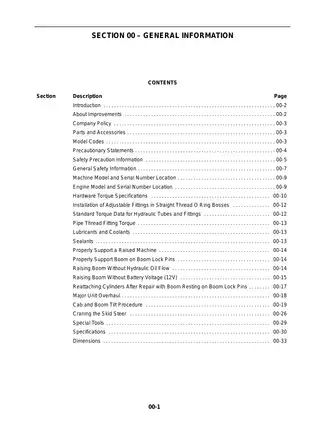

New Holland Manual Features & Selected Content Preview

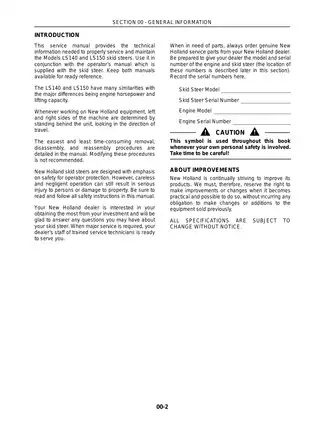

This New Holland factory service manual covers the LS140 with the N843 engine and the LS150 with the N843H engine. Check the machine model and engine designation before ordering.
PDF Search, Bookmarks, and Wiring Detail
Text search and chapter bookmarks help you find service procedures and specifications. Text inside diagram images is outside the search index. Zoom in to read small wire codes and connector labels. The four pages reserved for the overall electrical diagram contain only headings and page markings. Separate engine, fuel-system, and heater wiring diagrams are included.
The download is one printable English PDF with 547 pages, including 546 service-manual pages and one introductory insert.
Engine Overhaul, Hydraulic Tests, and Loader Repair
These are selected topics from the manual. It also covers bucket cutting-edge replacement and heater-core service.
- Engine overhaul covers removal, teardown, and reassembly, including the cylinder head, valve seats, cylinder block, pistons and connecting rods, crankshaft and bearing holders, camshaft, timing gears, and oil pump.
- Working hydraulics covers pressure checks at the boom and bucket cylinders and auxiliary couplers, gear-pump flow tests, spool-lock solenoid checks, and repairs to the control valve, gear pump, and cylinders.
- Axles and chain final drives includes troubleshooting charts, axle-housing removal, axle inspection, primary and secondary drive-chain service, brake assembly removal, and chain tension checks.
- Electrical and EIC diagnosis covers the Electronic Instrument Cluster warning and shutdown functions, interlocks, board self-test, diagnostic and setup modes, fuse and relay panels, and main harness removal.
- Boom, frame, and cab procedures cover cab-and-boom tilting, craning, cab/ROPS removal, boom lock linkage, upper and lower boom links, front pivot-hub replacement, and mounting-plate rebuilding.
- Workshop reference data includes component torques, fluids and lubricants, wear limits, electrical and hydraulic test specifications, dimensions, cycle times, and labor guides.
The manual is suited to technicians and experienced owners equipped for internal engine work, hydraulic testing, electrical diagnosis, and heavy-component handling.
Engine Fuel System and Overhaul Checks
The engine chapter details governor service, injection-pump installation, spill timing, fuel-system testing, and post-overhaul checks. It lists oil-pressure adapter NH 00011, compression-test adapter NH 00120, and oil-pump port-block tools NH 00117 and NH 11097.
Hydraulic and Final-Drive Coverage
The hydraulic chapter shows neutral flow and shifted-spool circuits for the three-spool open-center control valve. It distinguishes early and later factory-set boom circuit relief valves and covers hand and pedal controls. The model tables give separate pump output, boom-cylinder dimensions, cycle times, lift ratings, and drive-chain specifications where they differ. The axle chapter includes the final-drive power-flow layout, tires, wheels, and over-the-tire tracks.
Hydrostatic drive coverage includes charge-pressure monitoring, air-ingress testing, and the power path to the chain final drives. Internal overhaul of the hydrostatic pumps and motors falls outside this manual’s coverage. Incorrect attachment oil routing can starve the charge circuit and damage the hydrostatic pumps and motors.
Electrical Troubleshooting and Accessory Wiring
The EIC connector tables and circuit tests help trace a warning or interlock fault from a sender or spool-lock input to the board. The manual covers alternator and starter testing and overhaul, plus dealer-installed options such as counterweights and accessory wiring. Connecting an accessory to the wrong cab fuse or switch circuit can feed current back into the EIC board, causing false readings or board damage.
Attachment Mounting and Safe Service Access

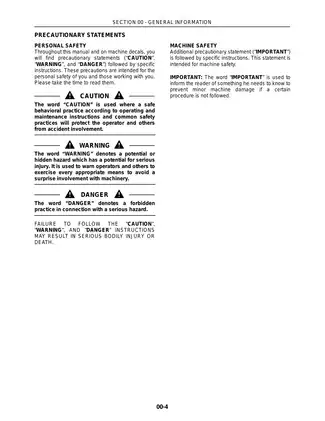

The loader section covers latch lever and pin repair and loader faceplate checks. Raised-boom and craning work require the specified supports and lifting equipment. Cab tilting requires tool 86590084 and the prescribed procedure. Relieve hydraulic pressure before opening lines. New Holland directs readers to use this service manual alongside the separate operator’s manual.
Sample Crankshaft and Gear-Pump Inspection Limits
For the N843 and N843H, the crankshaft installation procedure lists standard end play of 0.1–0.4 mm (0.004–0.016 in.) and an allowable limit of 0.5 mm (0.020 in.).
The hydraulic gear-pump inspection specifies a minimum gear-shaft diameter of 19.0 mm (0.748 in.) at the bushing area.
