Ford 2000, 2100, 2300, 2400, 3000, 3100, 3120, 3150, 3300, 3310, 3400, 3500, 4100, 4110, 4140, 4200, 4400, 4410, 4500, 5100, 5200, 7100, 7200 Parts Catalog

This Ford 2000-Series parts catalog covers 1965–1974 3-cylinder tractor applications, including the 2000, 3000, and 4000 families. Numbered assembly drawings are paired with part numbers, quantities, and application notes. It is a parts reference, not a service-procedure manual.

• Engine assemblies: Cylinder heads, blocks, crankshafts, camshafts, pistons, and lubrication components for gasoline, LPG, and diesel applications, plus gasket and overhaul kits.

• Fuel and cooling: Holley and Zenith carburetor breakdowns, CAV injection-pump parts, diesel fuel-system components, radiators, and water-pump assemblies.

• Transmissions and PTO: Select-O-Speed internals, manual reversing and auxiliary transmissions, single and double clutches, PTO assemblies, and shift-pattern decal listings.

• Axles, steering, and brakes: Front-axle and steering-gear drawings, rear-axle and differential parts, differential-lock linkage, brake shoes, linings, and control hardware.

• Hydraulic equipment: Lift-cover and cylinder assemblies, draft and position controls, hydraulic pumps, remote-control valves, trailer-brake kits, and accessory remote cylinders.

• Electrical components: Harness and lamp layouts, starters, generators, alternators, distributors, and instrument-cluster drawings with their corresponding parts lists.

• Cab and accessory parts: Tractor cabs, safety frames, rollbars, seat belts, wheel weights, and related mounting hardware, with market-specific applications.

Suited to mechanics and owners who can match installed assemblies to part-number and applicability notes.

Engine, Fuel, and Cooling Parts

Separate gasoline/LPG and diesel sections identify internal engine components and kit contents. The diesel piston listings flag replacements that require a complete set, including the specified piston update for the 4000.

The Holley and Zenith carburetor views identify individual components and repair-kit contents. CAV pump breakdowns are accompanied by fuel-filter, injector, and control listings; Simms-related entries identify compatible fuel-system and linkage parts. The fuel-system material supports parts identification; pump calibration and troubleshooting require service instructions.

Radiator and Water Pump assembly views cover cooling components and their associated mounting parts.

Transmission, Axles, and Steering

Select-O-Speed drawings separate the torque limiter, direct-drive clutch, and No. 1, No. 2, and No. 3 brake-band assemblies. Manual reversing, auxiliary over-and-under transmissions, and PTO equipment have separate parts breakdowns.

The Rear Axle and Differential view identifies housings, bearings, matched gear sets, and related hardware. Brake listings include shoe-return springs and anchor pins. Power-steering pump and reservoir sections identify relief-valve springs, seals, and replacement kits.

The steering-cylinder listings specifically warn against mixing different cylinder sizes on the same tractor. The drawings support component identification during repair; they do not establish a disassembly sequence, adjustment procedure, or final safety check.

Hydraulic Lift and Remote Controls

Hydraulic Lift Cover and Flow Control Valve views show how listed components relate to their assemblies. The tables distinguish draft-control linkage, position-control selectors, pump configurations, and remote-valve kit contents.

Accessory remote-cylinder exploded views identify seals, pistons, rods, and attaching parts. Hydraulic trailer-brake entries provide component references. Brake and hydraulic work requires the appropriate service procedures in addition to this catalog.

Electrical, Cab, and Production Variations

Electrical-system illustrations show component locations and harness assemblies. Rear Lamps, Flasher and Wiring and Instrument Cluster views support parts identification; these are assembly layouts, not circuit schematics for electrical diagnosis.

Cab, safety-frame, and rollbar entries distinguish market and equipment applications. Wheel sections include front-end wafer weights, rear-wheel weight mounting hardware, and disc variants.

Basildon, Antwerp, and Highland Park notes, along with production-date breaks and U.K./U.S. distinctions, help narrow the applicable parts before ordering. Model-specific notes distinguish applications such as the 3400, 3500, and 4500. The tables also include replacement-number references and historical service-status notes.

Selected Steering Component Sizes

These examples are a small selection of the catalog's component-identification dimensions.

Power Steering Cylinder Assembly lists 1/2-inch rods and U.S. cylinder assemblies with 5/8-inch rods, with separate repair-kit entries for each size. In Power Steering Gear, pitman-shaft seal D6NN3C615A is listed for housing D6NN-3548-D at 1.06-inch ID, 1.50-inch OD, and 0.25-inch thickness. These are parts-selection dimensions, not inspection limits or adjustment settings.

PDF Search, Bookmarks, and Page Breakdown

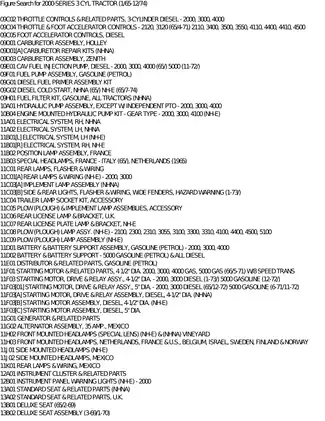

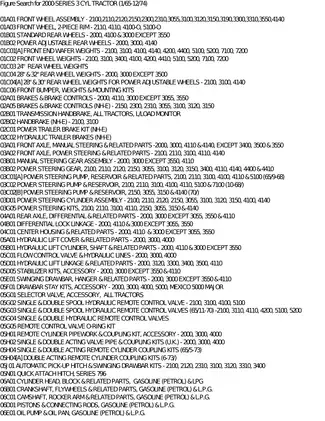

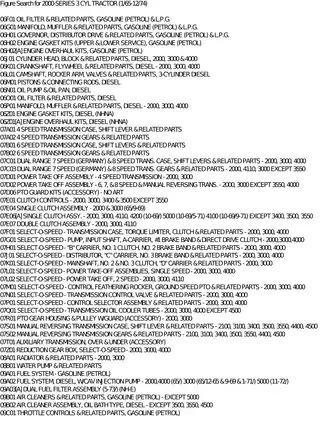

Finding parts and reading drawings: Figure headings, the index, and parts tables have searchable text. Embedded bookmarks lead to the search guide, index, catalog, abbreviations, and hardware conversions. Drawing callouts are not searchable text, and small labels in dense starter and cab illustrations require zooming.

One printable, 667-page PDF contains 644 pages of illustrated parts listings, a one-page search guide, a four-page figure index, 14 abbreviation pages, and two hardware-conversion pages. One introductory page and one blank separator are also included in that total.
