Ford 5610 Tractor Parts Catalog, 1981–1993

Illustrated parts catalog for the 1981–1993 Ford 5610 four-cylinder 10 Series agricultural tractor. Other model names appear in shared-component listings; applicability depends on the individual figure and parts-table notes.

Searchable Parts Listings and PDF Navigation

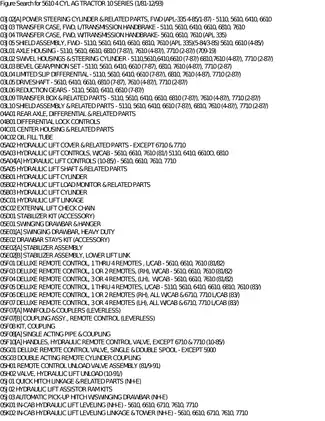

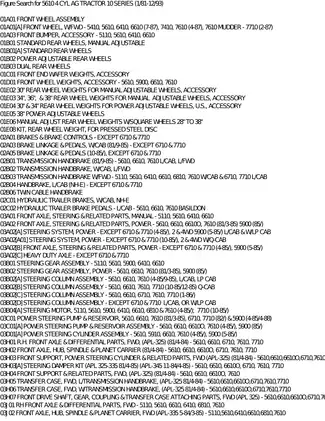

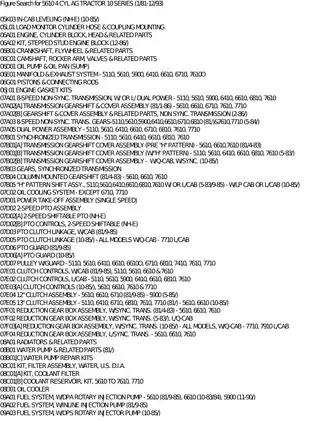

Figure search and drawing detail: Catalog descriptions and figure codes are searchable. Six embedded bookmarks provide broad navigation to the search guide, index, parts section and reference material. Small callouts in the inspected electrical illustrations benefit from zooming.

One printable PDF contains 947 pages: 921 pages of parts illustrations and listings, plus 26 included supporting pages—one introductory page, one search-guide page, seven index pages, one blank page, 14 abbreviation pages and two hardware-conversion pages.

Engine, Drivetrain and Tractor Equipment Parts

The following selected catalog contents outline the main systems. Additional listings include identification decals and engine coolant heater kits.

• Engine and cooling: Exploded views and parts tables for the cylinder block, head, crankshaft, pistons, valve gear, lubrication system, radiator and water pump.

• Fuel injection: Component listings for DPA and DPS rotary pumps, inline injection pumps, injectors, fuel lines, filters and cold-start equipment.

• Transmission and PTO: Numbered breakdowns of gearbox internals, Dual Power assemblies, gearshift mechanisms, clutch controls, reduction gearboxes and PTO clutches.

• Axles, steering and brakes: Parts identification for front and rear axles, differentials, steering gear, hydraulic trailer brakes and handbrake assemblies.

• Hydraulics and implement linkage: Illustrated listings for pumps, lift cylinders, Load Monitor components, deluxe remote control valves, assistor rams and linkage kits.

• Electrical and cab equipment: Harness and component views, electronic instrument clusters, cab fittings, heater assemblies and Sanden air conditioner compressor parts.

Suited to mechanics and experienced owners who can match exploded-view references and applicability notes to the assemblies fitted to their tractor.

Using the Illustrated Parts Tables

Numbered callouts connect assembly drawings with part numbers, quantities and descriptions. Notes identify market differences, production changes, kit contents and components supplied as part of a larger assembly.

This supports repair planning and parts ordering by distinguishing the required seals, bearings, fasteners and related components before an order is prepared. The catalog does not provide step-by-step overhaul instructions, diagnostic test procedures or workshop adjustment specifications.

Wheels and chassis: Separate views distinguish manually adjustable, power-adjustable and dual rear wheel arrangements. Front-end wafer weights, pressed-steel-disc wheel weights and brake linkages have their own component listings.

Engine and Injection-Pump Applicability

Engine tables distinguish complete assemblies, short blocks, gasket kits and replacement components. Build-code notes qualify selected valve-gear parts, rather than treating every listed component as interchangeable.

The inline injection-pump figure specifically identifies the Switzerland version of the 5610. DPS pump components are divided into upper- and lower-half views; these are parts breakdowns rather than pump calibration or overhaul instructions.

Transmission, Clutch and FWD Parts Matching

Gearshift listings distinguish pre-H-pattern and H-pattern arrangements, cab configurations and creeper equipment. Independent PTO clutch components and reduction gearbox parts are illustrated separately.

Linked replacement parts: The clutch listings specify a matching PTO driveshaft when the earlier plate is replaced with E1NNN777AB. This qualification matters when selecting replacement components; the plate is not presented as an isolated substitution.

Steering-cylinder changes: The APL-325 listing cautions that the cylinder cap and associated sealing parts may have been updated to APL-335 style, with a reference to the corresponding later figure. Original axle identification alone may therefore be insufficient for selecting these parts.

Hydraulic and Electrical Illustration Scope

Hydraulic lift cylinder, remote control unload valve and in-cab leveling views distinguish internal parts from external linkage and coupling hardware. The tables also identify components included in lift assistor ram kits.

Rear Wiring and Cab Electrical System figures show harnesses, fittings and related components for parts identification. They are not circuit schematics for electrical diagnosis. The LP-cab electrical section retains its parts lists, but its illustration is marked “NOT AVAILABLE.”

Use the appropriate workshop procedures and safety precautions for work on heavy tractor assemblies, brakes and pressurized hydraulics.

Selected Steering-Rod and Shim Dimensions

In the APL-335 steering-cylinder listing for April 1985–January 1987, rod ZP4472351227 is listed at 610 mm and rod ZP4472351420 at 639 mm. The same figure lists shims from 1.0 to 1.8 mm.

These are component dimensions for parts identification, not steering-alignment settings or bearing-preload specifications.
