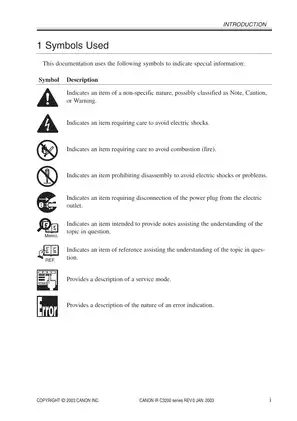

Canon iR C3200 Series Service Manual (P/N FY8-13HV-00L)

• Documents the 2003 Canon iR C3200/iR C3200S series in a 1,222-page PDF, Canon document code FY8-13HV-00L, Revision 00L (May 2003).
• Reader-unit repair covers scanner motor and scanning lamp replacement, CCD-unit service, and white-plate and image-position settings after glass or CCD replacement.
• Details laser-unit replacement and automatic intensity adjustment, plus drum-unit service, intermediate transfer belt replacement, and primary and secondary transfer roller removal.
• Fixing-unit disassembly includes heater, roller, thermistor, and thermal-switch replacement, with fixing-nip checks and adjustment.
• Paper-path repair addresses cassette and manual-feed pickup, registration, delivery rollers, and duplex drives, with jam-detection timing and horizontal registration adjustments.
• Fault isolation combines self-diagnostic codes with service-mode I/O tables, motor and solenoid activation tests, and image-test patterns.

Printing Configurations and Accessory Coverage

The printing-options section identifies the iR C3200N GDI-UFR configuration with the UFR Printer and Scanner Kit-A1 supplied as standard. Separate coverage explains the Color Network Multi-PDL Printer Kit-A1, its UFR board and PDL boot ROM, PCL 5C support, and PostScript 3 compatibility. Firmware tables distinguish regional configurations and NetWare support rather than treating every network-equipped machine as identical.

Option dependencies are covered, too. The USB Interface Board-A1 requires a UFR board for local printing. The Resolution Switching Board-A1 supports the addition of fax and SEND functions. The Super G3 FAX Board-M1 material goes beyond setup into modem and relay tests, line-condition settings, and transmission error reports; the Color Universal Send Kit-A1P/A1U section traces network transmission and addresses preservation of user settings.

Mechanical accessory coverage includes the Side Paper Deck-P1, 2-Cassette Pedestal-X1, and Plain Pedestal-C1. DADF-K1 and finisher diagnostic and service-mode references appear here, but their mechanical repair procedures belong to separate service manuals. The manual lists the duplex unit for the iR C3200 only.

Internal System Documentation and Controller Repair

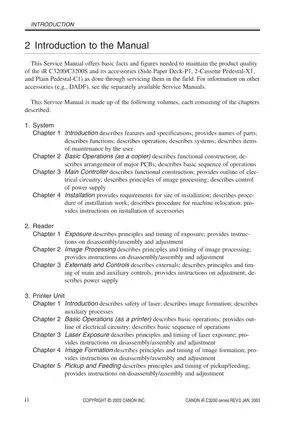

Initial chapters detail the pickup, delivery, and communication options and establish environmental requirements for installation and site selection. Installation coverage also includes relocation preparation and Ethernet connection checks using remote-host, loopback, and local-host PING tests.

The manual explains startup routines and the interaction between the main controller and associated PCBs. It follows boot-ROM startup through HDD software loading into SDRAM, then covers main and sub controller PCB replacement, SRAM handling, and HDD replacement.

The Service Support Tool (SST) procedures address disk formatting, firmware upgrades, and backup-data transfer. Separate sections cover system, language, RUI, boot-ROM, reader-controller, DC-controller, and G3 fax files. Firmware work assumes access to SST and the appropriate software files.

Canon specifically warns that swapping an SRAM PCB between machines can trigger initialization and leave the board unusable in either machine.

Image Correction and Operational Checks

The image-formation chapters distinguish PASCAL automatic gradation correction from SALT maximum-density and halftone stabilization. They explain how density patterns on the intermediate transfer belt are read for automatic correction.

Troubleshooting compares normal output with internal test prints to separate reader or PDL-input faults from print-engine faults. Image-fault examples address uneven density, banding, ghosting, color displacement, and toner rub-off. Adjustment references cover image margins, non-image widths, shading position, and settings affected by PCB replacement.

The fixing-unit instructions flag another specific repair trap: incorrect side-plate removal can break the mounting boss on the lower frame.

Circuit Diagrams, Service Data, and Tools

Wiring references include the Reader Unit Circuit Diagram and Main Controller Circuit Diagram for tracing scanning and controller connections. The High-Voltage Circuit Diagram and Fixing System Circuit Diagram cover the charging/transfer and heater-control circuits. A General Timing Chart relates reader, DADF, and printer operation to component timing; PCB layouts and cross-section assemblies provide additional physical references.

Technical data covers paper and media compatibility, installation conditions, electrical signals, adjustment ranges, and durable and consumable part service lives. Cleaning and lubrication schedules accompany the maintenance sections. The special-tool list identifies the CA1 Test Sheet (FY9-9030) for image checks and the mirror positioning tool (FY9-3040-000) for reader alignment.

Keep in mind that working with imaging systems involves exposure to high-voltage electrical components and laser assemblies. Always ensure equipment is fully de-energized before accessing internal electronics, as this documentation is intended for reference by experienced technicians rather than a substitute for proper safety training.
