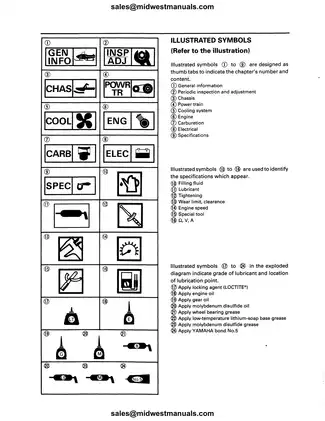

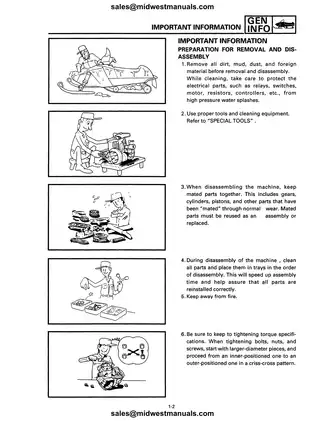

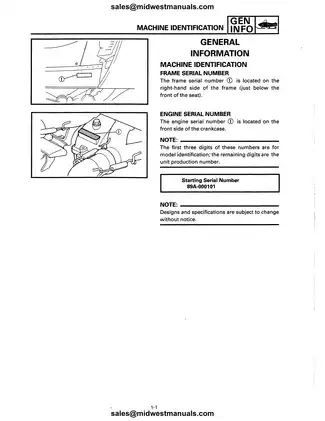

1992–1997 Yamaha V-MAX-4 / ST / 800 Snowmobile Service Manual Set

This Yamaha service manual set combines VX750 and VX750/VX750ST repair manuals with VX800/VX800ST and VX800/MM800 supplements for the V-MAX-4 family. The supplements cover specific changes to the base service information, including later hydraulic brakes and model-specific suspension assemblies.

• Engine repair: Engine removal, crankcase separation, crankshaft and piston inspection, reed-valve service, recoil-starter repair, and assembly specifications.

• Carburetion and lubrication: TM33 carburetor disassembly and synchronization, fuel-pump testing, oil-pump adjustment and bleeding, and high-altitude jetting charts.

• Clutch and chain drive: Primary and secondary sheave service, jackshaft and drive chain housing inspection, clutch tuning, and gearing selection.

• Steering and suspension: Steering-column service, ski toe-out adjustment, front-suspension repair, slide rail suspension disassembly, and track tension and alignment checks.

• Brakes and cooling: Mechanical and hydraulic brake service, cooling-system pressure tests, thermostat and water-pump inspection, and coolant air-bleeding procedures.

• Electrical diagnosis: Throttle Override System (T.O.R.S.) checks, ignition troubleshooting, warning-light and fuel-meter tests, circuit diagrams, and model-specific wiring diagrams.

The overhaul sections are suited to mechanics familiar with snowmobile repair and equipped with clutch service tools and electrical test equipment.

Service Schedules and Missing Pages

Periodic maintenance tables organize oil-pump, cooling-system, and drive-chain checks.

Page gaps: The early VX750 section has a missing page within the oil-pump material. The later VX750/ST section has gaps within front-suspension, primary-sheave, crankshaft-inspection, and cooling-system procedures. These portions are incomplete.

Engine Overhaul and Cooling-System Service

The Crankcase and Crankshaft exploded views accompany inspection and assembly information for the paired crankshafts, drive shaft, pistons, rings, and bearings. The VX800 supplement adds crankshaft drive-gear indexing details.

The Coolant Flow diagram traces the heat exchangers and radiator. Related procedures address cap pressure, thermostat operation, water-pump seals and bearings, coolant replacement, and bleeding.

TM33 Carburetor Setup and Altitude Tuning

Carburetor coverage extends to float height, fuel level, throttle and starter-cable adjustment, synchronization, and diaphragm fuel-pump testing. Fuel-flow charts explain main-jet and jet-needle behavior; altitude and temperature tables provide the corresponding jetting selections.

The tuning cautions explain how operating without the intake silencer can create a lean mixture and cause severe engine damage.

Sheave Repair, Jackshaft Service, and Gearing

Sheave procedures cover bushings, rollers, weights, spring settings, and alignment. The tool references identify the YS-28890-B clutch spider separator and YS-34480 adapter. Mishandling the left-hand-threaded spider during removal or tightening can crack the spider or sheaves.

Clutch Setting Data and Gear Ratio Chart entries distinguish standard and ST configurations, helping match springs, sprockets, and chains before choosing a setup. Jackshaft and drive chain housing sections add bearing, seal, gear, and spline inspection criteria.

Steering, Slide Rails, and Brake Variants

Exploded assemblies and torque tables support steering-column, tie-rod, ski, and front-suspension service. Slide rail sections cover pivot arms, suspension wheels, spring preload, stopper-band settings, and track adjustment views.

The base manuals describe mechanical brake caliper disassembly and pad/disc wear checks. The VX800/MM800 supplement adds hydraulic master-cylinder and caliper service, bleeding, parking-brake adjustment, and separate VX800 and MM800 slide rail assemblies.

Have a qualified technician handle work beyond your experience, particularly brake repairs and spring-loaded clutch disassembly.

T.O.R.S., Ignition, and Electrical Fault Tracing

The No Spark or Weak Spark troubleshooting chart links coil tests, switch checks, condenser testing, and CDI diagnosis. This helps separate an ignition-component fault from a throttle or carburetor switch problem before replacing parts.

The VX800V/800STV Wiring Diagram includes connector layouts and wire-color codes. Other electrical sections cover grip and thumb warmers, fuel-level indication, headlight aiming, and meter-bulb replacement.

A Preview of TM33 and Ignition Test Specifications

These VX750 values are a small sample of the adjustment and electrical test data in the set.

The TM33 float-height specification is 11.3–15.3 mm with the carburetor inverted and the float arm resting on the needle valve without compressing it.

Ignition-coil checks specify primary resistance of 0.16–0.24 Ω and secondary resistance of 3.92–5.88 kΩ, both at 20°C (68°F).

PDF Search, Bookmarks, and Wiring Detail

Navigation and small labels: Technical PDF text search is unavailable. Chapter bookmarks cover all four sections, although some introductory entries lack a page destination. Dense wiring sections require zooming to read connector markings and wire-color codes.

Supplied as one printable 505-page PDF, containing the following four publications:

Introductory and contents pages are included in the individual counts; both supplements are part of the stated total.
