Yamaha VK10W Snowmobile 2006–2007 Supplementary Factory Service Manual (LIT-12618-02-57 / 8GS-28197-10)

• Covers the 2007 Yamaha VK10W, model code 8GS1 (USA/Canada) and 8GS2 (Europe), with VK10W-specific engine, power-train, chassis, carburetion, electrical, and maintenance data.
• Yamaha supplementary service publication LIT-12618-02-57 / 8GS-28197-10, 1st Edition, July 2006.

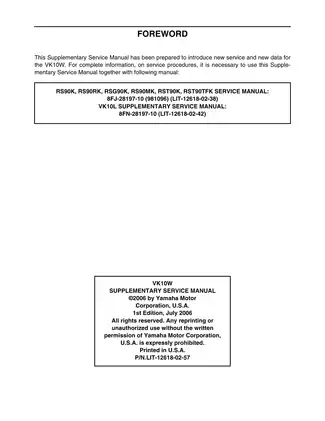

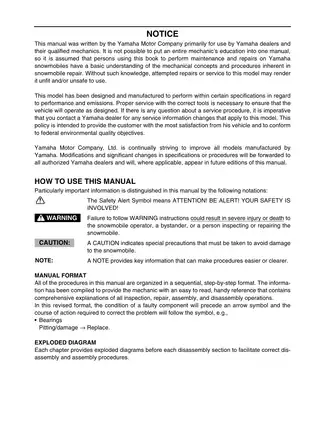

• This PDF is a model-specific supplement, not a stand-alone full service manual. Yamaha specifies use with the RS90K/RS90RK/RSG90K/RS90MK/RST90K/RST90TFK Service Manual 8FJ-28197-10 (LIT-12618-02-38) and the VK10L Supplementary Service Manual 8FN-28197-10 (LIT-12618-02-42) for complete service procedures.
• Contains VK10W specification and torque tables, exploded assembly views, cable-routing layouts, a signal-system circuit diagram, and the VK10W 2007 wiring diagram 8GS-0F001-00.

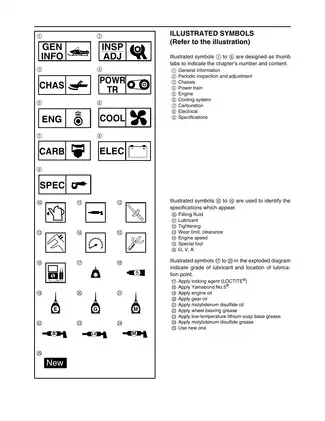

Component and System Breakdown

The factory supplement documents the changes and service data specific to the VK10W rather than repeating the entire RS-series base manual. Periodic inspection coverage includes the emission-control maintenance chart and the general maintenance/lubrication schedule, with an initial service reference of 800 km (500 mi) or 40 hours and recurring seasonal reference of 4,000 km (2,500 mi) or 200 hours. Power-train service covers V-belt setup, brake-pad inspection, hydraulic brake bleeding, drive-chain oil and slack adjustment, clutch tuning, gear selection, and high-altitude tuning.

The VK10W uses a 973 cm³ (59.37 cu. in.) liquid-cooled, DOHC, backward-inclined parallel three-cylinder four-stroke with a 79.0 × 66.2 mm bore and stroke and 11.3:1 compression ratio. Carburetion is by three KEIHIN CVK40 carburetors. Factory capacities include 2.8 L engine oil for a periodic change, 3.0 L with filter replacement, 4.7 L coolant, and 0.35 L of GL-3 75W or 80W gear oil in the drive-chain housing.

Engine repair coverage in this supplement centers on camshaft and timing installation. It identifies the 90890-01235 / YU-01235 rotor holding tool, specifies 24 Nm (17 ft-lb) for the camshaft sprocket bolts, and gives cold valve clearances of 0.15–0.22 mm intake and 0.21–0.25 mm exhaust. The broader internal-engine repair procedures remain in the referenced base documentation, which is an important scope distinction when choosing this manual.

Power-train data goes well beyond routine maintenance. The V-belt is identified as 8GS-17641-00 / MITSUBOSHI, with a 34.1 mm new width, 32.1 mm wear limit, and –0.5 to 1.5 mm standard belt height at the secondary sheave. Clutch specifications call for 2,200–2,600 r/min engagement and 8,250–8,750 r/min shift speed. The standard primary sheave spring is 90501-550A3, rated at 22.1 N/mm, while the secondary spring is 90508-60012 with a 60° 3-3 setting. Gear-selection tables cover 19–24 tooth drive sprockets, 38–40 tooth driven sprockets, and 68- or 70-link chains. Separate high-altitude charts provide jetting and clutch references through 3,000 m (10,000 ft), including main jets #145–#150 and pilot jets #40–#50 according to elevation and temperature.

Factory repair procedures named in the supplement include shift-lever installation, drive-chain-housing removal/inspection/installation, secondary-shaft and chain-housing installation, brake-pad replacement, brake-caliper disassembly and installation, hydraulic brake bleeding, front-axle and track installation, camshaft timing, carburetor separation, and throttle-position-sensor inspection and adjustment. The TPS section gives R1 at 4–6 kΩ and R2 at 0–4 kΩ at 20 °C (68 °F); electrical testing also references the YU-03112-C / 90890-03112 pocket tester.

Technical Specification Preview

The specification section supplies repair limits that help determine whether parts can be reused or need replacement. Examples include a 4.7 mm brake-pad wear limit, 3.5 mm minimum brake-disc thickness, 32.1 mm V-belt wear width, and a 137.35 mm service limit for a measured 14-link drive-chain section. Electrical baselines include ignition-coil resistance, pickup and stator coil resistance, rectifier/regulator output, relay coil values, coolant-temperature-sensor resistance, warmer-element resistance, fuse ratings, and TPS values.

The electrical material is especially useful for model-specific diagnosis. It covers the DC back buzzer troubleshooting path, gear-position switch continuity, gear-position-switch relay testing, cable routing for the battery/starter circuit, carburetor heater and TPS leads, headlight and meter harnesses, handlebar-switch/brake-hose routing, fuel-pump and speed-sensor wiring, and passenger grip-warmer/tail-brake harness routing. Named visual references include the Drive Chain Housing assembly view, Brake Caliper Disassembly, Front Axle and Track Installation, Signal System Circuit Diagram, High Altitude Settings chart, and VK10W 2007 Wiring Diagram 8GS-0F001-00.

Several manual-specific cautions are important during repair work. Drive-chain-housing spacers must return to their original positions or the brake disc and shaft can bind. When installing chain-housing bearings, force is applied only to the outer race; striking the inner race or balls can damage the bearing, and Yamaha calls for new circlips. Camshaft-cap bolts must be lubricated and tightened evenly because uneven clamping can damage the cylinder head, caps, or camshafts. Brake bleeding is also safety-critical: air left in the hydraulic system can reduce braking performance.
