Yamaha Phazer 500 Series / Venture Lite 500 — 2007–2008 Snowmobile Service Manual

Yamaha service manual for the Phazer 500 Series and Venture Lite 500, covering PZ50, PZ50GT, PZ50FX, PZ50M, PZ50VT, and PZ50MP. The cover is labeled 2007–2008; the full wiring sheets are marked 2007. The cover notice advises that some models or years require separate blue-title supplements used with this base manual.

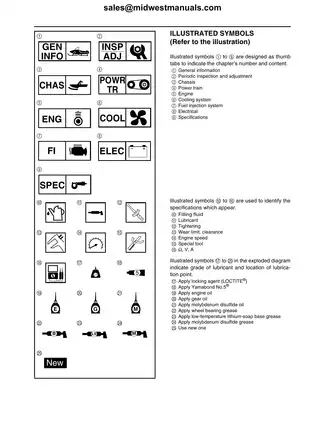

Searchable Text, Bookmarks and Wiring Detail

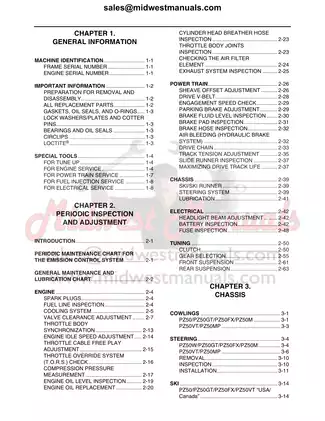

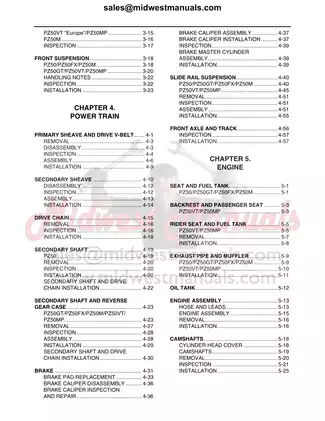

Search and diagram access: PDF text search is available throughout the technical sections. Embedded bookmarks include subsection links, although several chapter-level links open the contents pages. Small wiring labels and connector codes require zooming for comfortable reading.

One printable English PDF with 421 pages total, including one added cover page. The wiring diagrams and their legends are included in that total.

Engine Repair, Clutch Service and Electrical Diagnosis

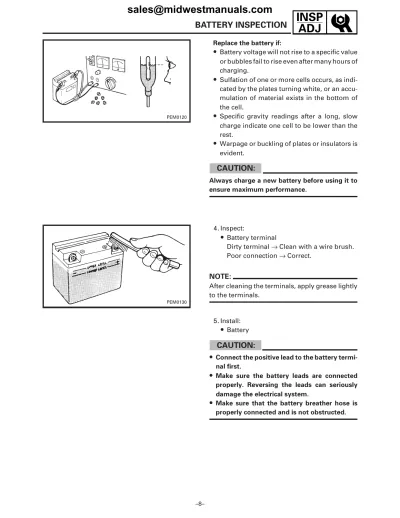

The following selected service topics outline the repair coverage; additional subjects include battery storage and headlight beam adjustment.

• Engine repair: Step-by-step procedures for engine removal, camshaft timing, cylinder-head service, valves and valve springs, and crankcase disassembly.

• Clutches and drivetrain: Primary and secondary sheave repair, bushing inspection, drive-chain service, and separate secondary-shaft and reverse-gear-case procedures.

• Brakes and chassis: Hydraulic brake bleeding, caliper and master-cylinder service, steering alignment, front suspension inspection, and slide-rail suspension and track work.

• Cooling system: Radiator and heat-exchanger inspection, pressure testing, thermostat checks, water-pump disassembly, and mechanical seal installation.

• Fuel injection: ECU self-diagnostics, throttle-body synchronization, intake-pressure sensor tests, injector inspection, fuel-pressure checks, and throttle-position-sensor adjustment.

• Electrical troubleshooting: Circuit diagrams and fault tracing for ignition, starting, charging, lighting, signals, grip warmers, radiator fan operation, and drive/reverse selection.

Suited to experienced snowmobile mechanics familiar with precision measurements, electrical testing, and the specialized tools required for clutch and internal engine work.

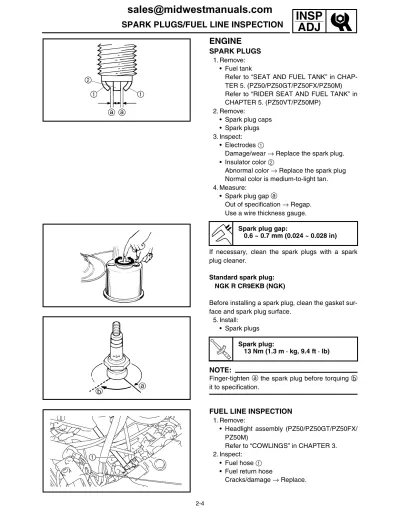

Internal Engine Work and Scheduled Maintenance

The engine sections address the liquid-cooled, 499 cm³, four-stroke DOHC parallel twin and its dry-sump lubrication system. Coverage extends to the A.C. magneto rotor and starter clutch, oil pan and oil pump, balancer, connecting rods, pistons, and crankshaft.

Crankshaft journal and connecting-rod bearing procedures include Plastigauge clearance checks and replacement-bearing selection by identification marks and color codes. Valve service includes guide inspection, seat checks, lapping, and a valve-pad selection table.

Maintenance charts distinguish daily checks, initial service at one month or 800 km (500 mi)/40 hours, seasonal or 4,000 km (2,500 mi)/200-hour service, and valve-clearance inspection every 40,000 km (25,000 mi). Dealer-recommended tasks are marked.

Oil-service data separates periodic changes, filter replacement, and total engine capacity. Chaincase lubricant specifications include GL-3 75W or 80W gear oil.

Drivetrain and Suspension Differences

PZ50 has a separate secondary-shaft procedure. The reverse-equipped variants add the shift fork, shift fork guide bar, dog gear, gear motor, and drive/reverse position switches.

The chain tables distinguish the 80-link chain used by PZ50/PZ50GT/PZ50FX/PZ50M from the 82-link chain and 45-tooth driven sprocket used by PZ50VT/PZ50MP. Standard secondary reduction ratios include 2.05 for PZ50GT and 2.50 for PZ50VT Europe/PZ50MP, with separate settings for PZ50M and PZ50VT USA/Canada.

Steering coverage includes the linkage, relay arm, and steering knuckle. Chassis specifications distinguish the narrower PZ50M ski stance and model-specific track widths. Suspension procedures cover slide runners, the front axle and track, and the PZ50VT/PZ50MP control rods and 2-up adjusting blocks.

These model-specific tables help match drivetrain parts and suspension settings to the correct configuration before repair work begins.

Fuel-System Tests and Electrical Fault Tracing

The KEIHIN TSK43 fuel-injection sections connect fault codes with probable causes, diagnostic-mode checks, and reinstatement methods. Sensor readings and actuator tests are accessed through the meter; the tables also cover stored malfunction history.

Throttle-body procedures include vacuum specifications and the allowable difference between cylinders. Pressure-regulator testing and throttle-position-sensor adjustment provide checks beyond a fault-code lookup.

Electrical coverage includes starter-motor disassembly and inspection, stator coil/A.C. magneto tests, and throttle override system (T.O.R.S.) diagnosis. Radiator fan testing is assigned to PZ50M/PZ50VT/PZ50MP; drive/reverse troubleshooting covers the reverse-equipped variants.

Visual references include the fuel-injection wiring diagram, ECU self-diagnostic function table, ignition circuit diagram, charging-system circuit diagram, drive/reverse selecting-system circuit diagram, and cable-routing views.

The PZ50 wiring sheets carry drawing ID 8GC-0F001-00. The combined PZ50GT/PZ50FX/PZ50M/PZ50VT/PZ50MP sheets carry 8GK-0F001-00, 8GN-0F001-00, and 8GJ-0F001-00.

Special Tools and Assembly Cautions

Tool references support planning before disassembly: steering linkage alignment plate YS-01515 / 90890-01515, sheave holder YS-01880-A / 90890-01701, and clutch spider separator YS-28890-C / 90890-01711.

Fuel-system testing specifies fuel-pressure adapter YM-03176 / 90890-03176 and pressure gauge YU-03153 / 90890-03153.

Primary-sheave cautions address the left-hand-threaded spider and the risk of cracking the spider or sheaves when support is inadequate. Other assembly notes explain how misplaced chaincase spacers can bind the brake disc and secondary shaft, and why valve lifters and pads must retain their positions, with precautions against pads falling into the crankcase.

Rotating track and clutch components, hydraulic brakes, pressurized coolant, and nitrogen-charged shocks require the support, isolation, and service precautions specified in the manual.

A Preview of Valve and Sheave Adjustment Data

Cold valve-clearance specifications are 0.11–0.20 mm for the intake valves and 0.21–0.25 mm for the exhaust valves. The accompanying valve-pad selection table supports the adjustment procedure.

Sheave alignment data specifies a 14.5–17.5 mm offset with the secondary sheave pushed inward toward the frame. Secondary sheave free play is 1.0–2.0 mm, with shim-selection information provided for both adjustments.
