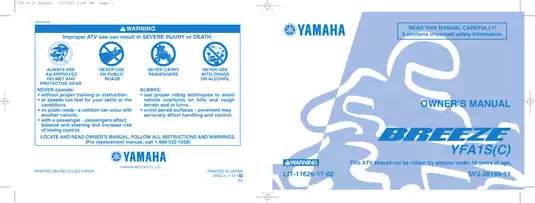

Yamaha Breeze 125 ATV Manual Set: 2004 Owner's + Earlier Service (P/N LIT-11626-17-02)

The owner publication is the direct YFA1S(C) match. Yamaha directs YFA1P/YFA1PC service work to use its supplement together with the YFA1W base manual and YFA1M(C) supplement; all three are present.

Model fit: The service compilation is labeled for earlier YFA1 codes, rather than YFA1S(C). Select repair data by the printed model code, especially for carburetor, chassis, electrical, and maintenance specifications.

PDF Search, Bookmarks, and Wiring Detail

Search and navigation: The owner's main text is searchable, with some back-matter exceptions. Service-PDF text search is limited to the YFA1P/YFA1PC supplement. Both files have embedded bookmarks; one service chapter bookmark opens the contents instead of General Information. Small labels in the main wiring diagrams are readable with zoom.

The ZIP contains two printable PDFs totaling 445 pages: the owner's manual and a 289-page service compilation. That compilation includes one additional cover carrying P/N LIT-11616-YF-00. The totals already include the owner's two-page safety card and four promotional pages across the files.

Engine Overhaul, V-Belt Drive, and ATV Care

These content highlights are a selection rather than a complete contents list. Other topics include fender removal and installation.

• Engine repair: Step-by-step procedures for engine removal, disassembly, inspection, and reassembly, including the cylinder head, valves, piston, camshaft, timing chain, crankshaft, balancer, and oil pump.

• Clutch and transmission: Centrifugal clutch, shifter and transmission inspection, V-belt replacement, primary/secondary sheave service, and electric starter-drive checks.

• Carburetion: Mikuni VM18SH removal, disassembly, inspection, assembly, and installation, with sectional and exploded views plus float-height and fuel-level adjustment.

• Chassis: Front and rear wheels, drum brakes, swing-axle front suspension, steering, swingarm, drive chain, and sprockets, with inspection, replacement, and adjustment procedures.

• Electrical diagnosis: CDI ignition, electric starting, charging, lighting, and neutral/reverse fault tracing, plus brake-light testing in the YFA1P/YFA1PC supplement.

• Owner care: Controls, pre-operation checks, cold/warm starting, reverse, engine break-in, speed limiter, riding techniques, scheduled maintenance, cleaning, storage, and basic troubleshooting.

The owner material is written for owners performing preventive maintenance and minor repairs; Yamaha's service publications are primarily for dealers and qualified mechanics with a basic understanding of machine repair.

Internal Engine and Drive Service

Repair depth: The base manual covers valve-seat refacing and lapping, valve-guide replacement, piston-ring measurement, crankcase separation, and starter-motor overhaul. Its engine-removal section identifies components that can be serviced with the engine installed, helping a mechanic determine whether a planned job requires full engine removal.

Workshop references: General and component-specific torque tables, wear limits, lubrication points, and cable-routing drawings accompany the procedures. The engine lubrication diagram and exploded engine, transmission, sheave, and V-belt views show component relationships and assembly details.

Yamaha special-tool references identify the fuel-level gauge, sheave holder, clutch-spring holder, crankcase separating tool, valve-service tools, rear-axle nut wrench, dynamic coil tester, and pocket tester by part number.

The service manual warns that spinning cleaned bearings with compressed air can damage their surfaces and cause the bearing to break apart.

Supplement Changes and Electrical Fault Finding

Variant data: The YFA1M(C) supplement updates identification, general and maintenance specifications, California/non-California carburetor data, periodic maintenance, and spark-arrester cleaning. The YFA1P/YFA1PC supplement adds revised specifications and cable routing, front-brake adjustment, a revised steering-system exploded view, switch testing, and signal-system diagnosis.

Circuit references: YFA1W and YFA1P/YFA1PC wiring diagrams are included alongside system-specific circuit diagrams, switch-terminal charts, bulb checks, and electrical diagnostic flowcharts. The starting-system charts distinguish starter-motor and relay checks from neutral-switch and starting-circuit cut-off checks.

Troubleshooting charts address hard starting, poor idle and high-speed performance, gear-shifting faults, automatic-transmission complaints, weak braking, overheating, unstable handling, and lighting/signal failures.

Operation and Preventive Maintenance

Rider information: The owner's manual explains VIN and model-label identification, the drive-select lever, parking brake, fuel cock, choke, seat removal, and load limits. Riding guidance covers turning, climbing and descending hills, crossing slopes, stall recovery, shallow water, rough terrain, sliding, and skidding.

Routine service: Dedicated procedures cover engine and transmission oils, spark-plug inspection, engine and V-belt air-filter service, and idle/throttle adjustment. Brake-shoe checks, brake adjustment, drive-chain slack and lubrication, and cable/pivot lubrication are also covered.

Battery, fuse, and bulb service, headlight aim, V-belt compartment draining, and spark-arrester cleaning complete the maintenance coverage. Factory tables provide approved fuels and lubricants, viscosity guidance, fluid capacities, tire sizes, cold-pressure limits, valve and ignition settings, and electrical test specifications.

Oil selection: The owner's manual warns that energy-conserving passenger-car oils can cause clutch or starter-clutch slippage and shorten component life.

Follow Yamaha's ATV safety instructions. Engine, brake, clutch, and electrical repairs require the specified tools and mechanical knowledge; use a qualified technician when the necessary training is not available.

Examples of Cold Valve Clearances and Belt Wear Data

For the YFA1W base model, the valve-clearance section specifies 0.08–0.12 mm at the intake and 0.10–0.14 mm at the exhaust, measured cold. These are inspection and adjustment clearances, rather than wear limits.

The same base manual lists a standard V-belt width of 20.1 mm and an 18.1 mm wear limit in its belt-inspection procedure.
