Yamaha Grizzly 125 & Breeze ATV Service & Owner’s Manual Set, 1989–2007 (P/N 3FA-28197-10)

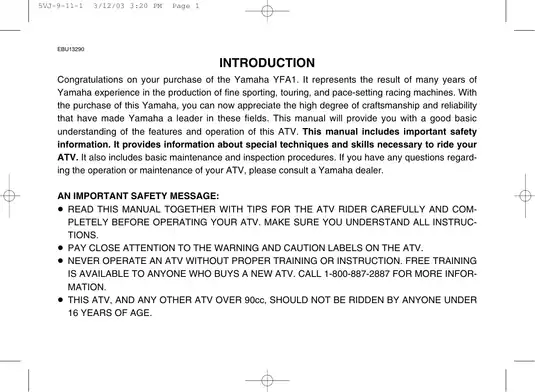

The workshop supplements provide model-specific changes to use alongside the YFA1(W) base procedures. The owner’s manuals cover operation, riding techniques and routine care.

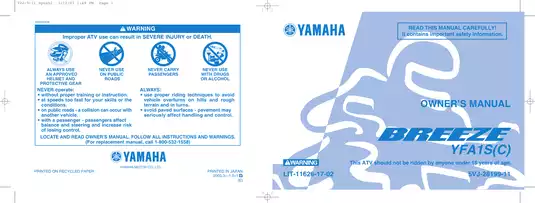

Match the exact model suffix: The owner’s manuals cover YFA1S(C) and YFM125GV; the workshop supplements cover YFA1M(C), YFA1P/YFA1PC and YFM125S. The owner’s manuals do not add same-suffix workshop chapters.

PDF Search, Bookmarks and Wiring Detail

Search and navigation: Operating and maintenance text is searchable in both owner’s manuals, while some warnings and end matter are not. In the service PDF, text search covers PDF pp. 1–53; later sections do not support text search. All three files have embedded bookmarks, although a few workshop links open on contents or index pages. Small wiring labels require zooming.

The ZIP contains three printable PDFs: a 309-page workshop compilation and the two owner’s manuals, totaling 618 pages. Covers, contents, blank pages and six nontechnical additional pages are already included in that total.

Engine, Belt-Drive and ATV Service Coverage

The following are selected content highlights, rather than a complete contents list. Further topics include cleaning, long-term storage and maintenance records.

• Engine repair: Step-by-step removal, disassembly, inspection and reassembly procedures for the cylinder head, valve train, piston, crankshaft, connecting rod, balancer and oil pump.

• Automatic drive and transmission: Centrifugal-clutch repair, primary and secondary sheave service, V-belt inspection, starter-drive checks, and shifter and transmission disassembly and assembly.

• Carburetor service: Removal, teardown, component inspection, reassembly, float-height adjustment and fuel-level checks, supported by a carburetor sectional view.

• Brakes, steering and chassis: Wheel and drum-brake repair, front-suspension inspection, steering service, toe-in adjustment, swingarm work, rear-axle removal, and drive-chain and sprocket inspection.

• Electrical diagnosis: Ignition, electric-starting, charging, lighting and signal-system circuits, with switch and bulb checks, starter-motor service, fault isolation and model-specific wiring diagrams.

• Owner operation and care: Controls, pre-operation checks, starting, break-in, forward/reverse selection, loading and riding techniques, plus oil, filter, brake, chain, battery, fuse, lighting, V-belt-drain and spark-arrester maintenance.

• Workshop references: Exploded assemblies, job charts, cable-routing drawings, a lubrication diagram, torque tables, capacities, wear limits, adjustment data, electrical test specifications and numbered Yamaha special tools.

The owner’s manuals address owners performing preventive maintenance and minor repairs; the workshop sections suit mechanics with overhaul knowledge and the specified measuring equipment.

Model-Specific Supplements

The YFM125S supplement adds carrier, bumper, center-cover, grill and fender removal, headlight service, cable routing and revised electrical circuits.

YFA1P/YFA1PC material adds front-brake adjustment, a steering-system assembly view, switch-continuity testing and brake-light diagnosis. YFA1M(C) updates identification, specifications, maintenance schedules and spark-arrester service.

California-specific carburetor specifications are separated from other versions. These distinctions help match settings and circuit information to the machine before repair work begins.

Overhaul Depth and Mechanical Checks

The engine chapter extends into valve-seat refacing and lapping, valve-guide replacement, piston and cylinder measurement, oil-pump inspection, cam-chain installation, and crankshaft/balancer alignment. It also identifies components that can be serviced with the engine still installed.

Factory cautions explain how uneven crankcase separation or blows to gasket mating surfaces can damage the cases. Chassis cautions address damage to rear-axle threads and splines from hammering, and wheel-bearing damage from force applied through the center race or balls.

Electrical Fault Tracing

The YFA1(W) Circuit Diagram and Electric Starting System Circuit Diagram support checks of the starter relay, starting circuit cut-off relay and neutral switch. Charging-system diagnosis separates output testing, coil-resistance checks and wiring faults.

Dedicated YFA1P/YFA1PC and YFM125S wiring diagrams show their circuit arrangements. Troubleshooting charts also address hard starting, poor running, faulty shifting, clutch-out failure, weak acceleration, overheating and unstable handling.

Special Tools and Final Checks

Valve and compression work references the valve-adjusting tool YM-08035 / 90890-01311 and compression gauge YU-33223 / 90890-03081.

Other named equipment includes the crankcase separating tool YU-01135 / 90890-01135, rear-axle nut wrench YM-37132 / 90890-01419, and dynamic coil tester YU-34487 / 90890-03144.

Brake, steering, drivetrain, and electrical repair should be completed with the model-specific specifications and final checks.

Sample Valve, Belt and Ignition Specifications

The YFA1(W) base manual specifies cold valve clearances of 0.08–0.12 mm intake and 0.10–0.14 mm exhaust. Its V-belt reference gives a standard width of 20.1 mm and an 18.1 mm wear limit.

For the YFM125S, the electrical table lists pickup-coil resistance of 248–372 Ω at 20°C (68°F), measured across the white and red leads.
