1985–1990 Harley-Davidson FX/Softail Models Service & Repair Manual (P/N 99482-90)

422 Pages • 117.88 MB • Instant, Printable PDF

4.4starstarstarstarstar_border(5)
visibility Preview Available
$19.60 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

Harley-Davidson Models Covered & Key Technical Specifications

Models: FXEF, FXSB, FXWG, FXST, FXSTC, FLST, FLSTC, FLSTF, FXSTS

Sub-models / Variants: Springer, Laced Wheels, Cast Wheels, Belt Drive, Chain Drive

Model Years: 1985–1990 (1985, 1986, 1987, 1988, 1989, 1990)

Serial Numbers: 1HD1BJL11LY010000 (Sample V.I.N. Format)

Technical Data:

  • Engine oil capacity: 3 quarts

  • Oil pressure (idle): 15 psi

  • Crankshaft bearing end play: 0.002–0.006 in.

  • Motorcycle dry weight: 425 lbs

  • Banjo bolt torque: 30–35 ft-lbs

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29345 / Donna Reyes
File Size:
117.88 MB
File Type:
PDF
Language:
English
Pages:
422
Printable:
Yes
Category:
Motorcycle
Last updated / verified
Aug 26, 2026

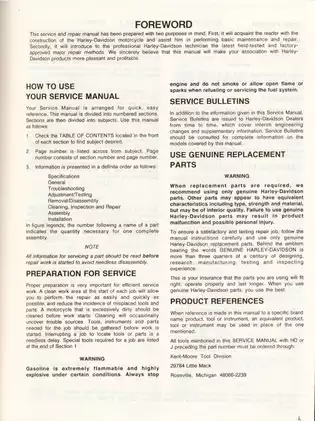

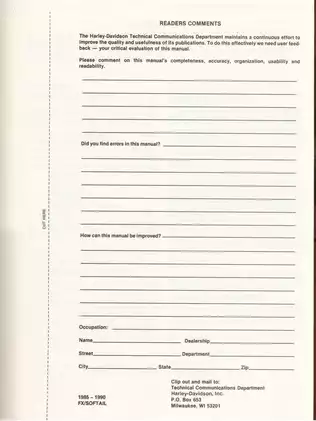

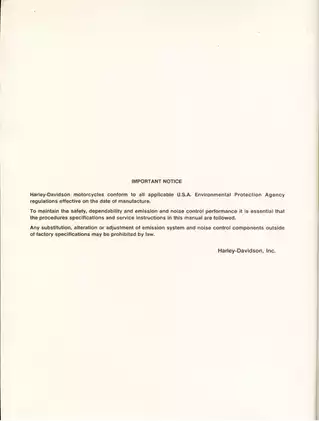

Harley-Davidson Manual Features & Content Preview

  • Harley-Davidson factory publication P/N 99482-90 covers the applicable 1985-1990 model-year configurations for FXEF, FXSB, FXWG, FXST, FXSTC, FXSTS, FLST, FLSTC, and FLSTF motorcycles.
  • Covers major Evolution engine work: cylinder-head and rocker-box service, valve guides and seats, cylinder and piston inspection, connecting-rod bushings, oil-pump overhaul, tappets, timing gears, crankcases, flywheel rebuilding and truing, and sprocket- and pinion-shaft bearing service.
  • Details four-speed and five-speed transmission repair, kick-start and electric-start systems, primary chaincases, clutch disassembly and adjustment, plus secondary chain and belt drive removal, inspection, adjustment, and installation.
  • Provides chassis procedures for laced, cast, and disc wheels; wheel lacing and truing; vehicle alignment; hydraulic brake rebuilding and bleeding; telescopic and Springer fork service; swing-arm work; and rear-shock replacement or adjustment.
  • Includes carburetor and evaporative-emissions troubleshooting, starting and charging-system tests, ignition diagnosis, component-specific specifications, specialty-tool references, exploded assembly views, test charts, and full-page model-specific wiring diagrams.

Complete Factory Documentation

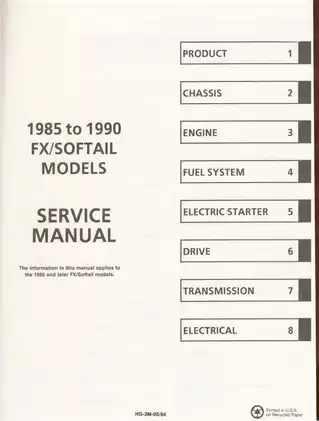

The 422-page PDF opens with motorcycle identification, VIN decoding, maintenance schedules, general troubleshooting, lubricant guidance, torque-reference tables, and an illustrated specialty-tool index. The numbered repair sections then move through chassis, engine, fuel system, electric starter, drive, transmission, and electrical systems in the same order used by the factory publication. Its layout supports shop technicians handling major repair work as well as experienced owners performing maintenance and component service.

The engine chapter documents bench-level repair work, not just routine tune-up operations. It covers stripping the motorcycle for engine repair, cylinder-head removal and disassembly, rocker-arm bushing work, valve-guide and seat repair, pushrod measurement, cylinder and piston inspection, rod-bushing service, oil-pump diagnosis and rebuilding, tappet-guide alignment, cam and timing-gear installation, crankcase work, cylinder-stud changes, flywheel disassembly, connecting-rod inspection, flywheel truing, and main-bearing race service. Factory drawings such as Cylinder Head, Cylinder and Piston - Exploded View, Timing Gears with Marks Aligned, and the flywheel truing and misalignment views show how the assemblies relate before bench work begins.

Model-Year and Configuration Breaks

The manual separates procedures wherever the hardware changed. The chassis section distinguishes rear master-cylinder and caliper designs before and after the 1987 1/2 production break, fork-stem and bracket assemblies used through 1988 versus the late-1988-and-later Softail steering head, the mid-1989 Springer rocker-pivot-stud revision, and 1988-and-earlier reservoir-type Softail shocks versus the adjustable 1989-and-later units. Wheel coverage is divided among 16-, 19-, and 21-inch laced assemblies, cast or disc wheel service, rim runout checks, and model-specific wheel-offset alignment data. Fuel-system coverage is divided between 1989-and-earlier carburetors and the 1990 CVH carburetor, with year-specific California evaporative-emissions schematics and hose routing.

The starter chapter is split between 1988-and-earlier and 1989-and-later systems, including separate 1989 and 1990 jackshaft arrangements. Drive and transmission coverage accounts for chain and belt final drives, 1988-and-earlier versus 1989-1990 primary chaincases, 1989-and-earlier versus 1990 clutch assemblies, four-speed and five-speed gearboxes, the 1985 FXEF electric-start side cover, and kick-start-only components. These distinctions matter when selecting parts, tools, shims, spacers, and inspection procedures.

Electrical coverage combines component tests with full wiring layouts. Diagram sets are broken out for early and late 1985 FXSB/FXEF, early 1985 and late 1985-1986 FXWG/FXST/C, the 1986 1/2 FLST, 1987-1988 FLST and FLSTC, 1987-1988 FXST/C with the 1988 1/2 FXSTS, and 1989-1990 FXST/FLST families. Representative cross-system drawings include Rear Swing Arm and Shock Assembly - Softail Models, Starter Operation, Side Door, Mainshaft and Countershaft - Final Assembly, and the 1989-1990 FLST wiring diagram.

Technical Specification Highlights

Specifications are organized within the relevant system sections, with procedure-specific limits and test data placed where the work is described. The manual provides component torque tables, capacities and approved lubricants, service wear limits, shaft and gear end-play data, wheel and rim runout limits, brake inspection criteria, carburetor settings, starter wear limits, ignition resistance tests, charging-system output checks, and battery test information. The tool pages identify factory fixtures and gauges such as the HD-34813 Rowe Flywheel Rebuilding Jig, HD-35381 Belt Tension Gauge, HD-35500 Digital Multi-Meter, HD-35667 Cylinder Leak Down Detector, and HD-38515 Clutch Spring Compressor.

Several warnings are tied directly to expensive repair mistakes. After pushrod installation, the engine must not be turned until the pushrods spin freely, or valve damage can result. During five-speed transmission work, the inner bearing races and side door must be properly supported while shafts and bearings are pressed, or the bearings and door can be damaged. The 1988-and-earlier Softail shock/reservoir system is sealed, pressurized, and non-repairable; disconnecting the hose loses the charge, and damaged components are replaced together as an assembly.

Brake hydraulic work, compressed fork and clutch springs, pressurized shock reservoirs, and flywheel or bearing press operations require stable support and the specified service tools. The factory foreword also directs technicians to applicable Harley-Davidson Service Bulletins for interim engineering changes, so this volume is the core repair manual rather than a replacement for every later bulletin.
