Harley-Davidson Sportster 2003 Service & 2002 Parts Manual Set (P/N 99484-03)

Use the service manual for maintenance and repair procedures, and the parts catalog for illustrated component identification and part-number lookup. The catalog is a parts reference, not an assembly manual.

Model-year and diagnostic coverage: The parts catalog covers 2002. The separate Sportster Models Electrical Diagnostic Manual referenced for some electrical checks is not included.

PDF Access, Bookmarks and Diagram Detail

Search and navigation: None of the three PDFs has embedded text search. Both service files have section-level bookmarks. The parts catalog has topic bookmarks, although some open on the wrong page. Small service-manual wiring labels require zooming, and several sheets need rotation; some catalog lettering and drawing lines are faint.

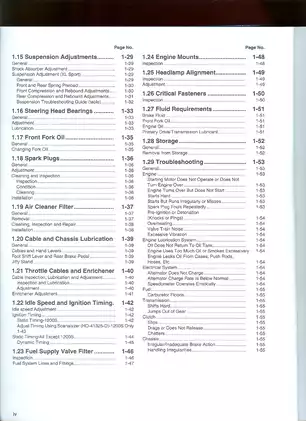

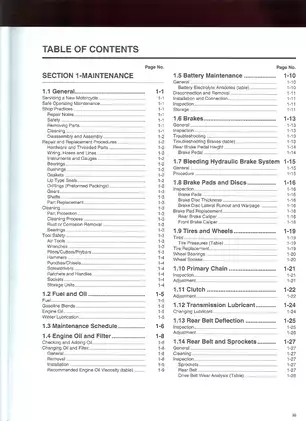

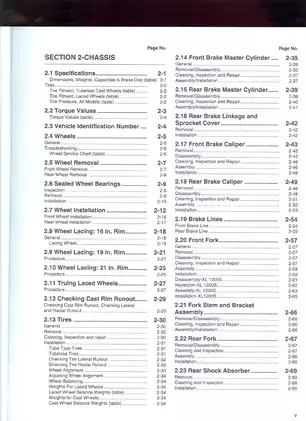

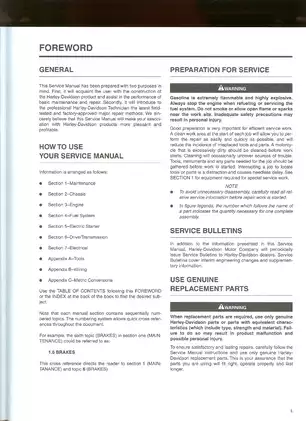

The ZIP contains three printable PDFs totaling 518 pages. That total includes the service manual’s two covers, nine foreword/contents pages and five notes pages, including one repeated notes page.

Engine, Drivetrain and Chassis Workshop Coverage

These selected workshop topics show the main repair areas. Additional subjects include headlamp alignment and jiffy-stand servicing.

• Routine service: Oil and filter replacement, primary-chain and clutch adjustment, drive-belt inspection, lubrication, and scheduled maintenance checks.

• Engine repair: Engine removal, cylinder-head and piston service, cam-gear inspection, oil-pump repair, crankcase disassembly, and bearing selection.

• Clutch and transmission: Primary-drive disassembly, clutch-pack inspection, mainshaft and countershaft repair, shifter-fork service, and shifter-pawl adjustment.

• Brakes and wheels: Master-cylinder and caliper overhaul, hydraulic bleeding, sealed wheel-bearing replacement, wheel lacing, and wheel truing.

• Fuel and suspension: C.V. carburetor service, fuel-valve vacuum testing, California evaporative-emission checks, and model-specific fork and shock adjustments.

• Electrical systems: Starter and solenoid repair, ignition checks, charging-system checks, wiring diagrams, and electrical-connector repair procedures.

Mechanically experienced owners can use the maintenance sections; the major repair methods are presented for professional Harley-Davidson technicians with the necessary workshop equipment.

Before starting any chassis or engine work, verify that your tooling and work environment meet standard shop safety practices, particularly for brake service and spring-loaded assemblies.

Engine Diagnosis and Internal Repair

Compression and cylinder-leakage troubleshooting help distinguish ring, valve and head-gasket faults before deciding how much engine disassembly is needed. The repair sections pair procedures with torque tables, fluid requirements, and new-component versus service-wear limits.

The Cam, Pinion Gear and Timing Mark Indexing illustration supports valve-train assembly. Pinion-bearing selection tables relate race measurements to color-coded rollers, while dimensioned Pinion Shaft Bearing Tools drawings support fabrication of the pressing tools shown.

Engine-handling cautions identify the clutch-cable end fitting as vulnerable if the engine is laid on its primary side.

Clutch and Transmission Overhaul

Step-by-step procedures cover transmission removal through the access door without splitting the crankcase. Transmission Power Flow diagrams explain the gear paths, with separate instructions for bearing replacement and internal reassembly.

Clutch procedures identify spring-compressing tool HD-38515-A and forcing screw HD-38515-91. The manual warns that excessive diaphragm-spring compression can damage the pressure plate.

Sport Suspension and Carburetor Troubleshooting

The XL 1200S has separate fork disassembly and assembly procedures, alongside preload, compression and rebound adjustments. A suspension troubleshooting guide connects ride symptoms with the relevant damping adjustments.

Carburetor troubleshooting distinguishes poor idle, hard starting and vacuum-piston faults. Fuel-valve tests address both flow under vacuum and shutoff afterward. California EVAP coverage adds air-cleaner butterfly-solenoid tests and emission-hose routing diagrams.

Ignition Variants and Wiring Reference

Electrical coverage distinguishes the 1200S single-fire, twin-plug ignition and MAP sensor from the V.O.E.S. system used on other models.

Main Harness, Starting & Charging, and model-specific Ignition Circuit diagrams identify connector pins and wire-color codes. Deutsch, AMP Multilock and Packard connector sections add terminal-removal and crimping procedures.

For charging-system tests after component replacement and 1200S spark-plug cable resistance data, the service text refers to the separate electrical diagnostic manual.

A Preview of Compression and Solenoid Test Values

Cylinder compression: With the engine at normal operating temperature when possible, the manual defines normal final readings as at least 120 psi, with no more than 10 psi difference between cylinders.

California EVAP solenoid: The air-cleaner butterfly-valve section lists winding resistance of 4–6 ohms for the pull-in winding and 21–27 ohms for the hold-in winding, alongside separate functional tests.
