Harley-Davidson Sportster XL/XLH 2003 Service & Electrical Diagnostic Manual Set (P/N 99484-03)

The electrical diagnostic volume works alongside the service manual, linking fault-isolation charts to the relevant component removal and repair procedures.

PDF Search, Bookmarks, and File Layout

Search and diagram detail: Text search is available in both manuals. The technical PDFs have embedded bookmarks; the 13 separate section-contents files do not. Small wire-color codes and connector numbers in the wiring diagrams are clear when enlarged.

The ZIP contains 36 printable PDFs totaling 587 pages. This includes 26 section-contents pages, 11 notes pages, and the two-page shared contents file; blank and footer-only pages are included in these counts.

Engine, Chassis, and Electrical Workshop Coverage

The following selected highlights outline the main workshop content. Other topics include headlamp alignment and storage preparation.

• Engine repair: Compression and cylinder-leakage testing, engine removal, cylinder-head repair, crankcase disassembly, and oil-pump service.

• Transmission and clutch: Transmission teardown, mainshaft and countershaft inspection, bearing replacement, shifter-pawl adjustment, and primary-drive/clutch repair.

• Fuel system: CV carburetor disassembly, float adjustment, vacuum-piston checks, fuel-supply-valve testing, and California evaporative-emissions diagnosis.

• Brakes, wheels, and forks: Brake-caliper and master-cylinder rebuilding, hydraulic bleeding, sealed wheel-bearing replacement, wheel lacing and truing, and front-fork overhaul.

• Starter repair: Starter removal and disassembly, armature and field-coil tests, brush inspection, starter-drive checks, and solenoid service.

• Electrical diagnostics: Starter and charging fault isolation, speedometer and turn-signal testing, and separate ignition diagnostic charts for the 1200S and other models.

The material suits experienced mechanics equipped for precision measurement and electrical testing; engine machining and brake repair call for the relevant workshop skills and equipment.

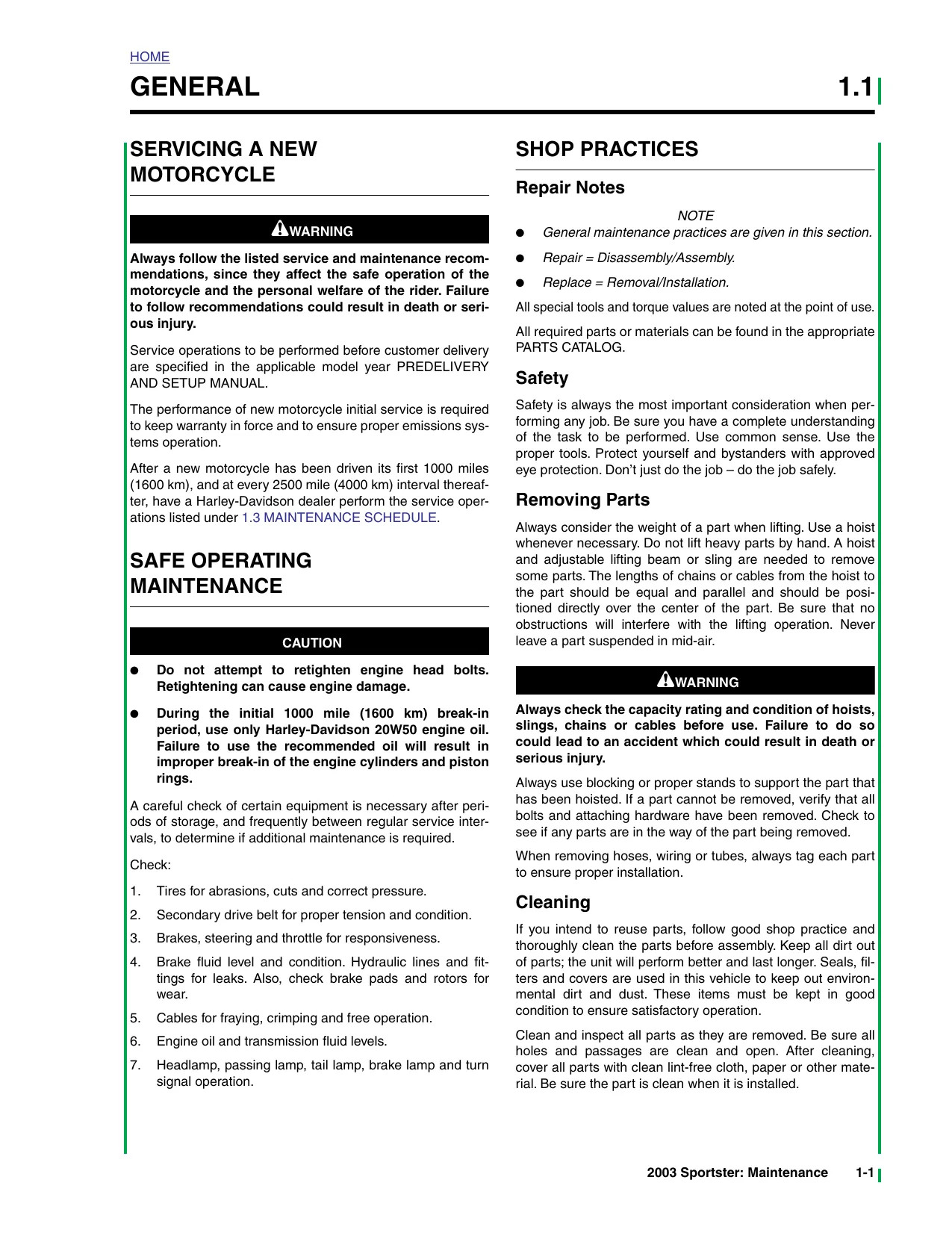

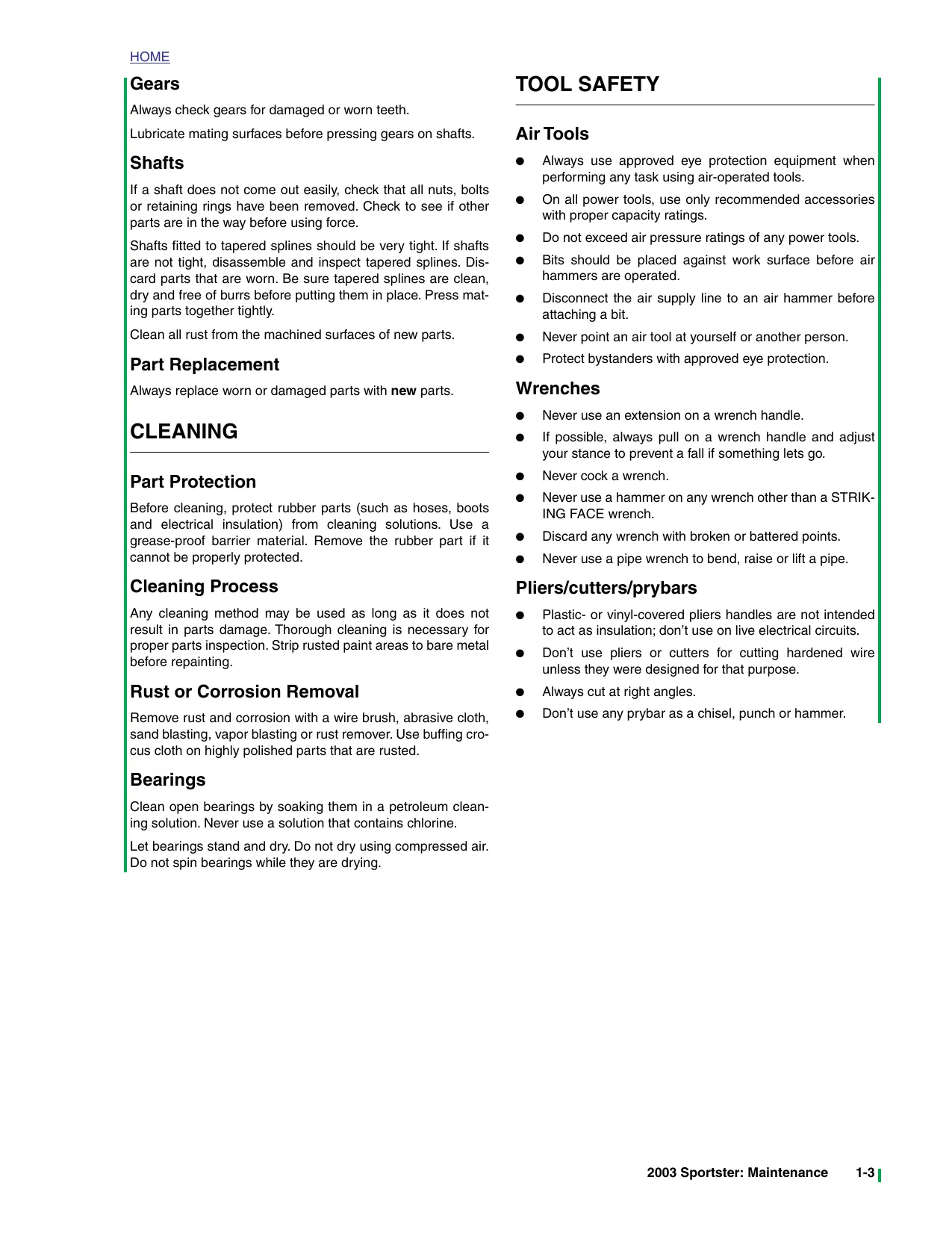

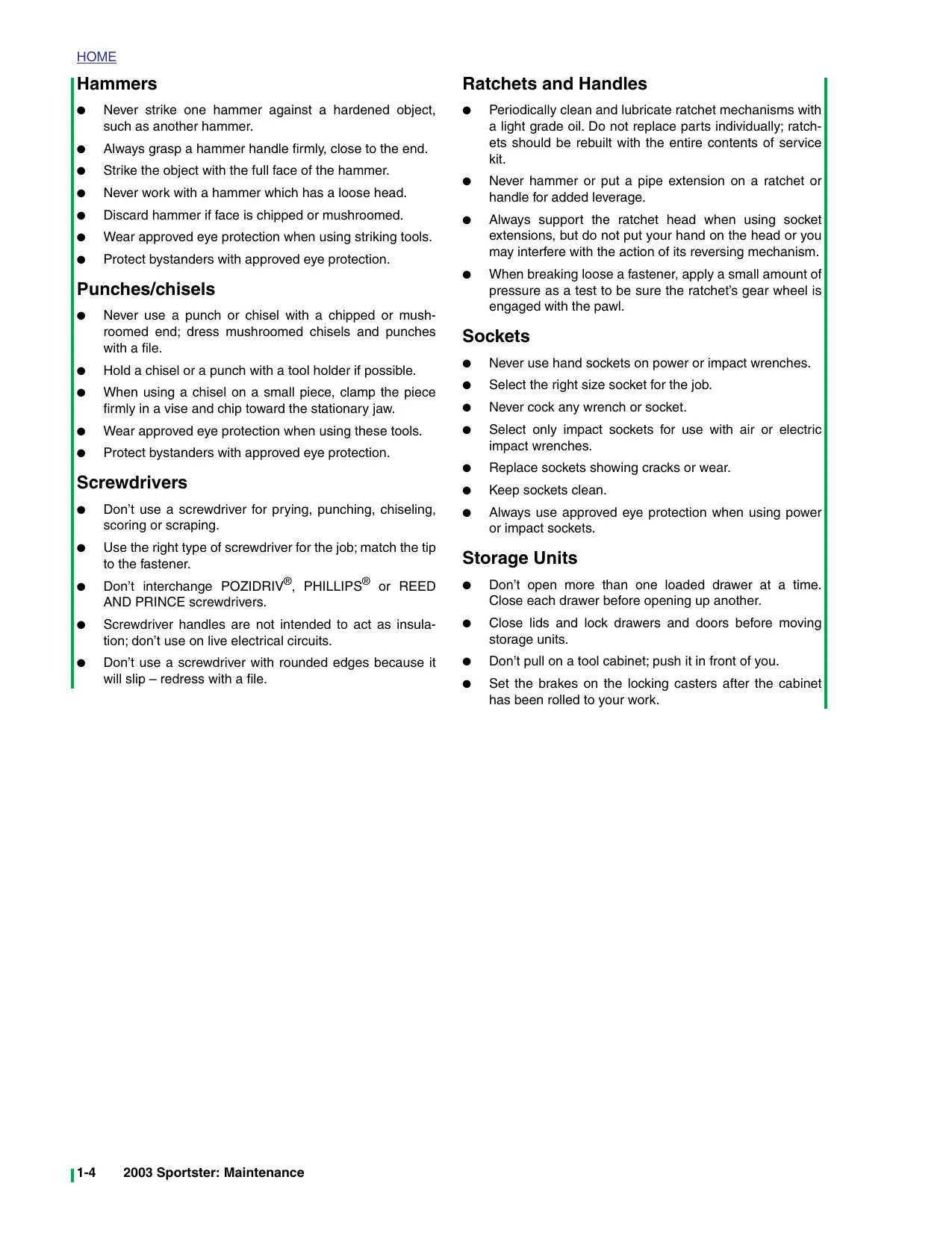

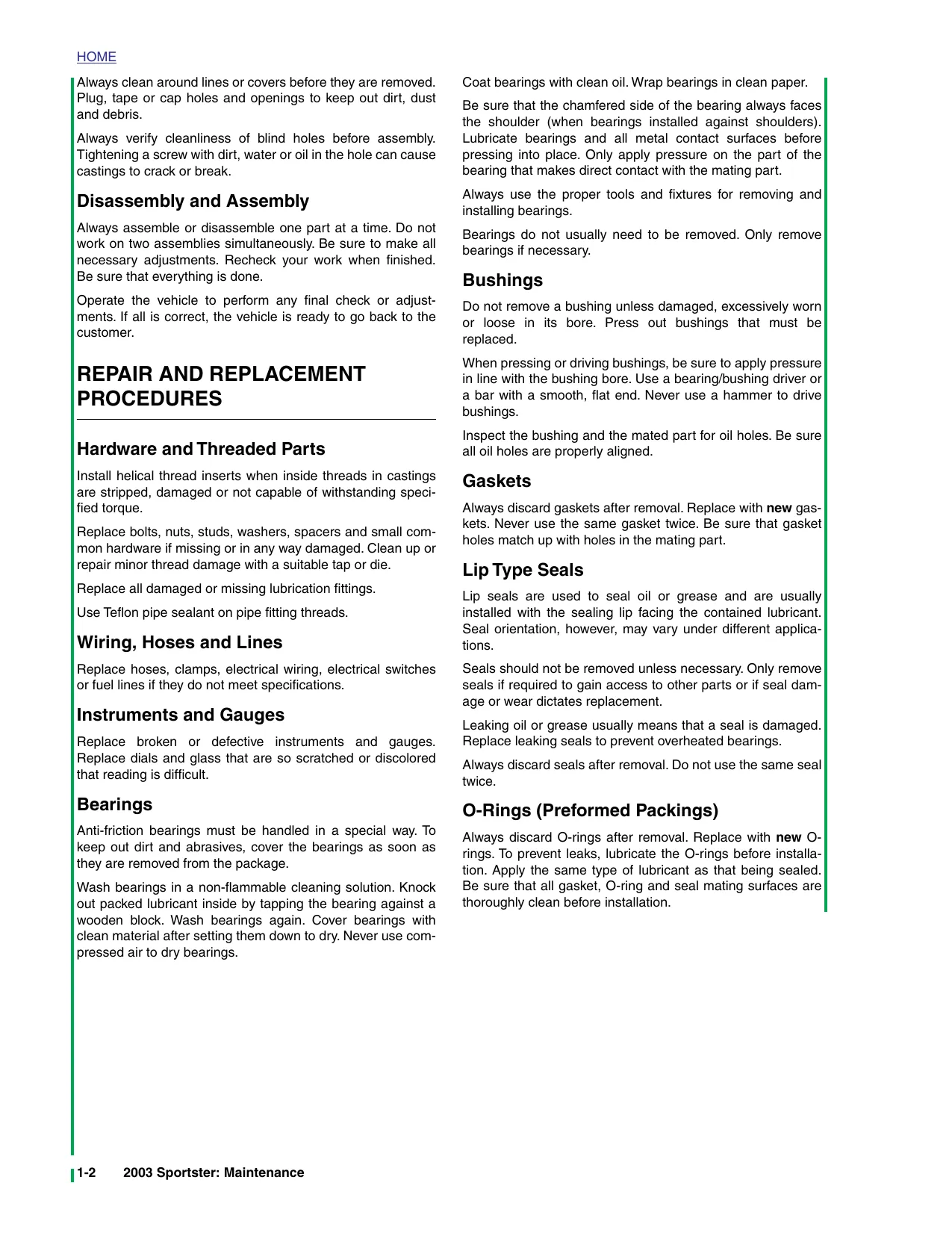

Scheduled Service and Model-Specific Chassis Work

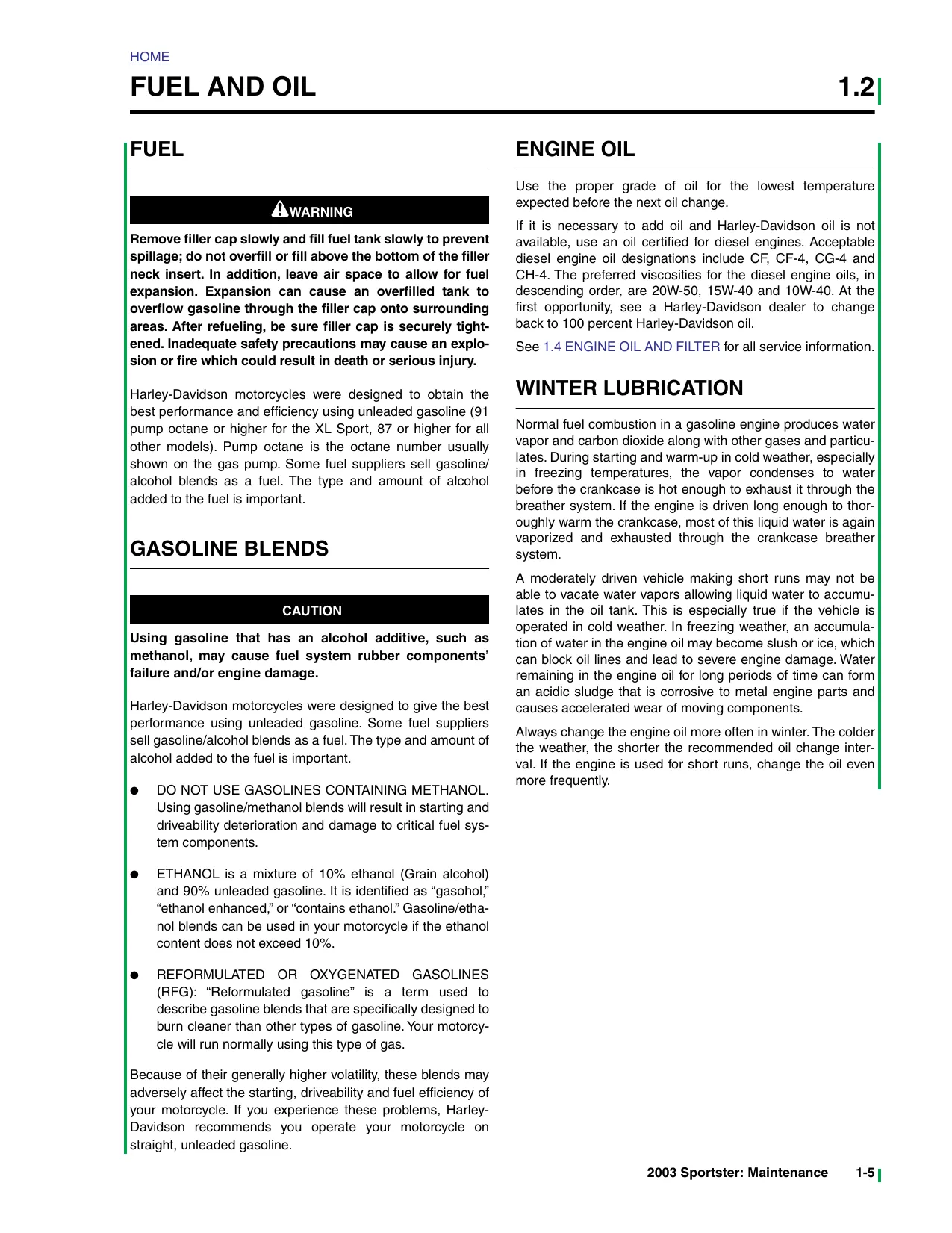

Scheduled service covers engine oil and filter changes, filler-cap/dipstick checks, primary chain tensioning, clutch adjustment, throttle and enrichener adjustment, and rear-belt inspection. Maintenance schedules are accompanied by fluid requirements, critical-fastener tables, and tire-pressure data for solo and passenger loads.

Model-specific chassis sections address Custom forward foot controls and the 883R exhaust system. The 1200S Sport receives separate cartridge-fork disassembly and assembly procedures, plus spring-preload, compression-damping, and rebound-damping adjustments. The XL1200 Sport Front Fork Assembly exploded view identifies its internal components.

Evolution Engine and Drivetrain Repair

Internal engine work includes step-by-step procedures for valve-guide replacement, valve-seat reconditioning, and cylinder boring and honing. Piston-pin bushing service, cam-gear bushing reaming, and pinion-bearing selection are also documented.

Cam, Pinion Gear and Timing Mark Indexing supports valve-train assembly, while Transmission Power Flow traces how the gearbox transmits drive in each gear.

The engine repair text flags potential pushrod and rocker-arm damage from turning the engine too soon during rocker-box assembly. Clutch instructions also warn that excessive diaphragm-spring compression can damage the pressure plate.

Special-tool references identify the Spring Compressing Tool HD-38515-A and Clutch Spring Forcing Screw HD-38515-91 for clutch work. An illustrated tools appendix covers other engine, chassis, and electrical equipment.

Carburetion and Model-Specific Ignition

Carburetor troubleshooting separates overflow, poor idling, hard starting, and acceleration problems. California coverage includes the carbon canister, vapor valve, hose routing, and electrical tests for the air-cleaner butterfly-valve solenoid, supported by the California Evaporative Emissions Control System diagram.

The 1200S single-fire, twin-plug ignition has its own MAP-sensor and cam-position-sensor procedures. Other models use the vacuum-operated electric switch (V.O.E.S.) and a different ignition-module arrangement. These distinctions help match the diagnostic procedure and timing setup to the ignition system being serviced.

Electrical Fault Tracing and Wiring Repair

The diagnostic volume covers starting-circuit voltage drops, starter current draw, stator and regulator testing, and battery load testing. For the 1200S, it explains current and historic trouble codes, check-engine-lamp code retrieval, and Scanalyzer diagnostics using HD-41325.

Breakout Box HD-42682 procedures cover both ignition configurations; non-1200S connections use Harness Adapters HD-42962.

Circuit drawings include Starting Circuit and MAP Sensor Circuit Diagram. Wiring diagrams cover domestic and international models, with separate 1200S and non-1200S layouts for the main harness, ignition, lighting, and horn/instruments.

Connector repair sections cover AMP Multilock, Deutsch, Mini-Deutsch, Packard, and sealed butt splices, with terminal-crimp tables and pin-location views.

Note: Brake and fuel-system repairs, engine lifting, and spring-loaded clutch or fork work require the safety precautions and equipment specified in the manuals.

Valve-Guide and Ignition-Coil Specification Preview

For cylinder-head inspection, the intake valve-stem-to-guide clearance is 0.0008–0.0026 in., with a service wear limit of 0.0035 in. The tables distinguish new-component dimensions from wear limits and also provide assembly torque values, fluid capacities, and other electrical test specifications.

Ignition-coil primary resistance is specified separately: 2.5–3.1 ohms for models other than the 1200S, and 0.4–0.6 ohms for the 1200S.
