Harley-Davidson VRSCA V-Rod 2002–2009 Service Manual (P/N 99501-03)

Harley-Davidson's 2003 VRSCA Service Manual (P/N 99501-03) covers maintenance and repair of the Revolution-powered V-Rod. This is the 2003 factory edition, with U.S. and international VIN information, HDI engine coding, and California emissions equipment.

PDF Access and Diagram Detail

Search, bookmarks, and wiring labels: PDF text search is not available. Embedded bookmarks provide chapter and subsection navigation. Small wiring labels require zooming, including connector numbers, pin assignments, and wire-color codes.

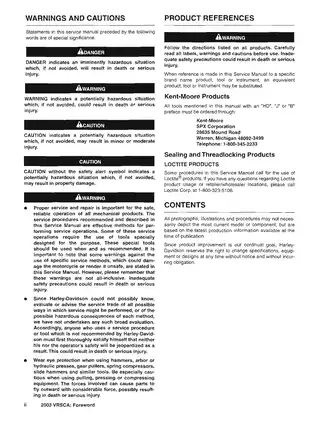

One 446-page printable PDF, including one added cover page and 445 pages of the factory publication.

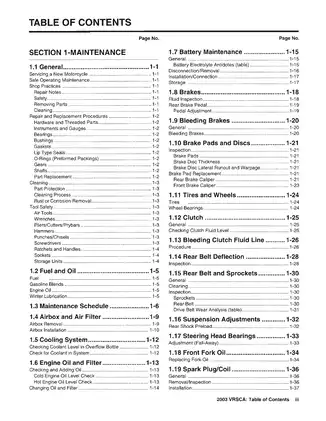

Engine, Chassis, and System Service

These selected service topics show the range of work covered. Additional subjects include exhaust-system removal and seat-latch replacement.

• Engine and clutch: Step-by-step procedures for top-end disassembly, cylinder-head and valve-seat service, oil-pump replacement, clutch repair, and cam-drive assembly and timing.

• Crankcase and transmission: Crankshaft, counterbalancer-bearing, piston, and cylinder-liner work; input/output shaft disassembly, bearing and seal replacement, gear/washer orientation, and reassembly.

• Chassis and final drive: Frame and lower rails, engine mounts, wheels and sealed bearings, rim runout and balancing, front fork/steering head, rear fork/shocks, and belt/sprocket service.

• Brakes and hydraulic clutch: Master-cylinder and caliper disassembly, inspection and assembly, brake and clutch bleeding, and pad/disc inspection and replacement procedures.

• Cooling system: Pressure-cap and system-pressure tests, fluorescent-dye leak detection, blown-gasket checks, coolant replacement, thermostat/water-pump service, and radiator/oil-cooler removal.

• Fuel and EFI: Fuel-tank and fuel-module service, California EVAP equipment, fuel-pressure and intake-leak tests, injector service, and engine-management component replacement.

• Electrical components: Starter and solenoid replacement, alternator and voltage-regulator service, battery testing, relay/fuse blocks, TSSM, instrument cluster, and wiring diagrams.

Routine service content is usable by experienced owners, but internal engine, brake, EFI, and electrical work is best suited to trained technicians with the specified tools and established shop practices.

Maintenance and Valve Adjustment

The factory service schedule accompanies oil/filter changes, cooling-system checks, battery care, drive-belt adjustment, steering-head setup, and fork-oil replacement. Valve-lash measurement, cam-timing verification, secondary cam-chain adjustment, headlamp alignment, critical-fastener checks, and storage preparation are also covered.

Section-specific tables supply torque values, fluid capacities, approved lubricants, inspection limits, clearances, and battery/charging data. Appendix D supplies valve-tappet shim tables and calculation worksheets for selecting replacement shims from recorded lash measurements.

Engine Diagnosis and Internal Repair

Valve-train noise, compression, cylinder leakage, oil pressure, and excessive oil consumption or smoking are addressed. The compression-test interpretation table and leakage-test guidance help distinguish ring, valve, and head-gasket problems before major disassembly.

Cylinder-head procedures extend through valve-guide replacement, reaming and honing, valve-seat cutting, and final inspection. Valve-lash and secondary cam-chain adjustments can be performed with the engine in the chassis; other top-end repairs and bottom-end work require engine removal.

Fuel Delivery and Cooling Diagnosis

Fuel-module procedures distinguish the pump, suction-side and pressure-side filters, and fuel-level sender. The injection chapter covers fuel-rail pressure-regulator service and removal/installation of the ECM, TP, IAT, ECT, IAC, and MAP components.

The cooling-system test table relates pressure-gauge behavior to leak severity and the next diagnostic check. California EVAP coverage includes the purge solenoid, vapor valve, charcoal canister, and hose routing; non-California equipment uses a resistive plug at the purge-solenoid connector.

Cooling-system service requires a cold engine before the pressure cap is opened, and the fuel chapters address safe pressure relief before high-pressure lines are disconnected.

Wiring, Connectors, and Diagnostic Scope

Appendix B includes two main-harness sheets and ignition, charging, starting, lighting, horn/instrument, and security circuit diagrams. Amp Multilock, Deutsch, Mini-Deutsch, Packard, sealed-splice, and ECM connector procedures accompany connector-location tables.

Separate diagnostic manual required: Electronic fault diagnosis, sensor tests, and alternator/regulator output checks are referred to the VRSCA Electrical Diagnostic Manual, P/N 99499-02, which is not included. The starter, starter relay, and solenoid are replacement-only components. Parts-ordering information remains in the applicable parts catalog.

Assembly Views and Workshop Tools

Illustrations include Steel Perimeter Frame and Bolt-on Lower Frame Rails, Front Fork/Steering Head Components, and Cam Drive. Transmission Input Shaft and Output Shaft Assemblies, Engine Coolant Flow, and the 12-pin Deutsch Connector exploded view provide further assembly detail.

The tool appendix identifies the HD-45317 engine assembly support fixture, HD-45306 crankshaft locking pin, HD-45491 tappet compressing tool, and HD-45313 cylinder-liner remover/installer. It also illustrates the HD-45318 clutch hub holder, HD-45335 cooling-system pressure tester, and HD-44750 Digital Technician.

Engine repair cautions: Clockwise crankshaft rotation during cam-chain work can let the chain jump a sprocket and cause engine damage. Prying on crankcase sealing surfaces can damage the cases and cause leaks.

Examples of Oil- and Fuel-Pressure Specifications

The engine oil-pressure check specifies 3–6.5 bar at 3,000 rpm with oil at 70°C (158°F). These conditions accompany the lubrication-system diagnosis.

The fuel-pressure test specifies a steady 380–425 kPa (55–62 psi) as engine speed changes. This section connects incorrect pressure with cranking-without-starting, cutouts, hesitation, and loss of power.
