2002 Harley-Davidson V-ROD VRSCA Service Manual (P/N 99501-02A, 99499-02)

• Harley-Davidson factory set for 2002 VRSCA models: Service Manual P/N 99501-02A and Electrical Diagnostics P/N 99499-02. The download contains 746 PDF pages in 42 files: 446 service-manual pages, a 290-page electrical-manual sequence, eight separately duplicated wiring-diagram sheets, and a two-page master contents file.
• Engine and drivetrain repair coverage extends from motorcycle stripping and engine removal through top-end disassembly, cylinder-head service, crankcase separation, crankshaft and counterbalancer bearing work, piston/cylinder-liner inspection, clutch repair, and cam installation and timing.
• Detailed chassis and hydraulic procedures cover lower frame rails and engine mounts, brake and clutch master cylinders, calipers and bleeding, wheels and sealed bearings, disc/rim runout checks, front-fork overhaul, steering-head service, rear suspension, and final-drive belt components.

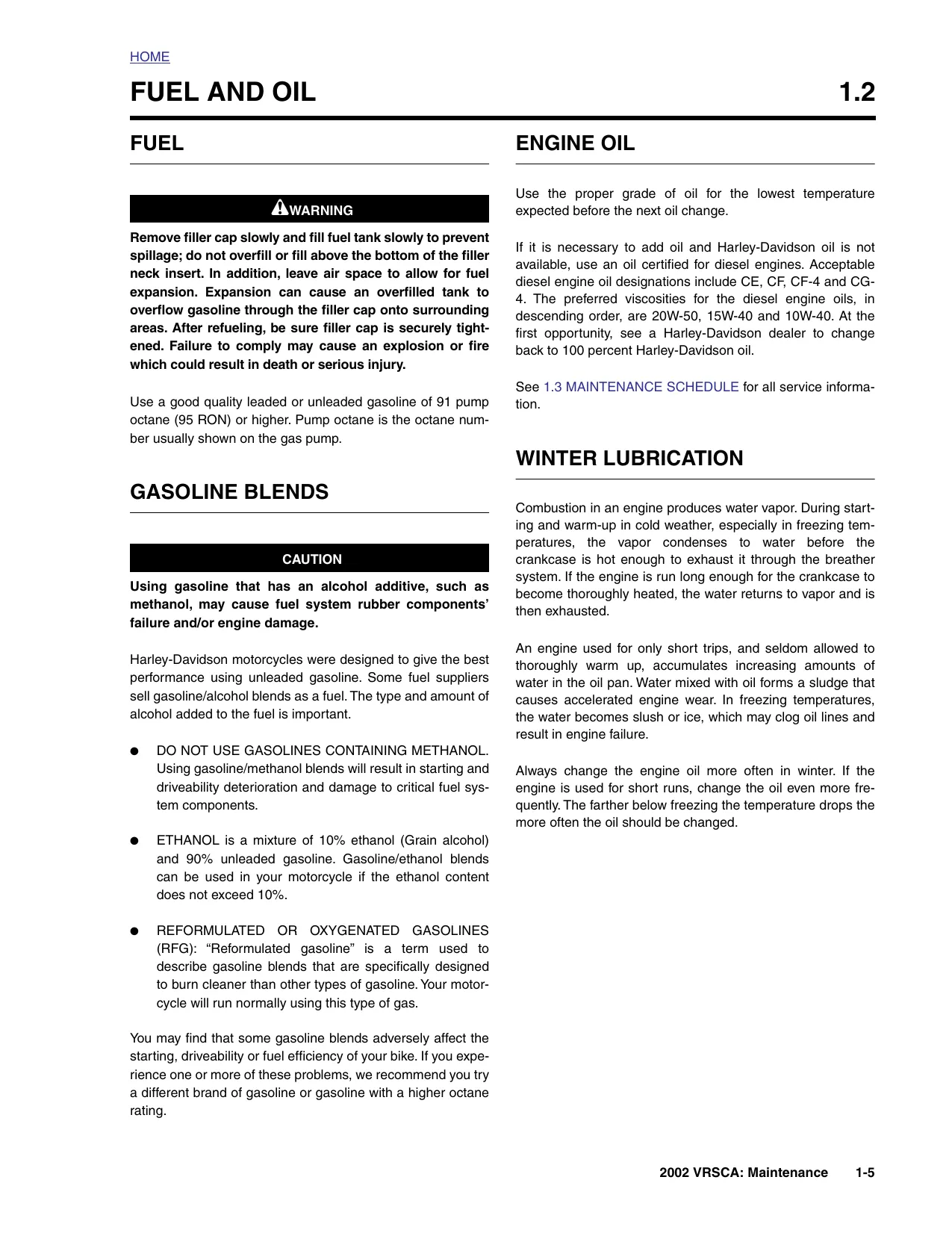

• Cooling, fuel, and transmission work includes coolant-system pressure testing, thermostat and water-pump service, radiator/oil-cooler removal, fuel-pump/filter/sender and tank service, California evaporative-emissions hardware, and input/output shaft disassembly and assembly.
• Electrical fault isolation covers starting and charging, the instrument module, TSM/TSSM security functions, and ECM engine management, with DTC tables and guided checks for no-start, stalling, fuel-system electrical faults, fan operation, idle control, misfire, and intermittent combustion.
• Model-specific wiring diagrams are backed by connector-location views, pin tables, circuit diagrams, diagnostic flowcharts, and repair procedures for Amp Multilock, Deutsch, Mini-Deutsch, Packard, and sealed-splice connections.

Coverage is specific to the 2002 VRSCA, not the later VRSC family as a whole. The VIN material identifies the standard VRSCA and the 98 HP HDI engine designation, while applicable sections distinguish North American/HDI security configurations and California evaporative-emissions equipment. This set is suited to experienced mechanics who are comfortable with internal engine repair and electrical fault tracing; most diagnostic routines assume access to a DVOM, the specified breakout boxes, and familiarity with connector terminals.

How the Two Manuals Work Together

The service manual handles maintenance, mechanical repair, component removal, inspection, assembly, and final adjustment. Its EFI, starter, and electrical chapters deliberately refer troubleshooting to P/N 99499-02. The Electrical Diagnostics manual then supplies the symptom charts, self-diagnostics, DTC branches, circuit tests, Scanalyzer notes, and wire-harness data before directing the mechanic back to the service manual for physical component access or replacement. Both sides of that factory workflow are included here.

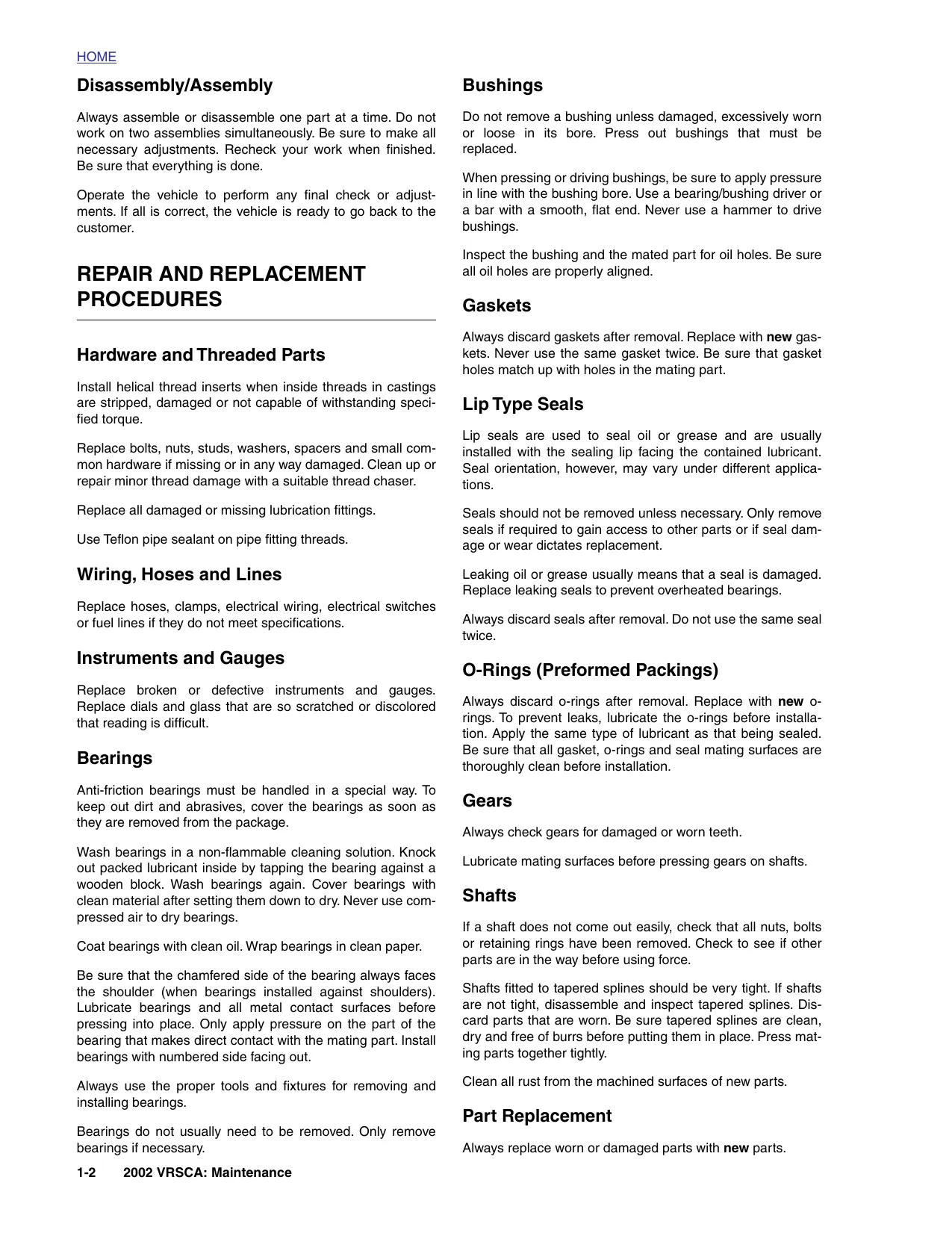

Mechanical Repair Depth

Engine coverage starts with oil-flow diagrams, oil-pressure testing, compression and cylinder-leakage checks, service wear limits, and troubleshooting by symptom. The repair chapters go well beyond routine maintenance: they address valve and seat inspection, oil-pump service, clutch-pack measurement, crankcase alignment, color-coded crankshaft bearing selection, connecting-rod and journal inspection, cylinder-liner removal, cam-chain installation, and valve-lash adjustment. Appendix D adds valve-lash worksheets and shim-selection tables, while the individual sections provide torque sequences, capacities, clearances, and inspection limits.

Transmission coverage separates input- and output-shaft service, with gear, bearing, washer, retainer, shift-fork, and seal inspection shown in assembly views. Chassis procedures include brake caliper and master-cylinder rebuilding, hydraulic clutch actuator service, fork disassembly, steering-head bearing replacement and fall-away adjustment, wheel-bearing replacement, tire service, and rear-fork removal. Cooling-system chapters add pressure-cap and system leak testing, coolant-flow diagnosis, hose routing, and service for the thermostat, pump, radiator, fans, and oil cooler.

Electrical Diagnostics, Tools, and Illustrations

The diagnostic manual supports Digital Technician HD-44750, Scanalyzer HD-41325 with cartridge HD-41325-95C, and instrument-module self-diagnostics. Major factory tools identified in the set include ECM Breakout Box HD-43876, TSM/TSSM Breakout Box HD-42682, Engine Assembly Support Fixture HD-45317, Crankshaft Locking Pin HD-45306, Cylinder Liner Remover/Installer HD-45313, and Transmission Assembly Retainer HD-45301.

Particularly useful illustrations include Oil Flow A/B/C, Engine Coolant Flow, Transmission Input Shaft and Output Shaft Assemblies, Cam Drive Timing Marks, Charging System Circuit, and the TSM/TSSM Diagnostic Check. These are accompanied by component-specific torque tables, pressure-test data, fluid specifications, wear limits, valve-adjustment data, and electrical test values rather than isolated specifications without repair context.

During cam or valve service, rotating the engine clockwise can unload cam-chain tension, move the cams out of time, and cause engine damage. Prying on the crankcase sealing faces can damage the cases and create leaks, while striking the final-drive sprocket locking-device installer can damage the output-shaft bearing.

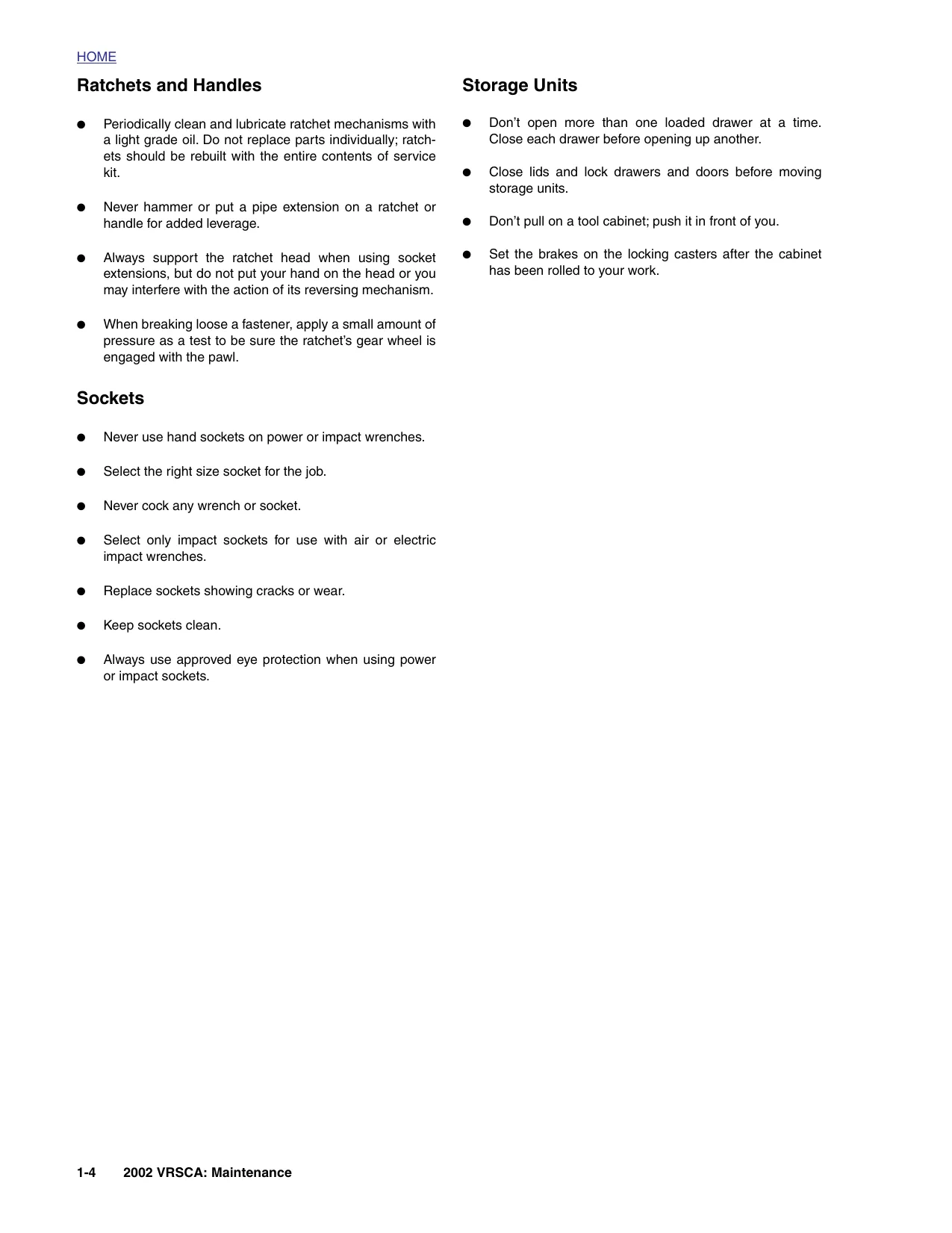

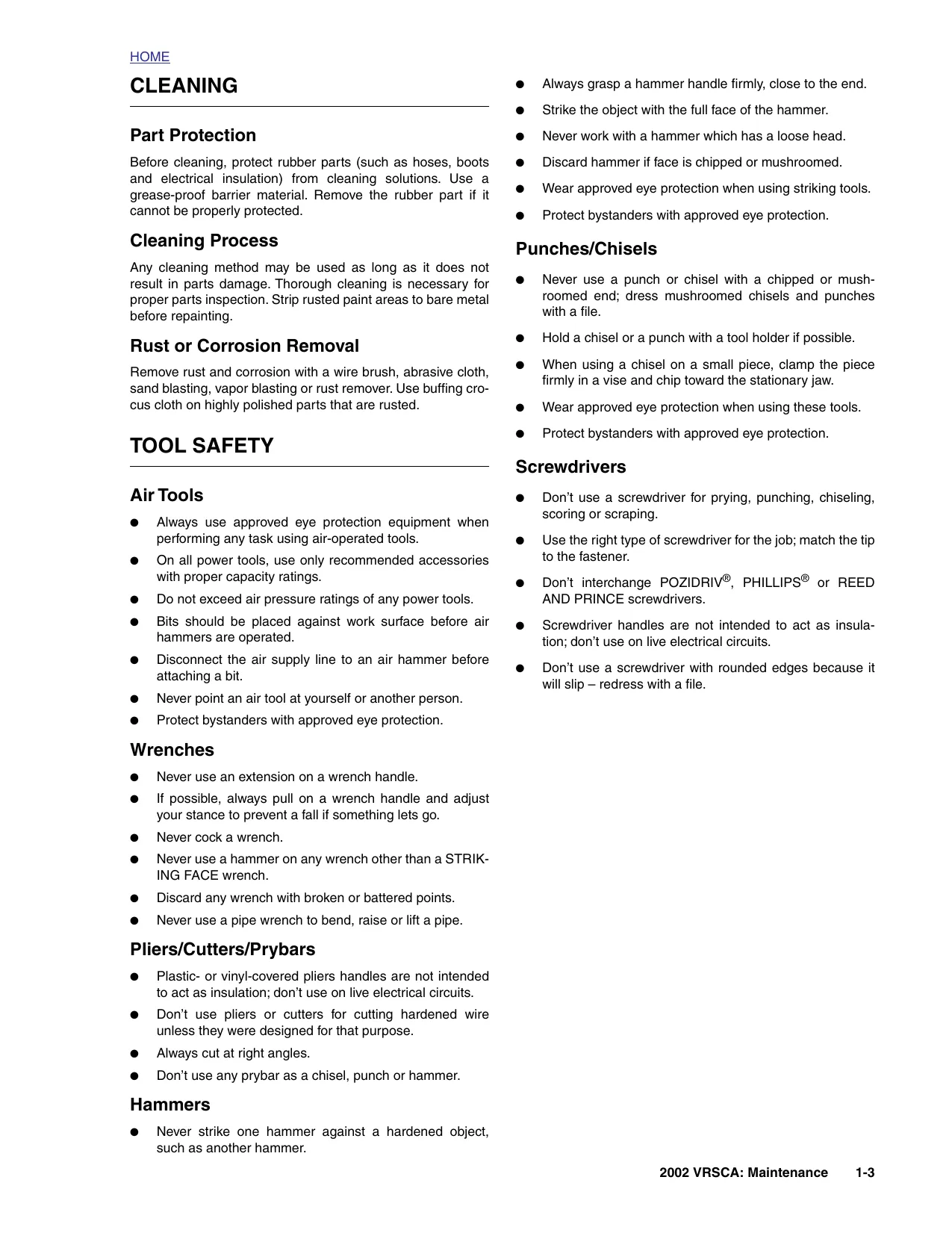

Several procedures involve a supported engine, pressurized fuel or coolant, hydraulic brakes and clutch components, and high-current battery tests. Follow the factory warnings, use properly rated lifting and support equipment, and isolate the relevant system before beginning repair work.
