2006 Harley-Davidson Softail Service Manual (653 Pages)

Complete factory service documentation for Softail models including maintenance, engine, transmission, and electrical systems. Covers all 2006 Softail variants with detailed repair procedures and specifications.

4.3starstarstarstarstar_border(3)
visibility Preview Available

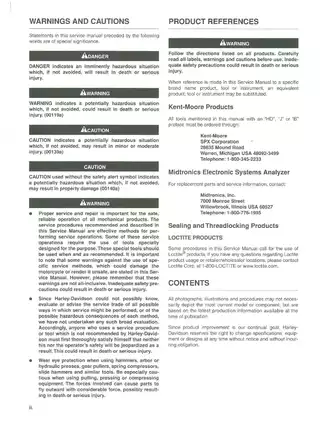

Harley-Davidson 2006 Harley-Davidson Softail Service Manual (653 Pages) manual page preview - page 1 of 653

Sample pages from the 2006 Harley-Davidson Softail Service Manual (653 Pages) manual

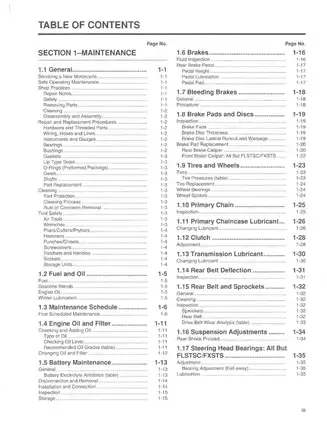

Harley-Davidson 2006 Harley-Davidson Softail Service Manual (653 Pages) manual preview page 1 - thumbnail

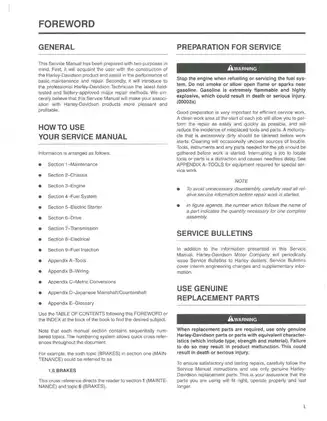

Harley-Davidson 2006 Harley-Davidson Softail Service Manual (653 Pages) manual preview page 2 - thumbnail

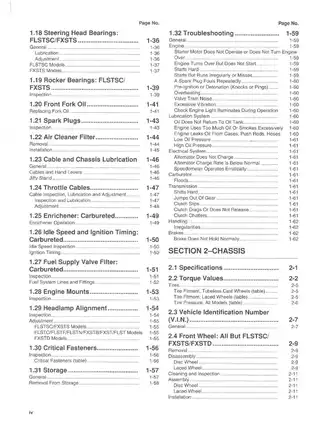

Harley-Davidson 2006 Harley-Davidson Softail Service Manual (653 Pages) manual preview page 4 - thumbnail
Harley-Davidson 2006 Harley-Davidson Softail Service Manual (653 Pages) manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.65 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: Harley-Davidson Softail, Fat Boy, Heritage Softail Classic, Night Train
Sub-models / Variants: FLSTC, FLSTF, FLSTN, FLST, FXST, FXSTB, FXSTS, FLSTSC, FXSTD
Build Years: 2006
Technical Data:

  • Engine oil capacity: 3.5 qt. (3.31 L)
  • Transmission lubricant capacity: 20–24 oz. (590–710 mL)
  • Primary chaincase lubricant capacity: 26 oz. (769 mL)
  • Fork oil capacity: 12.0–12.9 oz. (356–382 mL) per side
  • Spark plug gap: 0.038–0.043 in. (0.97–1.09 mm)
  • Idle speed: 950–1050 RPM
  • Brake disc lateral runout limit: 0.008 in. (0.2 mm)
  • Drive belt deflection: 1/4–5/16 in. (6.4–7.9 mm) at 10 lbs (4.5 kg) force
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
23598 / Michael Sanchez
File Size:
151.51 MB
File Type:
PDF
Language:
English
Pages:
653
Printable:
Yes
Category:
Motorbike
Last updated / verified
Dec 15, 2025

Harley-Davidson Manual Features & Content Preview

2006 Harley-Davidson Softail Maintenance Scope

  • Covers 2006 Harley-Davidson Softail models including Fat Boy, Heritage Softail Classic, and Night Train with fuel-injected and carbureted engines
  • Official OEM publication containing torque tables, lubrication charts, electrical diagnostics, and mechanical maintenance procedures
  • Contains 47 exploded-view diagrams, 8 wiring-related schematics, and 3 primary maintenance quick-reference tables
  • Laid out for standard letter and A4 printing
  • Full-text search finds any part number in seconds
  • This 2006 edition provides the foundation for the final carbureted Softail engine tuning configurations before the complete transition to electronic fuel injection architecture

Procedural and Diagnostic Documentation

This 653-page factory publication provides the complete set of maintenance procedures for the 2006 Softail line. The opening chapters detail routine servicing, covering everything from pre-ride inspections to seasonal preparation. Technicians and owners will find extensive data on engine oil and primary chaincase lubricant changes, alongside specific adjustment procedures for the clutch and throttle cables. The manual documents the full service scope for the steering head bearings, rocker assemblies, and front fork suspension, including specialized tools required for the Springer front-end variants.

Technical Specification Highlights

Precise reference values ensure the 2006 Harley-Davidson Softail meets factory standards during reassembly. Cylinder head bolt torque values are documented in a multi-stage sequence. The spark plug electrode gap is specified at 0.038–0.043 inches. Transmission lubricant volume is set at 20–24 ounces. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. This official 653-page service manual is the definitive reference for the 2006 Harley-Davidson Softail, providing complete maintenance, chassis, and engine specifications for the air-cooled Twin Cam 88B platform.

Manual FAQ, Purchase & Download Details

What content is included in the engine chapters for the 2006 Softail series? keyboard_arrow_down

Engine chapters include detailed service sections such as top end and bottom end overhaul procedures, breather operation, and oil pump coverage. These sections also provide reference data for service wear limits and engine torque values.

Is there a designated chapter for electrical system maintenance and component locations? keyboard_arrow_down

Yes, Section 8 is dedicated to electrical systems and includes information on the ignition system, battery testing, fuse locations, relays, and the main wiring harness.

Are wiring diagrams and connector pinout references included for the various Softail models? keyboard_arrow_down

Yes, the manual contains extensive electrical documentation including specific connector pin assignments and index references for wiring diagrams. Appendix B provides comprehensive details for various electrical connector types such as Amp Multilock, Deutsch, and Packard series. These resources help identify wiring and terminal configurations throughout the motorcycle electrical system.

Which sections contain service information for transmission and primary drive lubricant capacities? keyboard_arrow_down

Fluid capacities for the transmission and primary chaincase are listed within the specification tables in their respective sections of the manual.

Can I find exploded views and component assembly sequences for the Softail engine and chassis? keyboard_arrow_down

Document contains numerous exploded views and assembly overviews that illustrate how components relate to one another within the engine and chassis systems. These reference illustrations provide visual support for the maintenance procedures described throughout the manual.

Customer Reviews

Read what our customers say about this Harley-Davidson Motorbike manual and share your own experience.
