2002 Harley-Davidson Sportster models XL883, XL883 Hugger, XL883C Custom, XL883R, XLH1200, XL1200C Custom, and XL1200S Sport Service & Electrical Diagnostics Manual Set (P/N 99484-02A)

The Service Manual supplies mechanical repair and base electrical procedures. Electrical Diagnostics adds circuit tests, fault-isolation charts, connector repair, and model-specific wiring diagrams.

PDF Search, Navigation, and File Breakdown

Text search and wiring detail: The chapter PDFs contain selectable text and section bookmarks. The separate section-contents PDFs have no bookmarks. Small wiring-diagram labels remain readable when enlarged.

The ZIP contains 32 printable PDFs. The two publications total 579 pages; a separate two-page master contents file brings the set to 581 PDF pages. The publication counts already include 12 section-contents pages, 12 blank companion pages, and 12 notes pages.

Engine, Chassis, and Electrical Repair Coverage

Selected coverage: The areas below are examples from the set, which also documents storage preparation and speed-sensor testing.

• Engine repair: Step-by-step engine removal and installation, cylinder-head and valve-train work, piston service, oil-pump testing, cam-gear timing, crankcase separation, and flywheel and bearing inspection.

• Wheels, forks, and brakes: Sealed wheel-bearing service, cast and laced wheel work, wheel truing, hydraulic brake repair and bleeding, steering-stem service, and separate XL 1200S front-fork overhaul procedures.

• Drive and transmission: Primary-chain adjustment, drive-belt inspection and tensioning, clutch and primary-drive removal, internal transmission repair, and final shifter-pawl adjustment.

• Fuel and starter systems: CV carburetor repair, fuel tank and supply-valve work, California evaporative-emissions components, and electric-starter and solenoid service.

• Electrical service: Starter current-draw and solenoid tests, charging-system checks, battery load testing, ignition timing, instrument diagnosis, turn-signal canceller tests, and lamp and switch repair.

• XL 1200S diagnostics: Scanalyzer code retrieval, breakout-box and wiggle tests, dedicated MAP-sensor, ignition-coil, tachometer, bank-angle-sensor, and module-fault charts, plus separate 1200S and non-1200S wiring diagrams.

This set is suited to experienced owners and service technicians comfortable with mechanical disassembly, electrical testing, and the specified workshop tools.

Model-Specific Differences

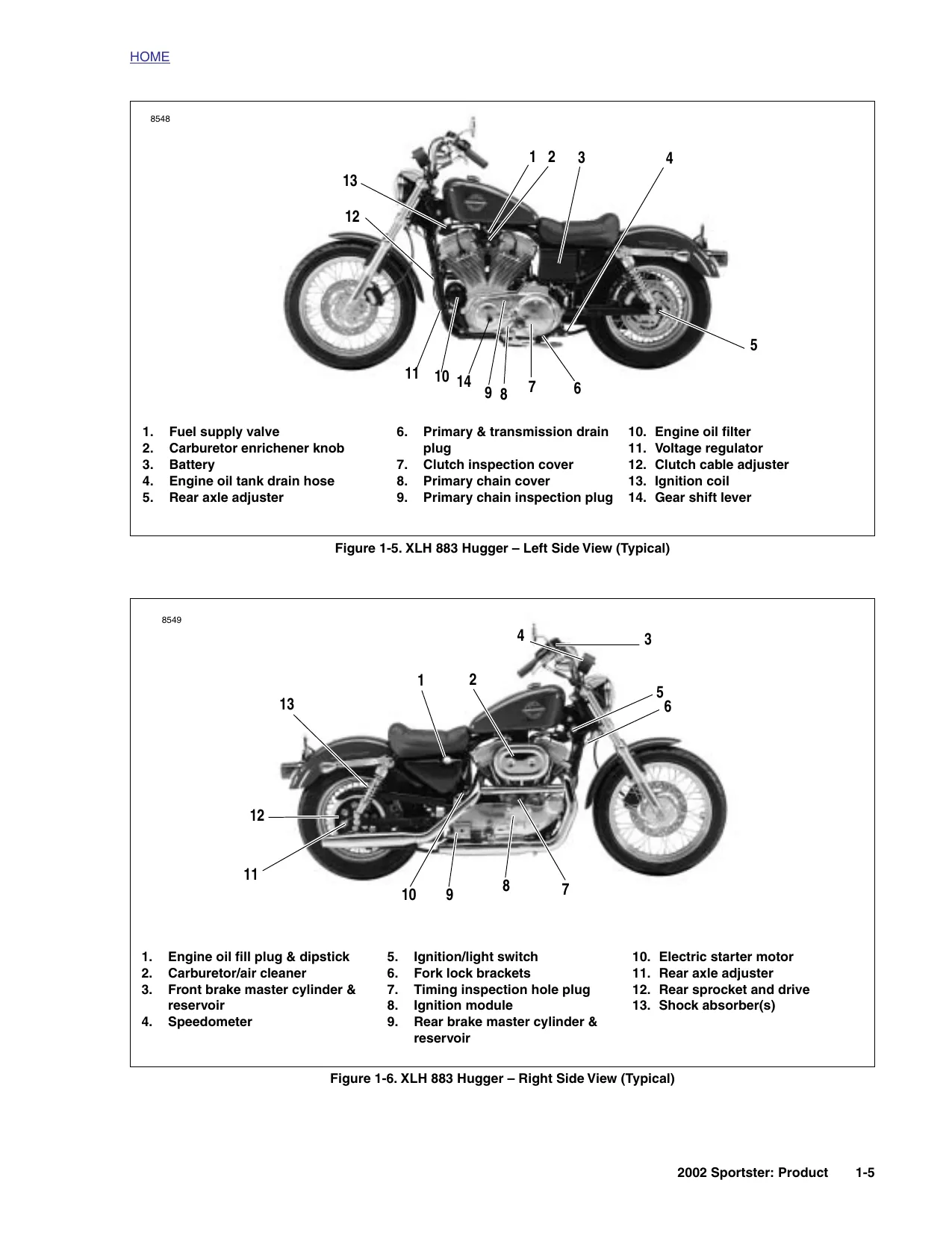

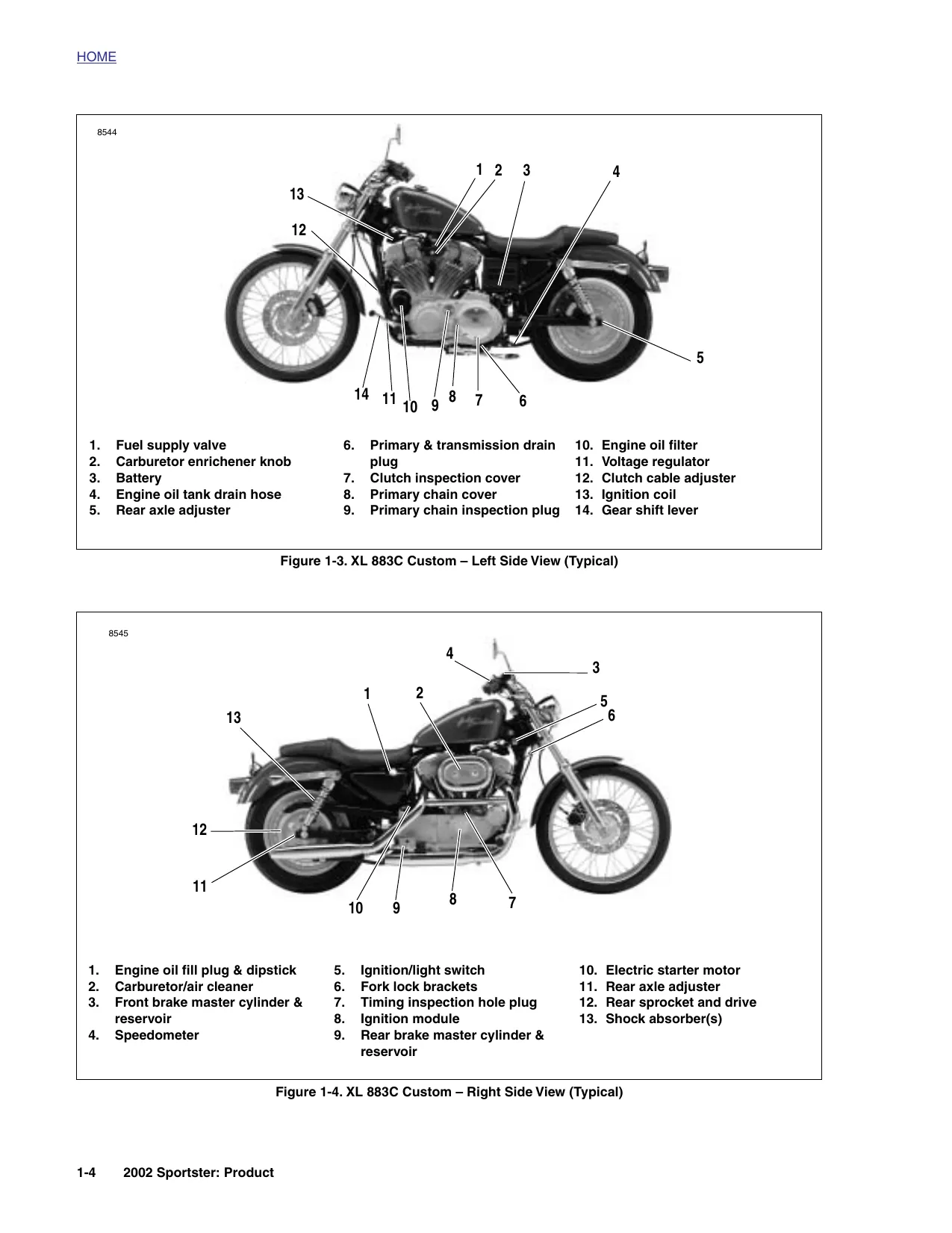

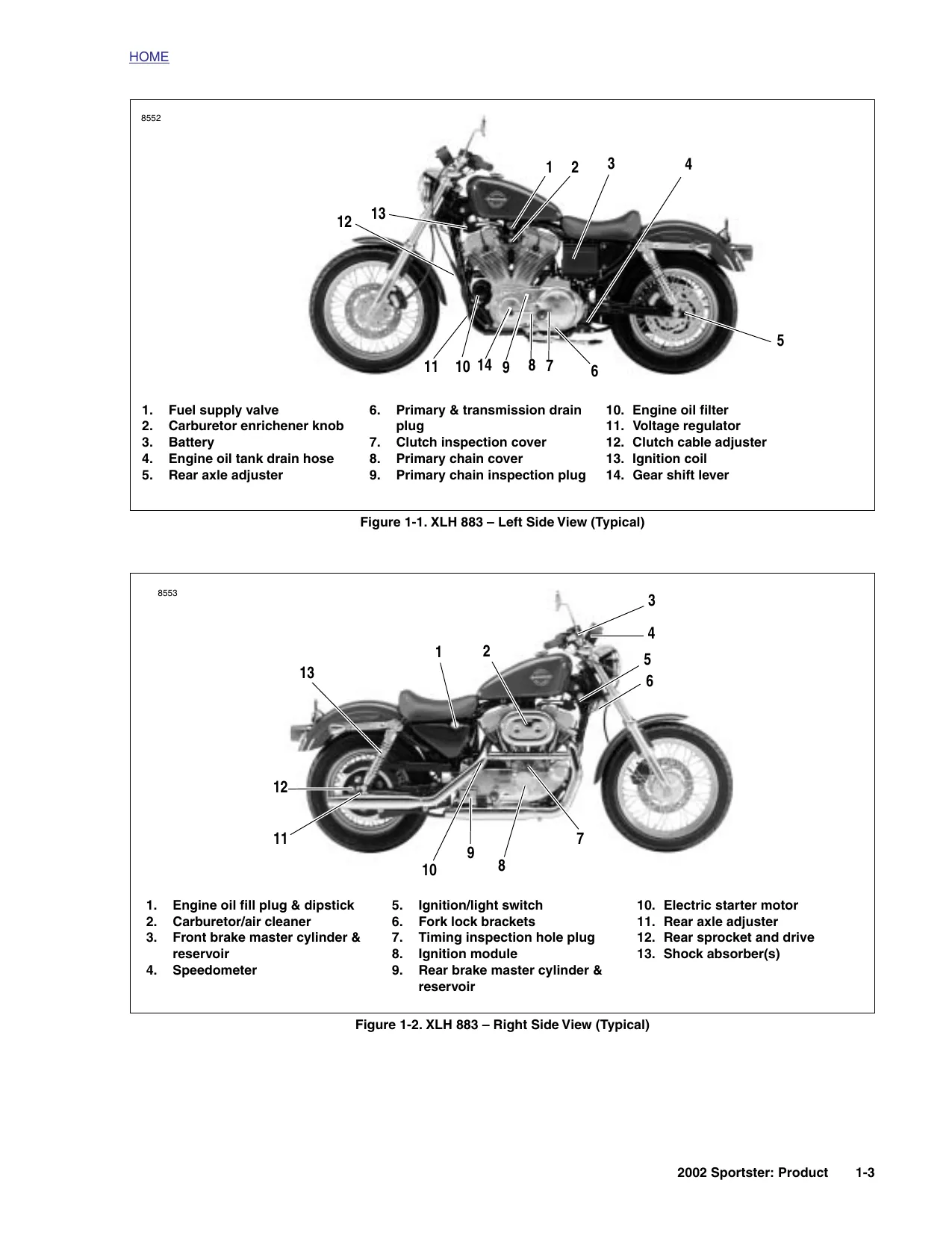

The VIN chapter maps factory model designations to the seven variants. Repair coverage includes a dedicated 883R exhaust section, Custom forward-foot-control procedures, an HDI fork-lock section, and separate XL 1200S front-fork disassembly, inspection, assembly, and installation procedures.

Wheel procedures distinguish cast assemblies and 16-, 19-, and 21-inch laced rims. Carburetor specifications distinguish 49-state, California, and HDI/Swiss setups. The electrical sections separate the XL 1200S single-fire twin-coil ignition with MAP and cam-position sensing from the V.O.E.S.-controlled system on the other models; wiring drawings distinguish domestic and international configurations.

Engine and Transmission Repair

Engine diagnosis includes compression, cylinder-leakdown, and oil-pressure checks. Repair procedures cover rocker arms, valve guides and seats, cylinders, pistons and rings, connecting-rod bushings, the gerotor oil pump, tappets, cam and pinion timing-mark indexing, crankcase separation, flywheel end play, and crankshaft bearings.

Transmission repair reaches the access door, shifter forks and drum, mainshaft and countershaft, main drive gear, case bearings, installation, and shifter-pawl adjustment. These procedures and the accompanying inspection limits help identify which components need attention before reassembly.

The illustrated tool section identifies the HD-42310 Engine/Transmission Stand with HD-42310-3 Sportster Cradle, HD-44060 Wheel Bearing Remover/Installer, HD-35381 Belt Tension Gauge, and HD-38515A/HD-38515-91 clutch spring tools. Their use is tied to engine handling, sealed-bearing service, belt setup, and controlled clutch-spring service.

Electrical Diagnostics and Wiring

The XL 1200S fault charts address MAP-sensor, battery-voltage, front and rear ignition-coil, tachometer, bank-angle-sensor, RAM/ROM/EPROM, and ignition-module faults. Other models have a separate ignition diagnostic path. Listed test equipment includes the HD-41325 Scanalyzer, HD-42682 Breakout Box, HD-42962 adapters, and HD-41354 Speedometer Tester.

Full-page schematic examples include the 1200S Main Harness, Starting & Charging, separate 1200S and non-1200S Ignition Circuits, Horn & Instruments, and Lights. Connector chapters cover Amp Multilock, Deutsch, Mini-Deutsch, Packard, and sealed butt-splice systems, with terminal-location tables, crimp-tool data, exploded connector views, and completed-repair inspection criteria.

Workshop References and Repair Cautions

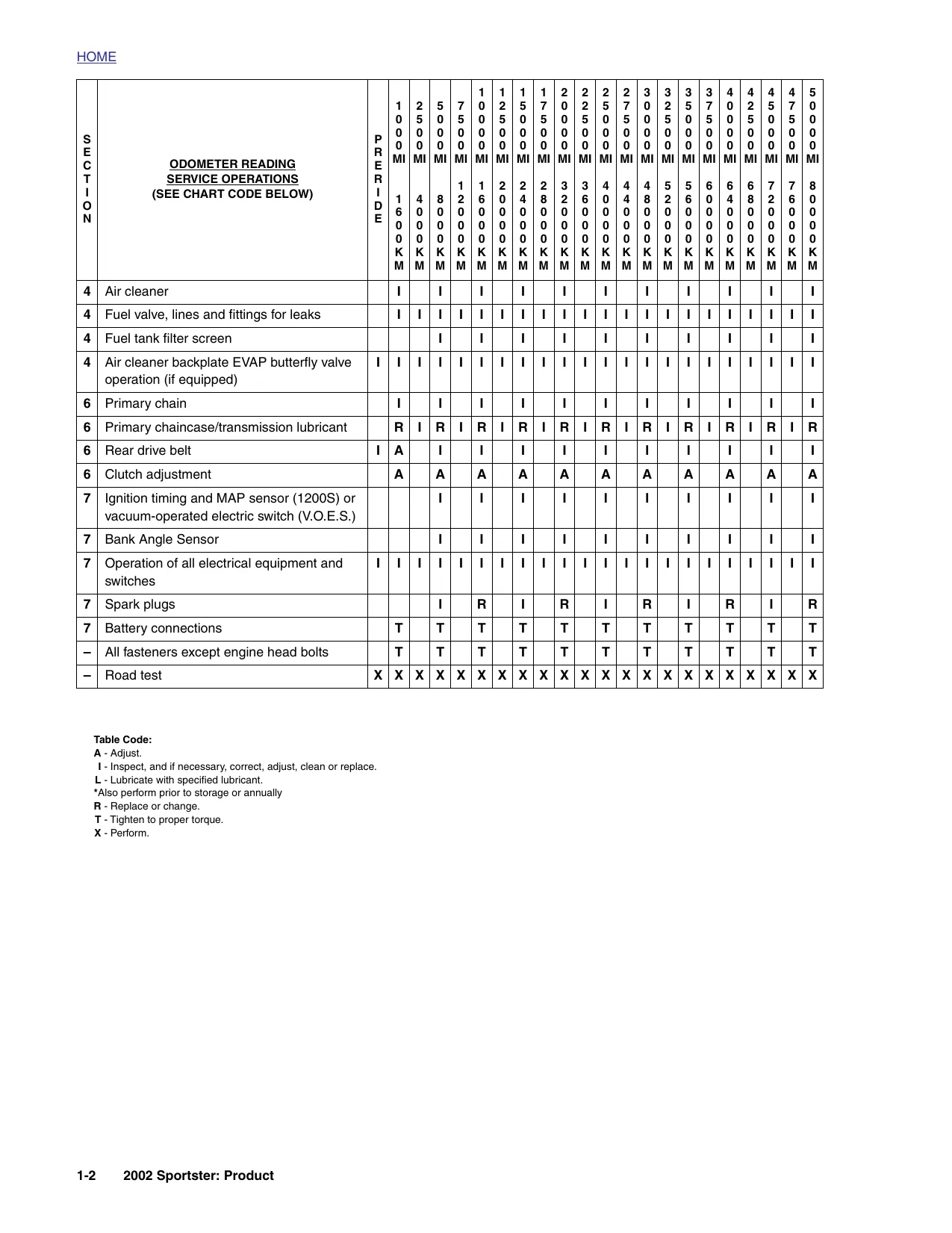

The tables provide maintenance intervals, approved fluids and capacities, component torque values, wheel and brake inspection limits, engine wear tolerances, drivetrain adjustment data, and electrical resistance, voltage, and current-test specifications.

The brake chapter distinguishes single- and dual-disc master-cylinder repair-kit parts; mixing them can impair brake operation. The XL 1200S fork section warns that unthreading the rebound adjuster during disassembly can reduce its adjustment range.

The clutch section identifies the hub nut's left-hand threads and the specified spring compressor. Brake-system guidance warns that mineral-base cleaners can continue damaging rubber components after assembly. The service procedures also address secure motorcycle support, battery disconnection where specified, and low-speed brake checks after hydraulic work.

Chain Free Play, Disc Wear, and Compression: Sample Values

For primary-chain field adjustment at the tightest chain position, the manual specifies 3/8–1/2 in. (9.5–12.7 mm) vertical free play with a cold engine and 1/4–3/8 in. (6.3–9.5 mm) with a hot engine.

Minimum brake-disc thickness is 0.200 in. (5.08 mm) at the front and 0.230 in. (5.84 mm) at the rear. The engine specifications list a 9.0 to 1 compression ratio for the 883 and standard 1200 configurations and 10.0 to 1 for the 1200S Sport.
