Harley-Davidson FLH/FLT/FXR Evolution 1984–1998 Repair Manual

This service and repair manual covers 1984–1998 Harley-Davidson FLH, FLT, and FXR series models with the air-cooled, four-stroke OHV Evolution V-twin. It also covers 1985 FXSB and FXEF models, 1985–1986 FXWG models, and specific 1999 FXR2/FXR3 applications. The 1999 material does not extend to FL touring models.

PDF Search, Bookmarks and Diagram Detail

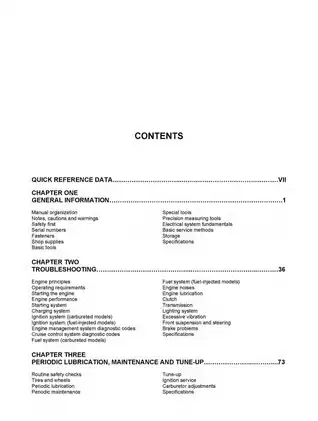

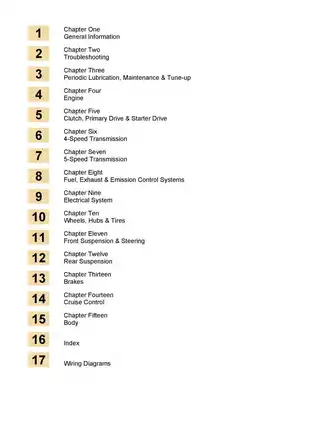

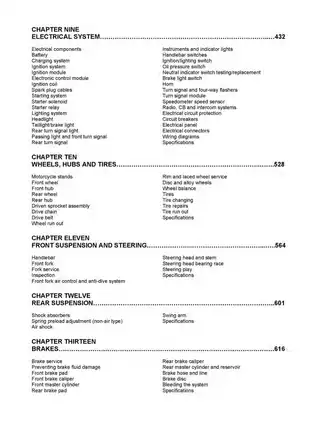

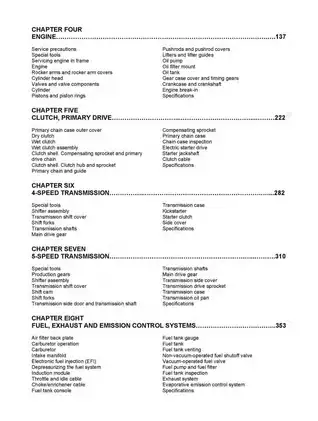

Navigation and small labels: PDF text search is not available. Embedded bookmarks provide access to the quick-reference data, all 15 service chapters, the index, and the wiring section. Small component labels and connector numbers on the checked wiring pages are readable when enlarged; dense circuits require zooming.

One printable, English-language PDF contains 937 pages, including the service-manual cover and separate wiring-section cover. Both cover pages are already included in the total.

Evolution Engine, Drivetrain and Touring-System Service

The following highlights are selected examples of the manual’s contents. Other topics include storage preparation and laced-wheel truing.

• Engine repair and overhaul: In-frame service, engine removal, rocker arms, cylinder heads, valves and guides, cylinders and pistons, pushrods, lifters, oil pump, timing gears, and crankshaft overhaul.

• Primary drive and transmissions: Dry- and wet-clutch service, compensating sprocket, primary chaincase, starter drive and jackshaft, clutch adjustment, and internal four-speed and five-speed transmission repair.

• Fuel and emissions: Carburetor service and adjustment, sequential-port EFI components, fuel-system depressurization, induction module, fuel pump and filter, exhaust, and California evaporative-emission systems.

• Electrical diagnosis: Starter voltage-drop and current-draw tests, charging-system checks, carbureted and EFI ignition diagnosis, ignition modules, ECMs, electrical connectors, and engine-management and cruise-control codes.

• Chassis and touring equipment: Wheel and hub service, chain and belt drives, fork rebuilding, air-control and anti-dive systems, rear shocks, swingarm, brake overhaul and bleeding, fairings, Tour-Pak, saddlebags, and controls.

• Diagrams and service data: Model-specific wiring, electrical test illustrations, exploded component views, torque sequences, inspection limits, running clearances, adjustment specifications, and chapter-end reference tables.

The manual is written for readers who may be working on their motorcycle for the first time, with step-by-step procedures supported by photographs and component illustrations; major repairs still require the specified tools and measuring equipment.

Production Changes and Drivetrain Repair

Early and late production builds are identified separately, and the manual explains the role of the VIN in identifying running changes. These distinctions help match the motorcycle’s hardware to the relevant procedure.

The primary-drive sections separate the early-1984 dry clutch from later wet-clutch assemblies, including the revised 1998–1999 wet clutch. Four-speed coverage includes shift linkage, shafts, gears, and model-specific kickstarter and starter-clutch work.

The five-speed chapter describes geartrain service without disassembling the engine or removing the transmission housing. It also distinguishes the different FLH/FLT production-gear configurations.

Fuel-System Variants and Diagnostic Limits

Carburetor tables distinguish 49-state, California, HDI, and Swiss HDI configurations rather than treating every carbureted model alike.

For 1995–1998 fuel-injected models, the onboard-diagnostic coverage limits non-dealer work to retrieving and clearing stored codes. Further system testing requires dealer-only tools; complete EFI service requires a Harley-Davidson Scanalyzer and additional specialty equipment. EFI throttle-cable adjustment is also referred to a Scanalyzer-equipped dealership.

The 1997–1998 cruise-control section documents code retrieval, while code clearing remains a dealer operation.

Electrical Tests and Wiring Coverage

For battery-discharge complaints, separate parked-current-draw, operating-load, and charging-output tests help distinguish unwanted current draw from accessory demand that exceeds charging capacity.

Wiring examples include 1984–1985 FLHTC/FLTC/FXRS/FXRT circuits, 1986 FXRD and 1986–1987 FXRT instrument-panel and radio circuits, and 1989 FLHTC/FLTC Ultra accessory systems.

Later diagrams cover 1996 FLHR/FLHR-I models, 1998 FLHT/FLHTC/FLTR carbureted and EFI configurations, and 1999 FXR2/FXR3 models.

Incomplete diagram pairs: Printed page 852, the first wiring page for 1991–1993 FXRS-Con/FXRS-SP models, and printed page 860, the first wiring page for 1993 FLHS models, are missing. Their continuation pages remain in the PDF.

Service Tables, Tools and Repair Cautions

Chapter-end tables and quick-reference data include fluid types and capacities, transmission and shift-dog specifications, clutch adjustments, carburetor jetting, ignition settings, electrical test values, wheel and tire data, and air-suspension specifications.

The consolidated tool table identifies equipment by manufacturer and part number. Examples include the H-D valve-guide driver HD-34740, H-D primary-chaincase boot remover HD-97101-81, JIMS clutch spring compressor 38515-90, and JIMS five-speed main-drive-gear bearing tool 37842-91.

The starter-jackshaft section warns of inner-housing oil-seal damage from incorrect coupling installation on 1994–1998 models. Five-speed side-door removal carries a separate warning about shaft impacts damaging the door bearings.

Brake, pressurized EFI fuel-system, and major powertrain repair work should be left to a qualified motorcycle technician when the required lifting support, measuring instruments, or specialty tools are not available.

A Preview of Engine Inspection Clearances

The engine inspection tables list rocker-arm end clearance of 0.003–0.013 in. (0.08–0.33 mm) for new parts, with a 0.025 in. (0.63 mm) service limit.

Compression-ring end gap is listed as 0.007–0.020 in. (0.18–0.51 mm) new, with a 0.030 in. (0.76 mm) service limit.
