Yamaha Rhino 450 UTV Manual Set, 2006–2009 (P/N LIT-11616-19-43)
597 Pages • ZIP Download: 2 Printable PDFs • 18.71 MB
Yamaha Models Covered & Key Technical Specifications
Models: Rhino YXR45FAV; Rhino YXR45FX (chassis supplement and owner’s manual)
Sub-models / Variants: YXR45FAV: USA (2P51), CDN (2P52), Europe (2P53); YXR45FX chassis supplement (2P5A, 2P5C, 2P5D)
Model Years: 2006–2009 (2006, 2007, 2008, 2009)
-
Engine displacement: 421 cm3
-
Engine type: Liquid-cooled 4-stroke, SOHC, forward-inclined single cylinder
-
Transmission type: V-belt automatic
-
Drive system: 2WD/4WD select
-
Fuel system: Mikuni BSR33/1 carburetor
-
Front suspension: Double wishbone
-
Rear suspension: Double wishbone
-
Front brake type: Dual disc brake
-
Rear brake type: Single disc brake
-
Tire size (front): 25 x 8–12NHS
-
Tire size (rear): 25 x 10–12NHS
-
Battery capacity: 12 V, 28 Ah
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

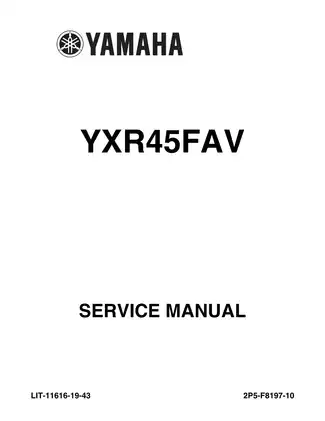

| YXR45FAV Service Manual — 2006 base model; 2P51 (USA), 2P52 (Canada), 2P53 (Europe). First edition August 2005. P/N LIT-11616-19-43 / 2P5-F8197-10. | 409 |
| 2008 YXR45FX Supplementary Service Manual — chassis update for 2P5A, 2P5C, and 2P5D. First edition August 2007. P/N LIT-11616-21-21 / 2P5-F8197-12. | 12 |
| YXR45FX Owner’s Manual — operation and owner maintenance. First edition July 2007. P/N LIT-11626-21-21 / 2P5-F8199-12. | 176 |
The base service manual provides the mechanical and electrical repair procedures. The supplement updates chassis information, while the owner’s manual covers vehicle operation and routine care.
Supplement dependency: Yamaha specifies using the 2008 supplement with the base manual and the YXR45FW Supplementary Service Manual, LIT-11616-20-50 / 2P5-F8197-11. That YXR45FW publication is not included. The supplied supplement updates chassis procedures; it does not replace the engine or electrical chapters.
Searchable Text, Bookmarks, and Wiring Detail
Search and diagram detail: Both PDFs have searchable main text and embedded bookmarks. Some warning and supplementary end-page text in the owner’s manual is not searchable. Small component references, connector markings, and wire-color codes in the service wiring diagrams require zooming.
The ZIP contains two printable PDFs totaling 597 pages: a 421-page service PDF combining the base manual and supplement, plus a 176-page owner’s PDF. Covers, two blank pages, an additional warning page, and two supplementary end pages are already included.
Engine, Chassis, and Electrical Service
These selected coverage highlights summarize the main repair areas. Other included topics cover starter-cable adjustment and spark-arrester cleaning.
-
Engine repair: Step-by-step engine removal, cylinder-head and valve work, cylinder and piston inspection, crankcase separation, and crankshaft, oil-pump, transmission, and middle-gear service.
-
V-belt drive: Primary and secondary sheave disassembly and assembly, centrifugal-clutch repair, starter-clutch checks, and V-belt inspection.
-
Fuel and cooling: Carburetor overhaul and fuel-level adjustment, fuel-pump testing, water-pump repair, radiator inspection, and oil-cooler checks.
-
Drive train: Front and rear CV-joint service, universal-joint assembly, differential and final-drive teardown, pinion and ring-gear positioning, and gear-lash adjustment.
-
Brakes and chassis: Brake-pad replacement, master-cylinder and caliper repair, hydraulic bleeding, steering service, ball-joint replacement, suspension inspection, and wheel-hub checks.
-
Electrical diagnosis: Circuit-specific troubleshooting for ignition, starting, charging, lighting, signaling, radiator-fan control, On-Command four-wheel drive, differential lock, and carburetor heating.
-

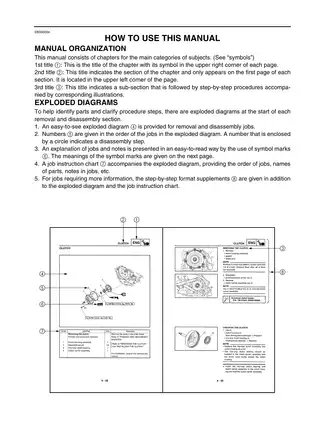

Workshop reference: Exploded assembly views, torque tables, lubrication points, fluid data, wear limits, clearances, adjustment specifications, and electrical test values.
The service publications were written for Yamaha dealers and qualified mechanics who already understand vehicle repair; the owner’s manual addresses operation and basic maintenance.
Internal Engine and V-Belt Repair
Cylinder-head procedures extend to camshaft and rocker-arm measurement, valve-guide and valve-seat work, and timing-chain installation. Lower-engine coverage includes crankshaft and balancer installation, internal transmission inspection, and middle-drive gear shim selection and backlash measurement.
Repair cautions: The crankcase section warns against hammer damage to sealing faces, while the middle-gear section identifies left-hand-threaded bearing retainers and the risk of press damage to the driven pinion’s threaded end.
Special-tool listings pair North American YM/YU/YS/YK/ACC references with 90890-series numbers. Examples include the crankcase separating tool 90890-01135 / YU-01135-B, gear-lash measurement tool 90890-01467 / YM-01467, and sheave spring compressor 90890-04134 / YM-04134.
Fuel Delivery and Cooling Checks
Carburetor procedures address the piston valve, diaphragms, jets, float, and needle valve, with separate float-height and fuel-level checks. Cooling coverage includes radiator-cap pressure testing and water-pump seal, bearing, and impeller inspection.
Coolant-flow diagrams, oil-flow diagrams, and cable-routing layouts support component installation and hose routing. Exploded views and job charts link removal and disassembly work to lubrication points, locking agents, replacement items, and assembly notes.
Drive Train, Brakes, and Chassis Updates
Drive-train setup includes differential shim selection and final-drive pinion and ring-gear positioning. Steering and suspension sections cover the steering column, rack-and-pinion assembly, tie rods, steering knuckles, suspension arms, shock absorbers, stabilizer, wheels, hubs, and brake discs.
The knuckle-bearing instructions warn that striking the center race or balls during installation can damage the bearings.
Body and occupant equipment: The base manual covers enclosure panels, the cargo bed, and seat belts. The 2008 supplement revises seat, console, and instrument-panel removal and adds passenger handhold, strap, and side-door service with related chassis torque data.
Circuit Tests and Fault Isolation
Switch-continuity and bulb/socket checks accompany the system-specific electrical tests. The starting section explains the neutral/brake interlock; four-wheel-drive diagnosis includes relay, switch, gear-motor, and wiring checks to distinguish control-circuit faults from actuator problems.
The ignition-system circuit diagram and 2WD/4WD selecting-system circuit diagram support these tests. The two-page YXR45FAV 2006 wiring diagram includes a component key and wire-color code. U.S. indicator arrangements are distinguished from Canadian and European meter arrangements.
Troubleshooting also addresses hard starting, poor idle and high-speed performance, shifting and clutch faults, overheating, poor braking, unstable handling, and lighting failures.
Owner Operation and Routine Care
The owner’s manual explains controls, On-Command four-wheel drive and differential lock, pre-operation checks, safe-use guidance, owner maintenance, troubleshooting charts, cleaning, storage, specifications, maintenance records, and U.S. consumer information. It also describes the indicator lights and multifunction meter used on Special Edition models.
Safety note: Brake work, working under a supported vehicle, rotating-driveline service, and electrical testing require training and equipment appropriate to the job.
Sample Valve and Piston Clearances
For the YXR45FAV base engine, cold valve clearance is 0.06–0.10 mm at the intake and 0.16–0.20 mm at the exhaust. The periodic-checks chapter explains the associated valve-clearance adjustment.
Cylinder and piston data distinguish a standard piston-to-cylinder clearance of 0.040–0.065 mm from the 0.15 mm service limit.
