Yamaha Grizzly 700 FI YFM7FGPW 2007–2009 ATV Service & Owner’s Manual Set (P/N LIT-11616-20-11)

The service manual covers workshop diagnosis and repair, while the owner’s manual explains operation, pre-operation checks, and routine care. Together, they connect everyday maintenance requirements with the corresponding inspection and repair procedures.

The service procedures follow the 2007 YFM7FGPW configuration, including electric power steering. Later Grizzly 700 model suffixes require their matching documentation.

Searchable Text, Bookmarks, and Wiring Detail

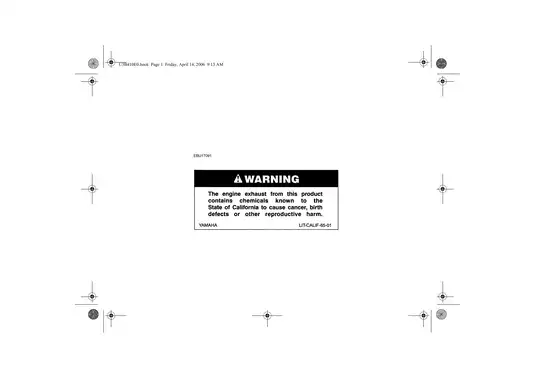

Search and diagram access: Both PDFs have searchable main text and embedded bookmarks for chapters and selected sections. Some illustrated warning labels in the owner’s manual are outside text search. Small wire-color codes and connector labels in the service manual require zooming; the checked wiring and EPS circuit details remain legible when enlarged.

The ZIP download contains two printable PDFs totaling 668 pages. Covers and original end matter are included, along with three supplementary pages and two trailing blank pages in the owner’s PDF and one otherwise blank page in the service manual.

Engine, On-Command Drivetrain, and FI/EPS Service

These selected topics outline the repair and operating coverage rather than reproduce the full contents. Other sections include speed-limiter adjustment and preparation for storage.

• Engine, CVT, and transmission: Engine removal, cylinder-head and piston work, crankcase separation, crankshaft and oil-pump inspection, sheave service, clutch repair, and transmission reassembly.

• Fuel injection and EPS: ECU diagnostic tables, sensor and actuator checks, fuel-pressure testing, throttle-position sensor adjustment, EPS diagnostic modes, and motor and torque-sensor tests.

• On-Command drivetrain: Front and rear CV-joint service, differential and final-drive repair, backlash measurement, shim selection, thrust-clearance checks, and drive-selection electrical diagnosis.

• Brakes and chassis: Hydraulic bleeding, master-cylinder and caliper service, wheels and hubs, steering-stem and tie-rod work, ball joints, suspension arms, stabilizer, and shock absorbers.

• Cooling-system repair: Radiator removal and inspection, thermostat testing, water-pump disassembly and reassembly, coolant replacement, and air-bleeding procedures.

• Electrical troubleshooting: Ignition, starting, charging, lighting, signaling, cooling-fan, and fuel-pump diagnosis, supported by circuit diagrams, cable-routing drawings, and exploded assembly views.

• Owner operation and care: On-Command and differential-lock controls, pre-operation checks, engine break-in, loading guidance, maintenance charts, and basic troubleshooting.

Yamaha wrote the service manual for dealers and qualified mechanics with vehicle-repair knowledge; the owner’s manual supports owners with preventive maintenance and minor repairs within its stated tool and experience requirements.

Factory Engine Repair and Workshop Preparation

Exploded diagrams and job charts identify parts and organize removal and disassembly work. The accompanying step-by-step procedures add inspection criteria, assembly notes, lubrication points, replacement requirements, tightening torques, wear limits, and clearances.

Cylinder-head coverage includes the camshaft, rocker arms, valves, and valve guides. Cylinder and piston sections address ring and piston-pin checks, while lower-engine procedures cover the starter clutch, torque limiter, balancer drive, oil-pump drive, and wet centrifugal clutch.

Transmission inspection extends to shift forks, the shift drum, shaft runout, gear engagement, and reassembly checks. Middle-gear procedures include drive and driven gear shim selection.

The job charts, replacement notes, and tool references help a workshop identify the equipment and parts needed before disassembly. Listed tools include the crankcase separator 90890-01135 / YU-01135-B and gear-lash measurement tool 90890-01475 / YM-01475.

Sheave work identifies spring compressor 90890-04134 / YM-04134. Fuel-system testing specifies pressure gauge 90890-03153 / YU-03153 with adapter 90890-03176 / YM-03176. Valve-service tools, flywheel and piston-pin pullers, ball-joint tools, bearing drivers, electrical testers, and Yamaha crankcase sealant are also identified.

Fault Codes, Sensor Checks, and EPS Diagnosis

The owner’s manual explains the multifunction display and its two-digit error indication. The service manual connects ECU fault codes with diagnostic codes, probable causes, sensor-operation tables, actuator checks, and fault-specific troubleshooting.

That connection helps a mechanic distinguish harness or connector faults from sensor and control-unit problems before selecting replacement parts. Individual checks cover intake-air pressure and temperature sensors, the fuel injector, fuel-pump and pressure-regulator operation, and throttle-position sensor adjustment.

EPS has its own control-unit self-diagnosis, normal warning-light behavior, present and stored fault indications, code-clearing information, and component tests. Motor continuity checks and torque-sensor resistance testing are treated separately.

Differential, Final Drive, and Chassis Work

The drivetrain chapters distinguish serviceable gearcase work from the factory-assembled differential gear unit, which must remain intact. Motor-indexing notes explain how an incorrect relationship between the shift mechanism and gear motor can prevent engagement or leave the indicator out of step with the selected mode.

Rear final-drive procedures extend to pinion positioning, pinion backlash, thrust-washer clearance, and wheel-gear thrust clearance. Front differential checks also include preload assessment.

Brake procedures cover inspection and rebuilding as well as bleeding. The caliper sections caution against operating the lever or pedal with a caliper removed because the pads can close together. Steering and suspension coverage adds knuckle inspection, toe-in adjustment, arm bushings, and shock-absorber checks.

Cooling Components and Electrical References

Water-pump procedures cover the impeller shaft, bearing, oil seal, and mechanical seal, with inspection and installation notes. The thermostat section includes a temperature-based opening test and installation orientation.

Diagram references include the FI circuit diagram, EPS block diagram, EPS circuit diagram, coolant-flow diagrams, oil-flow diagrams, and YFM7FGPW 2007 wiring diagram. The wiring reference supplies component identifiers and wire-color keys; cable-routing drawings show how leads and hoses are arranged.

General, engine, chassis, and electrical specifications are accompanied by engine and chassis torque tables, lubricant references, fluid capacities, inspection limits, and adjustment data.

Owner Controls, Maintenance, and Riding Reference

The owner’s manual explains drive-select operation, reverse use, the multifunction display, loading and accessory limits, and the pre-operation checklist.

Its emission-control and general maintenance charts are supported by procedures for engine oil and filter service, final and differential gear oil, coolant, air-filter and spark-arrester cleaning, brake inspection, battery and fuse service, lighting, and wheels. Basic troubleshooting charts address starting and overheating problems.

Reference data includes approved lubricants, tire pressures, load ratings, brake and chassis specifications, and auxiliary DC-jack limits. Riding chapters address hills, slopes, shallow-water crossings, rough terrain, sliding, skidding, and recovery from a stall or rollback.

Timing and Differential Repair Cautions

The cylinder-head section warns that turning the crankshaft during camshaft installation can disturb valve timing and cause damage. Differential cautions prohibit 12-volt gear-motor testing and limit the temporary ring-gear holding bolt to finger-tight pressure because incorrect test power or excessive bolt force can damage components.

Securely support the ATV and follow the specified electrical-isolation precautions. Observe the manual’s warnings for brake fluid, spring-loaded sheave components, hot coolant, fuel, and rotating assemblies.

Selected Valve-Clearance and Fuel-Pressure Data

Valve adjustment: With the engine cold and at room temperature, specified intake clearance is 0.09–0.13 mm and exhaust clearance is 0.16–0.20 mm. The adjustment section relates these values to compression-stroke TDC and the corresponding timing marks.

Fuel delivery: The fuel-pump and pressure-regulator check specifies 324 kPa (46.1 psi) with the engine running. The procedure identifies the required gauge and adapter and explains how an out-of-specification reading affects the repair decision.
