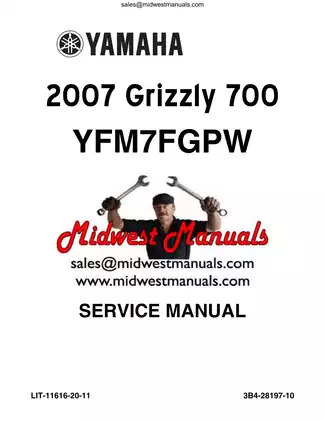

2007 Yamaha Grizzly 700 YFM7FGPW ATV Service Manual (P/N LIT-11616-20–11)

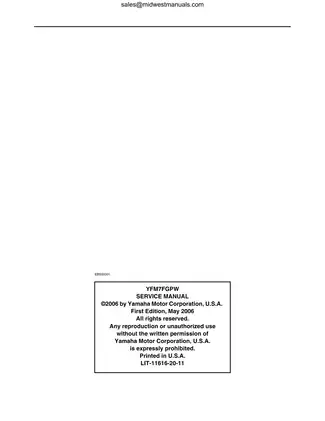

This Yamaha service manual covers the 2007 Grizzly 700 YFM7FGPW with fuel injection and Electric Power Steering (EPS). The first edition, issued in May 2006, carries publication number LIT-11616-20-11 and cover identifier 3B4-28197-10.

• Engine repair: Engine removal, cylinder-head and valve service, piston inspection, crankcase separation, crankshaft installation, and oil-pump inspection.

• Transmission and shaft drive: Primary and secondary sheave service, clutch inspection, transmission disassembly, CV-joint repair, and differential and final-drive adjustments.

• Fuel injection diagnosis: ECU fault-code tables, sensor and actuator checks, fuel-pressure testing, and throttle-position-sensor inspection and adjustment.

• Cooling system: Radiator inspection, thermostat testing, water-pump disassembly and seal installation, and coolant replacement and bleeding procedures.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper service, steering checks, ball-joint replacement, and suspension inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, 2WD/4WD selection, and EPS diagnosis, supported by circuit diagrams and component tests.

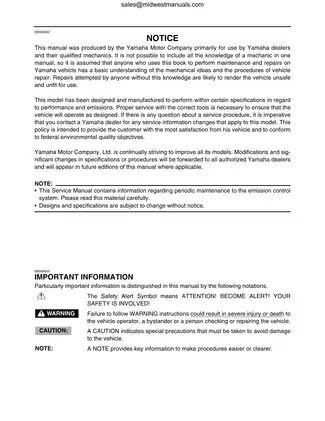

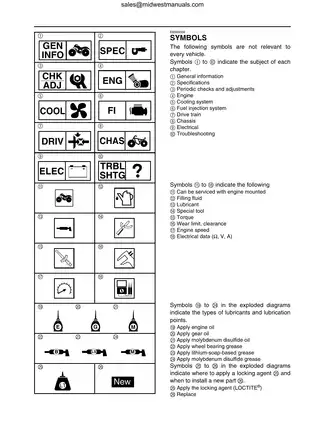

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of vehicle maintenance and repair.

Engine Inspection and Maintenance

The engine chapter covers camshaft and rocker-arm inspection, valve-guide replacement, valve-seat work, and cylinder-bore measurement. Timing-chain installation and decompression-system checks accompany the cylinder-head procedures.

Periodic maintenance charts, oil-flow diagrams, lubrication references, and component-specific torque tables support these repairs. Service data distinguish routine oil-change quantities from filter-replacement quantities and provide inspection limits for internal engine components.

Clutch, Transmission, and Final Drive

Sheave service includes weight and sliding-surface inspection, secondary-spring removal, and reassembly. Transmission procedures cover shift forks, the shift drum, gear engagement, and internal shaft inspection.

Thread direction and component handling: The clutch carrier nut and middle driven pinion gear bearing retainer have left-hand threads. The middle-gear section also warns that direct hydraulic-press contact can damage the driven pinion’s threaded end.

Front-differential coverage includes gearcase disassembly, motor testing, gear-lash adjustment, and preload checks. The internal differential unit remains assembled; Yamaha cautions that dismantling it can cause malfunction.

Rear final-drive work goes further into pinion positioning, shim selection, backlash adjustment, and thrust-washer clearance. Troubleshooting charts address driveline noise, faulty gear shifting, clutch slipping, and loss of drive.

Fuel Injection Tests and Fault Isolation

The ECU diagnostic tables connect fault codes with probable causes, wiring checks, sensor tests, and reinstatement methods. These links help distinguish a connection or harness fault from a failed sensor before selecting replacement parts.

Fuel-pump and pressure-regulator testing specifies pressure gauge YU-03153 and adapter YM-03176. Throttle-body coverage includes removal, cleaning, inspection, and throttle-position-sensor adjustment; the throttle body itself is not intended for internal disassembly.

Radiator, Thermostat, and Water Pump

Cooling-system coverage includes radiator-cap pressure testing, thermostat opening checks, and water-pump bearing, seal, and impeller inspection. Coolant-flow diagrams show the hose and passage relationships, while the maintenance section documents coolant replacement and air bleeding.

Brake, Steering, and Suspension Service

Exploded views accompany master-cylinder and caliper disassembly. Cable-routing drawings identify brake-hose paths, and the chassis sections cover steering-stem installation, tie-rod adjustment, wheel bearings, suspension arms, and the rear stabilizer.

Observe the manual’s brake-system precautions and warnings about hot, pressurized coolant when using the relevant service procedures.

EPS Diagnosis and Electrical Circuits

EPS troubleshooting includes present and stored fault codes, control-unit connections, motor continuity checks, and torque-sensor resistance testing. Yamaha warns against disassembling the EPS unit because doing so can damage it.

The electrical chapter also documents starting-circuit interlocks, starter-motor inspection, charging tests, and relay checks. Reference tables identify starter-relay and main-fuse ratings. FI and EPS circuit diagrams supplement the full vehicle wiring diagram, with connector layouts and wire-color codes for tracing circuits.

A Preview of Valve, Ignition, and Fuel-Test Data

These examples represent a small selection of the manual’s maintenance and diagnostic specifications.

For valve-clearance inspection on a cold engine, the manual lists 0.09–0.13 mm for the intake valves and 0.16–0.20 mm for the exhaust valves. Its NGK CR8E spark-plug inspection specifies a gap of 0.7–0.8 mm.

The fuel-pump and pressure-regulator test specifies 324 kPa with the engine running, alongside the gauge connection and evaluation procedure.

Searchable Text, Bookmarks, and Wiring Detail

Search and diagram access: The PDF contains searchable text and embedded bookmarks for chapters and major service sections. Small connector and wire-color labels in dense circuit diagrams require zooming. The wiring bookmark opens the diagram key; the full wiring diagram is on PDF p. 485.

Supplied as one printable, English-language 485-page PDF: 18 pages of front matter, 464 chapter pages, and three closing pages containing the wiring-diagram key, rear cover, and foldout wiring diagram. Both blank chapter pages are already included in this total.
