2007–2008 Polaris 600 HO, 700 HO, and 800 Dragon Snowmobile Factory Service Manual (P/N 9921044)
325 Pages • ZIP Download: Printable PDF • 12.18 MB
Polaris Models Covered & Key Technical Specifications
Models: 2007 600 HO IQ, 2007 600 HO SWITCHBACK, 2007 600 HO RMK, 2007 600 HO IQ CFI, 2007 600 HO SWITCHBACK CFI, 2007 600 HO IQ LX CFI, 2007 600 HO IQ TOURING CFI, 2007 700 HO IQ DRAGON, 2007 700 HO RMK DRAGON, 2008 IQ SHIFT, 2008 600 RMK 144, 2008 600 RMK SHIFT 155, 2008 600 DRAGON IQ, 2008 600 SWITCHBACK, 2008 600 DRAGON SWITCHBACK, 2008 600 IQ LX, 2008 600 IQ TOURING, 2008 600 RMK 155, 2008 700 IQ, 2008 700 DRAGON IQ, 2008 700 SWITCHBACK, 2008 700 DRAGON SWITCHBACK, 2008 700 RMK 155, 2008 700 DRAGON RMK 155, 2008 700 DRAGON RMK 163, 2008 800 DRAGON RMK 155, 2008 800 DRAGON RMK 163
Models & Model Codes:

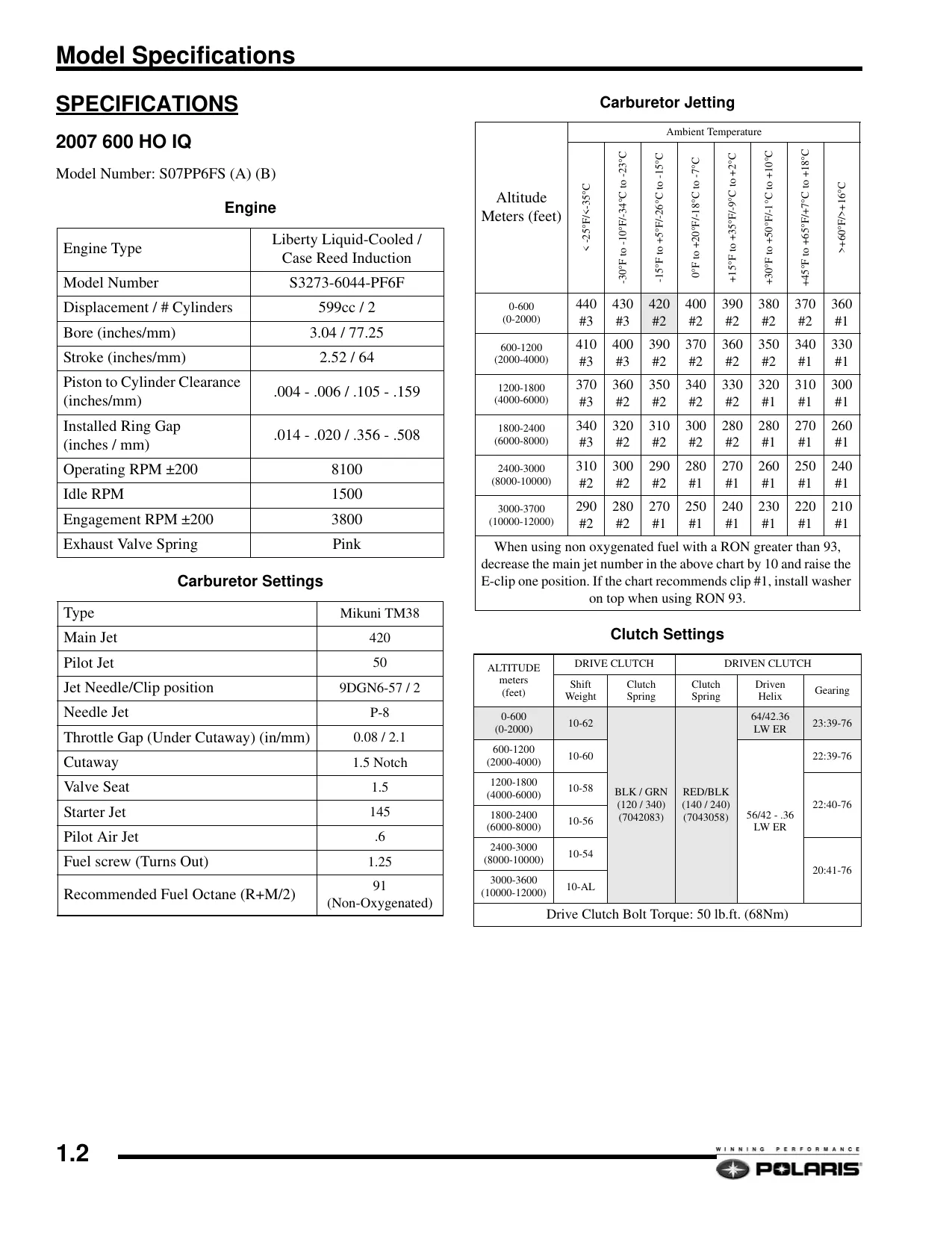

2007 600 HO IQ — S07PP6FS (A) (B) (engine S3273-6044-PF6F)
2007 600 HO SWITCHBACK — S07PS6FS (A) (engine S3273-6044-PF6F)
2007 600 HO RMK — 144: S07PK6FS, S07PK6FE / 155: S07PM6FS (A) (engine S3273-6044-PF6F for both)
2007 600 HO IQ CFI — S07PP6HS (A) (B) (engine S3206-6044-PF6H)
2007 600 HO SWITCHBACK CFI — S07PS6HS (A) (B) (engine S3206-6044-PF6H)
2007 600 HO IQ LX CFI — S07PD6HS, S07PD6HE (engine S3206-6044-PF6H)
2007 600 HO IQ TOURING CFI — S07PT6HS, S07PT6HE (engine S3206-6044-PF6H)
2007 700 HO IQ DRAGON — S07PC7JS, S07PC7JE (engine S3305-7044-PF7J)
2007 700 HO RMK DRAGON — S07PL7JS, S07PL7JE (engine S3322-7044-PF7J)
2008 IQ SHIFT — S08PB6FS, S08PB6FE (engine S3466-6044-PU6F)
2008 600 RMK 144 — S08PK6FS, S08PK6FE (engine S3467-6044-PU6F)
2008 600 RMK SHIFT 155 — S08PM6FS (engine S3467-6044-PU6F)
2008 600 DRAGON IQ — S08PP6HS, S08PP6HE (engine S3468-6044-PU6H)
2008 600 SWITCHBACK — S08PR6HS, S08PR6HE (engine S3468-6044-PU6H)
2008 600 DRAGON SWITCHBACK — S08PS6HS, S08PS6HE (engine S3468-6044-PU6H)
2008 600 IQ LX — S08PD6HS (engine S3468-6044-PU6H)
2008 600 IQ TOURING — S08PT6HS, S08PT6HE (engine S3468-6044-PU6H)
2008 600 RMK 155 — S08PM6HS, S08PM6HE (engine S3468-6044-PU6H)
2008 700 IQ — S08PB7JS, S08PB7JE (engine S3470-7044-PU7J)
2008 700 DRAGON IQ — S08PP7JS, S08PP7JE (engine S3470-7044-PU7J)
2008 700 SWITCHBACK — S08PR7JS, S08PR7JE (engine S3470-7044-PU7J)
2008 700 DRAGON SWITCHBACK — S08PS7JS, S08PS7JE (engine S3470-7044-PU7J)
2008 700 RMK 155 — S08PM7JS (engine S3471-7044-PU7J)
2008 700 DRAGON RMK 155 — S08PG7JS, S08PG7JE (engine S3471-7044-PU7J)
2008 700 DRAGON RMK 163 — S08PH7JS, S08PH7JE (engine S3471-7044-PU7J)
2008 800 DRAGON RMK 155 — S08PG8ES, S08PG8EE (engine S3489-8044-PU8E)
2008 800 DRAGON RMK 163 — S08PH8ES (engine S3741-8044-PU8E)
Sub-models / Variants: 144, 155, 163, CFI, Cleanfire, HO, IQ, Dragon, Shift, Touring, Switchback, RMK, LX
Trade Names: Polaris IQ
Model Years: 2007–2008
VIN engine identifiers (positions 6–7): 6F = 600 carbureted, 6H = 600 CFI, 7J = 700 CFI, 8E = 800 CFI
Engine serial prefix: S3489 — 2008 800 DRAGON RMK 155 (coolant bypass nozzle)
-
Engine displacement: 599 cc, 700 cc, 794 cc
-
Engine type: Liberty Liquid-Cooled / Case Reed Induction
-
Operating RPM: 8100 RPM ±200 (carbureted), 8250 RPM ±200 (2007 CFI and 2008 600 CFI), 8250 RPM (+0/−300) (2008 700 and 800 CFI)
-
Idle RPM: 1500 RPM (2007 carbureted models and 2008 carbureted 600 RMK 144 / 600 RMK Shift 155), 1700 RPM (2008 IQ Shift and all listed CFI models)
-
Fuel system: Mikuni TM38 carburetor or Cleanfire Direct Injection
-
Operating voltage: 13.5–14.5 Vdc
-
Drive clutch bolt torque: 50 lb.ft (68 Nm) for carbureted models or 80 lb.ft (108 Nm) for CFI models
-
Transmission: PVT belt drive with an 8.373-in. center-distance chaincase and PERC electronic reverse on all listed models
Polaris Manual Features & Selected Content Preview

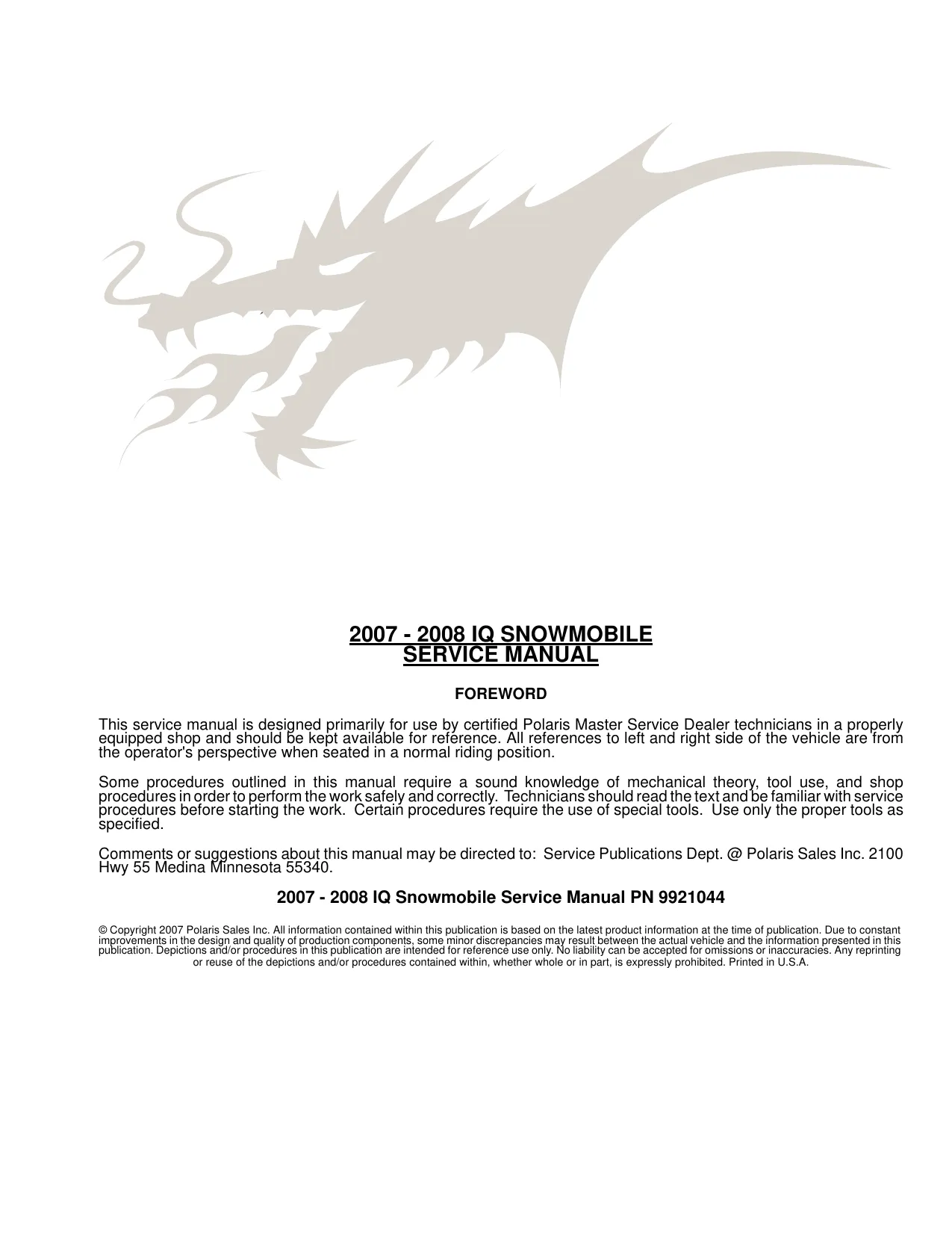

This Polaris factory service manual (P/N 9921044, © 2007) covers 2007–2008 IQ snowmobiles with Liberty liquid-cooled two-stroke engines. Its 12 chapters cover the carbureted 600 and Cleanfire fuel-injected 600, 700, and 800 configurations, with factory specifications organized under 47 base model codes.
PDF Format and Navigation
Text search and wiring diagrams: The service text, tables, and diagram headings are searchable. Small pin numbers and wire codes are read on the drawings and are clearest when zoomed in. Bookmarks link to chapters and individual wiring diagrams. The Chapter 12 heading groups its diagram bookmarks.
The ZIP download contains one printable PDF with 325 pages, including three introductory pages, four index pages, and seven notes pages.
Engine, Fuel, and Chassis Service
These selected topics show the range of workshop procedures. The manual also covers recoil starter rope replacement and off-season storage.
-
Engine overhaul: Engine removal and installation, crankshaft indexing and truing, cylinder and piston inspection, and dedicated 800 CFI monoblock service.
-
Mikuni TM38 carburetors: Carburetor overhaul, float-system testing, and synchronization, with jetting charts organized by ambient temperature and altitude.
-
Cleanfire fuel injection: Fuel rail pressure testing, fuel pump and injector replacement, throttle position sensor (TPS) baseline adjustment, and throttle plate synchronization.
-
PVT clutches and final drive: Drive-clutch and TEAM LWT driven-clutch rebuilding, spider indexing, chaincase rebuilding, HYVO gearing, and driveshaft replacement.
-
Brakes: Brake fluid replacement and bleeding, master-cylinder and caliper service, and brake pad and disc replacement.
-
Steering and suspension: Camber and toe adjustment, rear-skid removal, IQ and M-10 setup, and rebuild procedures for serviceable Walker Evans and Ryde FX shocks.
-
Electrical diagnosis: ECU pinouts, diagnostic trouble codes (DTCs), multifunction display (MFD) blink codes, and model-specific harness diagrams.
Polaris wrote this manual primarily for certified Polaris Master Service Dealer technicians working in an equipped shop. Some procedures require specialized tools and a working knowledge of shop practices.
Model and Fuel-System Coverage
The 2007 tables cover 600 HO IQ, Switchback, RMK, IQ LX, and IQ Touring configurations, plus the 700 HO IQ Dragon and RMK Dragon. For 2008, they cover IQ Shift, RMK Shift, 600 and 700 IQ and Dragon configurations, Switchback, RMK, IQ LX, IQ Touring, and the 800 Dragon RMK 155 and 163.
Mikuni TM38 service applies to the listed carbureted 600 models. The batteryless Cleanfire system uses four injectors across the listed 600, 700, and 800 CFI models. The 800 CFI uses higher-flow injectors than the 600 and 700. The injector part number identifies the engine application, while the injector color code identifies the matching ECU calibration. That distinction matters when selecting a replacement injector or reflashing the ECU.
Engine, Cooling, and Periodic Maintenance
The engine chapters cover variable exhaust system (VES) valve service, water and oil pump assemblies, and oil and cooling system bleeding. The inspection tables give piston-to-cylinder clearances, ring end gaps, and wear limits. Fastener torque tables are paired with tightening sequences for engine assemblies.
The 2008 600 and 700 CFI oil-pump instructions distinguish carryover pumps from revised pointer-style pumps so the adjustment matches the pump fitted to the sled. The 800 cooling diagrams distinguish the Dragon RMK 155 bypass layout from the Dragon RMK 163 no-bypass layout.
The maintenance schedule covers track tension and alignment, chaincase oil, and brake fluid. The final-drive chapter provides the separate drive-chain adjustment procedure. Follow the manual’s pressure-release and protective-equipment precautions when opening fuel or cooling systems or servicing gas-charged shocks.
Electrical Tests and Digital Wrench
Stator, ignition coil, sensor, and battery tests accompany separate carbureted and CFI ignition-timing procedures. Electric-start schematics show the two circuit layouts, and the PERC electronic reverse section explains how altitude settings differ between carbureted and CFI models.
The 34-pin CNA and 26-pin CNB ECU connector views identify pin locations and circuit functions. Chapter 12 has separate engine, chassis, and hood harness drawings, including the 2008 IQ CFI engine harness. Digital Wrench coverage includes live data, guided diagnostics, and ECU reflashing. The reflash procedure calls for dealer authorization, the specified software, and the interface hardware. Tool references include TPS test tool 2201519 and fuel-pressure and bleed gauge PV-43506-A.
Clutch Alignment, Chassis, and Rear Suspension
The factory clutch charts identify weights, springs, and helixes by application. The belt wear and burn chart connects wear patterns to checks for belt deflection and clutch alignment. The alignment procedure identifies different tools for the standard and lightweight TEAM driven clutches.
Chassis drawings distinguish the adjustable IQ Rider Select steering post from the fixed-post assembly and cover RMK tunnel components, Touring seats, and seat-cover replacement. Rear suspension coverage separates IQ 121 and RMK layouts, M-10 128 and 136 systems, and IQ 136 Coupled and Comfort layouts. The 600 IQ Touring changes from M-10 136 in 2007 to IQ 136 Comfort in 2008. Setup procedures cover the M-10 Full Range Adjuster (FRA), scissor stops, limiter straps, and ride height.
Shock Rebuilding and Valving
Walker Evans coverage includes air, remote-reservoir, and piggyback shocks. Ryde FX coverage includes Air 2.0, remote-reservoir, and mono-tube shocks. The specification tables give shim stacks, internal floating piston depths, oil volumes, and nitrogen charge pressures.
The 2008 Ryde FX 7043315 front suspension shock and 7043316 rear track shock have shim-stack entries marked TBA. Fox PS-5 procedures cover disassembly and seal replacement through the early assembly steps.
Sample Fuel Pressure and Piston Fit Specs
For the 600, 700, and 800 CFI engines, the fuel rail test specifies 58 psi (4 bar) with the engine running. The test-tool table identifies the adapter by model year and fuel-line fitting.
For both 2008 800 Dragon RMK engines, the engine inspection table gives a piston-to-cylinder clearance of 0.0037–0.0053 in. and a piston ring end gap of 0.017–0.025 in.
