2007-2011 Polaris IQ Snowmobile Service Manual
Comprehensive shop manual for Polaris 600 IQ, HO, Switchback, RMK, CFI, LX, Touring, Dragon, Shift, Widetrak, Assault models. Covers all aspects of repair and maintenance.
Manual Preview

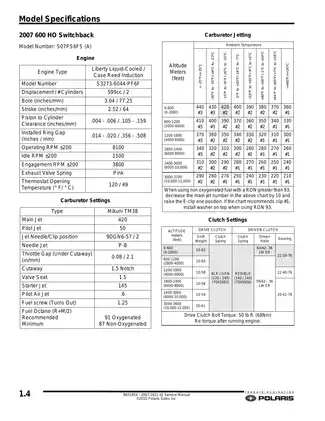

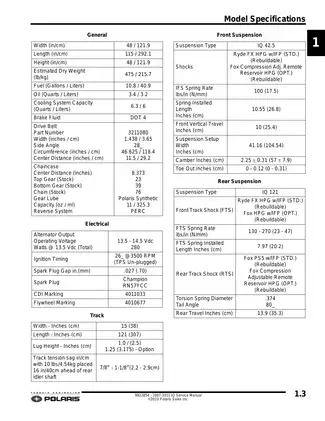

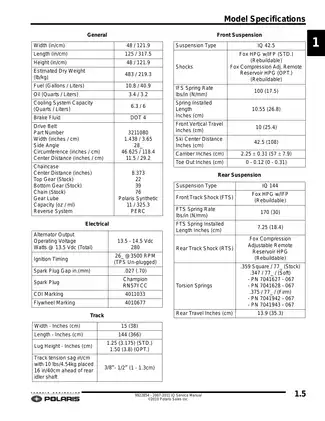

Sample pages from the 2007-2011 Polaris IQ Snowmobile Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Polaris IQ Service Manual: 2007-2011 Models
Shop manual for Polaris snowmobiles including IQ, HO, Switchback, RMK, CFI, LX, Touring, Dragon, Shift, Widetrak, Assault, 136, 144, 155, 146, 163, 600, 700, 800, 550.
- Designated Wattage Specs: 280 W alternator output establishes the standard electrical power capacity.
- Primary Generation Capacity: For optimal system performance, 13.5-14.5 Vdc regulates the electrical output range.
- Advanced Defined Electrical Specs: The ignition system requires 18 @1700 RPM for consistent spark energy.
- Defined Specific Torque Specs: The drive clutch bolt torque is set to 50 lb.ft. (68Nm) for secure operation.
- Key Specific Spark Plug Specs: Champion RN57YCC signifies the standard spark plug for precise ignition.
- Certified Defined Ignition Timing Specs: For reliable ignition, 26 @3500 RPM (TPS Un-plugged) ensures optimal timing. | Service Manual Binder.
Professional Workshop Service Manual & Technical Specifications
Polaris IQ Snowmobile Service Manual: 2007-2011 Technical-Guide
Service-Level: All Models // Year-Coverage: 2007-2011 // Service-Level: Complete
| Assessment-Parameter | Diagnostic-Logic | Calibration-Standards | |
|---|---|---|---|
| Model Numbers | S07PP6FS, S07PP6FS / S07PP6FE, S07PM6FS / S07PM6FE, S07PS6FS / S07PS6HE, S07PD6HS / S07PD6HE, S07PL7JS / S07PL7JE, S07PG7JS / S07PG7JE, S07PH7JS / S07PH7JE, S07PS6HS / S07PS6HE / S07PS6HSB / S07PS6HSC / S07PS6HSD / S07PS6HSE / S07PS6HSL / S07PS6HSM / S07PS6HSN / S07PS6HSP / S07PS6HSR / S07PS6HER | Engine Type: Liberty Liquid-Cooled / Case Reed Induction | Engine Displacement: 599cc - 794cc |
| Part Number | Engine Models | Chassis Type | |
| --- | --- | --- | |
| S3273-6044-PF6F | 2007 600 HO IQ, Switchback, LX, Touring; 2007 700 HO IQ Dragon, RMK Dragon | IQ 42.5 Front Suspension, IQ 121 Rear Suspension | |
| S3206-6044-PF6H | 2007 600 HO IQ CFI, Switchback CFI | IQ 42.5 Front Suspension, IQ 144 Rear Suspension | |
| S3466-6044-PU6F | 2008 IQ Shift | IQ 42.5 Front Suspension, IQ 121 Rear Suspension | |
| S3467-6044-PU6F | 2008 600 RMK 144 / 155, 600 RMK Shift 155 | IQ RMK 144 / 155 Rear Suspension | |
| S3468-6044-PU6H | 2008 600 Dragon IQ, Switchback, Dragon Switchback; 2009 600 IQ / Dragon IQ SP, Switchback / Dragon Switchback, IQ Touring | IQ 42.5 Front Suspension, IQ 136 Coupled Rear Suspension | |
| S3470-7044-PU7J | 2008 700 IQ / Dragon IQ, Switchback / Dragon Switchback | IQ 42.5 Front Suspension, IQ 136 Coupled Rear Suspension | |
| S3471-7044-PU7J | 2009 700 RMK 155 / 163, Dragon RMK 155 / 163 | IQ RMK 155 / 163 Rear Suspension | |
| S3489-8044-PU8E | 2009 800 Dragon RMK 155 / 163 | IQ RMK 155 / 163 Rear Suspension | |
| S4001-8044-OP8E | 2010 800 IQ / Dragon IQ, Switchback / Dragon Switchback | IQ 121 / IQ 121 LWT Rear Suspension | |
| S4002-8044-OP8E | 2010 800 RMK 144 / 155, Dragon RMK 144 / 155 | IQ RMK 144 / 155 Rear Suspension | |
| S4176-6044-OP6H | 2011 600 IQ Shift / IQ, IQ Touring | IQ 121 Rear Suspension | |
| S4177-6044-OP6H | 2011 600 Shift 136 / Switchback 136 | IQ 136 Coupled Rear Suspension | |
| S4216-6044-OO6H | 2011 600 IQ LXT | IQ 136 Comfort Rear Suspension | |
| S4217-6044-OO6H | 2011 600 IQ Shift / IQ | IQ 121 Rear Suspension | |
| S4219-6044-OO6N | 2011 600 Widetrak IQ | IQ 156 Widetrak Rear Suspension |
Cataloging major assemblies into system components, this manual provides a comprehensive overview of the fuel systems. Practical guidance is offered for troubleshooting and maintenance tasks.
Accurately requiring inspection of key engine components and systems for optimal performance and longevity. This manual details procedures for the fuel injection, carburetor, and fuel pump systems. It includes diagnostic information for various sensors and troubleshoot codes.
Repair information is provided for the various EFI system components. The document includes a detailed breakdown of the CFI 4 and DC-CFI systems, explaining their differences in stator voltage handling and component functions. This includes information on the ECU, stator, flywheel, regulator/rectifier, capacitor, chassis relay, and ignition coils.
The document includes coverage of carburetor service, including disassembly, inspection, and assembly of Mikuni VM and TM carburetors. It provides detailed jetting guidelines for various altitudes and temperatures, along with information on the pilot jet, main jet, jet needle, needle jet, and throttle valve. It also covers fuel pump overview, maintenance, and troubleshooting.
Brake system specifications are included for the front and rear suspension systems, detailing spring rates, shock absorber types, and torsion spring part numbers. It also covers the throttle and choke cable adjustments and provides detailed information on the idle speed adjustment for CFI engines.
Safety procedures are documented for handling fuel and electrical systems, including warnings about gasoline flammability and the risks associated with working with high-voltage components. The manual also includes a section on off-season storage and corrosion prevention measures.
