1996–1998 Polaris Indy Snowmobile Service Manual: Lite, Sport, 440, 500, XLT, 600, Ultra & Storm (P/N 9913263)

677 Pages • Printable PDF • 114.97 MB • Download

4.7starstarstarstarstar_half(3)
$19.15 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Models: Indy Lite, Indy Lite Deluxe, Indy Lite GT, Indy Sport, Indy Sport Touring, Indy Super Sport, Indy TransPort, Indy 440 LC, Indy 440 XCR, Indy 440 XC, Indy WideTrak GT, Indy WideTrak LX, Indy Trail, Indy Trail Touring, Indy Trail RMK, Indy 500, Indy 500 SKS, Indy 500 RMK, Indy 500 EFI, Indy 500 EFI SKS, Indy 500 EFI RMK, Indy Classic, Indy Classic Touring, Indy XLT, Indy XLT SKS, Indy XLT RMK, Indy XLT SP, Indy XLT Touring, Indy XLT LTD, Indy 600 XCR, Indy 600 XCR SP, Indy 600 XC, Indy 600 RMK, Indy RXL, Indy Ultra, Indy Ultra SP, Indy Ultra SKS, Indy Ultra RMK, Indy Ultra SPX, Indy Ultra SPX SE, Indy Ultra Touring, Indy 700 XC, Indy 700 SKS, Indy 700 RMK, Indy Storm, Indy Storm SKS, Indy Storm RMK, Indy Storm SE

Models & Model Codes: Model numbers with engine designations in parentheses.

Indy Lite — 0963433, 0973433 (EC34-2PM02); 0983433 (EC34-2PM02A)

Indy Lite Deluxe — 0963431, 0973431; 0983431 (EC34-2PM02A)

Indy Lite GT — 0963133, 0973133 (EC34-2PM02)

Indy Sport — 0960443 (EC44-3PM01); 0970443; 0980443 (EC44-3PM024)

Indy Sport Touring — 0960243 (EC44-3PM01); 0970243 (EC44-3PM02); 0980243 (EC44-3PM024)

Indy Super Sport — 0960743 (EC44-3PM02); 0970761 (EC50PM06); 0980761 (EC50PM061)

Indy TransPort — 0960143 (EC44-3PM01); 0970143 (EC44-3PM02); 0980143 (EC44-3PM024)

Indy 440 LC — 0962760 (EC45PL06); 0972760 (EC45PL09); 0982760 (EC45PL091)

Indy 440 XCR — 0961660 (EC45PL07); 0971660 (SN44LCDCSP-01); 0981660 (SN44-44LCDCSP-01)

Indy 440 XC — 0971760 (EC45PL08)

Indy WideTrak GT — 0962061 (EC50PM03; Series 300 transmission); 0972061 (EC50PM03; high/low/reverse WideTrak transmission)

Indy WideTrak LX — 0962064 (EC50PLE12; Series 300 transmission); 0972065 (high/low/reverse WideTrak transmission); 0982065 (EC50PL201; high/low/reverse WideTrak transmission)

Indy Trail — 0962761, 0972761 (EC50PM04); 0982761 (EC50PM043)

Indy Trail Touring — 0962262, 0972262 (EC50PME04); 0982362 (EC50PM043)

Indy Trail RMK — 0970961 (EC50PM05); 0980961 (EC50PM051)

Indy 500 — 0962764 (EC50PL11); 0972764 (EC50PL17); 0982764, 0982764A, 0982764B (EC50PL171)

Indy 500 SKS — 0962564 (EC50PL11); 0972564 (EC50PL17)

Indy 500 RMK — 0962964 (EC50PL15); 0972964 (EC50PL16); 0982964 (EC50PL161)

Indy 500 EFI — 0963774 (EC50PL13); 0973774 (EC50PL18)

Indy 500 EFI SKS — 0962574 (EC50PL13)

Indy 500 EFI RMK — 0962974 (EC50PL13)

Indy Classic — 0963865 (EC50PLE11); 0973865; 0983865 (EC50PL171)

Indy Classic Touring — 0963365 (EC50PL14); 0973365 (EC50PL19); 0983365 (EC50PL191)

Indy XLT — 0966756, 0976756 (EC58PL03)

Indy XLT SKS — 0960556, 0970556 (EC58PL03)

Indy XLT RMK — 0960956, 0970956 (EC58PL07)

Indy XLT SP — 0966676 (EC58PL02); 0976676 (EC58PL12); 0985776 (EC58PL140)

Indy XLT Touring — 0963357 (EC58PLE05); 0973357; 0983357 (EC58PL130)

Indy XLT LTD — 0973756; 0983756 (EC58PL130)

Indy 600 XCR — 0961676 (EC58PL02); 0975677 (EC59PL01); 0985677 (EC59PL020)

Indy 600 XCR SP — 0965677 (EC59PL01)

Indy 600 XC — 0971776 (EC58PL08); 0981758 (SN60-70LCDCSP-01)

Indy 600 RMK — 0980958 (SN60-70LCDCSP-02)

Indy RXL — 0966768, 0976768 (EC65PL05)

Indy Ultra — 0976778 (EC68PL01); 0986778 (EC68PL050)

Indy Ultra SP — 0960678, 0970678 (EC68PL01)

Indy Ultra SKS — 0960578 (EC68PL01)

Indy Ultra RMK — 0960978 (EC68PL04)

Indy Ultra SPX — 0975678 (EC68PL03)

Indy Ultra SPX SE — H975678 (EC68PL03)

Indy Ultra Touring — 0975378 (EC68PL01); 0985378 (EC68PL050)

Indy 700 XC — 0971766 (SN70-LCDCSP-01); 0981766 (SN70-70LCDCSP-02)

Indy 700 SKS — 0970566 (SN70-LCDCSP-01)

Indy 700 RMK — 0970966 (SN70-LCDCSP-02); 0980966 (SN70-70LCDCSP-01)

Indy Storm — 0965782, 0975782 (EC80PL05); 0985782 (EC80PL052)

Indy Storm SKS — 0965582 (EC80PL05)

Indy Storm RMK — 0965982, 0975982 (EC80PL04)

Indy Storm SE — H975782 (EC80PL05)

Sub-models / Variants: 2-Up Touring, Short, Long, RMK (Rocky Mountain King), SKS, XCR, SP, XC, SE, EFI, GT, Deluxe, Lite, WideTrak, Touring, TransPort

Model Years: 1996, 1997, 1998


  • Engine displacement: 339 cc, 432 cc, 438 cc, 488 cc, 597 cc, 598 cc, 648 cc, 679 cc, 700 cc, 794 cc

  • Engine configuration: Fan-cooled twin, liquid-cooled twin, liquid-cooled triple

  • Engine models: EC34, EC44, EC45, EC50, EC58, EC59, EC65, EC68, EC80, SN44, SN60, SN70 series

  • Carburetion: Mikuni VM30, VM34, VM38, VM34CS slide; Keihin 39mm D-Slide

  • Ignition: CDI, Digital CDI

  • Front Suspension: Parallel Link Trailing Arm IFS, XTRA-10 CRC, XTRA-10, XTRA-12

  • Rear Suspension: XTRA-10, XTRA-12, XTRA-Lite, Standard

  • Fuel capacity: 8.0 to 11.8 U.S. gallons

Polaris Manual Features & Selected Content Preview

The Polaris 1996–1998 Snowmobile Volume III Service Manual (P/N 9913263) covers the listed Indy models, including carbureted and EFI configurations.

PDF Search, Page Navigation, and Diagram Detail

Search and diagram access: PDF text search is not available. Embedded bookmarks link to individual pages, whose order follows an alphanumeric sort of the printed page labels. The EFI wiring diagrams are sideways on their pages; small pin numbers and wire-color labels need zooming.

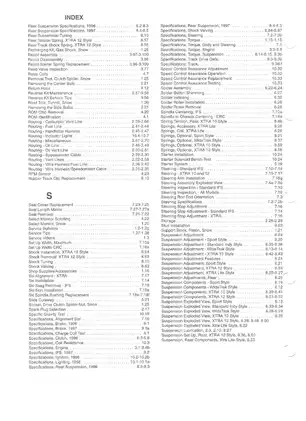

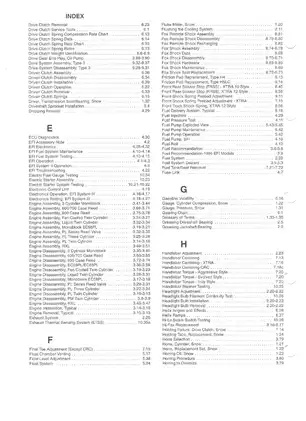

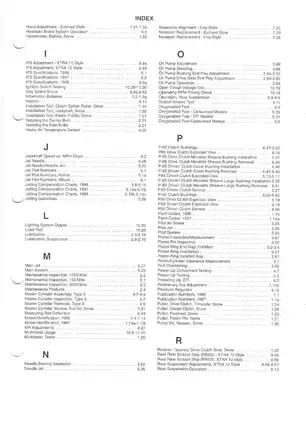

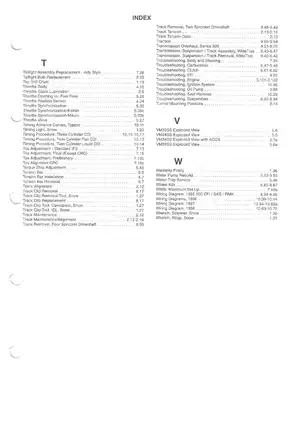

One printable English PDF contains 677 pages, including five index pages and 672 pages from Chapters 1–9. The file starts with the index and contains no separate cover or additional PDF files.


Engine, EFI, Drivetrain, and Chassis Service

These selected repair topics show the manual’s scope rather than its full contents. Other examples include off-season storage and headlight adjustment.

  • Engine repair: Step-by-step engine removal, teardown, inspection, and reassembly for fan-cooled twins, liquid-cooled twins, and triples, plus recoil-starter service.

  • Fuel and carburetion: Mikuni and Keihin carburetor repair, ACCS altitude compensation, float and leak testing, throttle synchronization, fuel-pump service, and model-year jetting charts.

  • EFI diagnostics: RXL and 500 EFI power-up tests, sensor and relay checks, ECU fail codes, fuel-pressure testing, and their EFI wiring diagrams.

  • Clutches and final drive: P-85/P-90 drive and driven clutch service, bushing replacement, spider work, belt alignment, chaincase and reverse service, and track removal.

  • Steering and suspension: Standard IFS and CRC alignment, suspension tuning, Hi-Fax replacement, Fox shock overhaul, and model-specific assembly views.

  • Brake repair: Hydraulic and mechanical brake inspection, pad and caliper service, master-cylinder repair, bleeding procedures, and variant-specific brake specifications.

The manual assumes knowledge of mechanical theory, tool use, and shop procedures; clutch repair is reserved for trained, authorized Polaris technicians, and crankshaft work requires trained technicians and a properly equipped shop.

Model Identification and Workshop References

The identification section separates the machines by model number, engine designation, induction system, ignition, suspension, brake type, track dimensions, and equipment. A familiar model name can hide a different engine family, suspension package, brake system, or fuel-system layout. These distinctions help establish the correct configuration before parts or repair procedures are selected.

General information also covers paint codes, torque lists, shop supplies, conversions, and service tools. Factory service, safety-alert, and information-bulletin indexes identify subjects and affected models; they do not reproduce the complete bulletin sheets.

Internal Engine, Cooling, and Oil-System Work

Separate sections address three-cylinder monoblocks, RXL, EC59PL/EC68PL, SN44, and 600/700/800 case-reed engines. Inspection coverage extends to cylinders, pistons, crankshafts, crankcases, bearings, connecting rods, and water pumps, with honing, crankshaft indexing, clearance tables, and wear limits.

Related material documents cooling-system routing and bleeding, oil-pump operation and adjustment, exhaust inspection, and V.E.S. cleaning, assembly, and troubleshooting. Removing the V.E.S. piston while its bellows is still attached can damage the bellows or piston.

Carburetor Setup and EFI Electrical Limits

Carburetor coverage distinguishes VM30SS, VM34SS, VM38SS, VM34CS, VM38AL, and PWK 39 applications. Circuit explanations, needle-seat checks, throttle-gap data, choke adjustment, and altitude/temperature jetting accompany the service procedures. The VM34SS-with-ACCS exploded view shows the altitude-compensation components in context.

EFI fault tracing: Fuel-rail and injector diagnosis is supported by Select Monitor modes, ECU and ROM-chip checks, charging tests, and sensor-specific test data. The distinction between existing and stored fail codes supports diagnosis of intermittent faults.

Electrical scope: The 1996 RXL schematic and two-page 1996 500 EFI/SKS/RMK wiring diagram are included. The general Chapter 10 electrical section is absent, including the broader 1996–1998 wiring-diagram set referenced by the index.

Clutch Calibration and WideTrak Transmissions

Clutch material pairs P-85/P-90 exploded views with indexing, helix and spring setup, drive-belt measurements, and high-elevation calibration. Special-tool references include P-85 bushing kit 2871025 and P-90 bushing kit 2871226; the case-reed engine section identifies water-pump seal guide 2871846 and press 2871847.

Final-drive coverage continues through jackshafts, driveshafts, sprockets, and track installation. WideTrak transmission procedures distinguish the earlier assembly from the later design, and a separate Series 300 section covers internal transmission overhaul.

Suspension, Body, and Brake Variants

Steering procedures cover camber, toe, handlebar centering, steering stops, and ski-spindle bushings, with separate XTRA-10 CRC and XC-10 CRC alignment material. Body work includes fuel-tank and seat removal, seat-cover replacement, nosepan replacement, and hood alignment.

Rear-suspension sections distinguish Sport, XTRA Lite, Standard Indy, WideTrak, XTRA-10, and XTRA-12 layouts. Their exploded views, spring and limiter adjustments, and weight-transfer explanations complement Fox shock IFP setup, nitrogen charging, leak checks, and valving references.

Brake chapters distinguish H4 and H5LC hydraulic systems, M3 and WT/WT-2 mechanical brakes, and the Type 3 master cylinder. Similar-looking ATV and snowmobile master-cylinder pistons are not interchangeable: the wrong piston can retain hydraulic pressure and cause overheating or fire.

Snowmobile repair involves rotating clutches, suspended chassis components, gasoline, hot cooling systems, hydraulic brakes, and nitrogen-charged shocks. Follow the factory warnings, support the machine securely, isolate the ignition, and relieve stored pressure before disassembly.

Examples of EFI and Carburetor Test Specifications

The EFI throttle-position-sensor bench-test section specifies 400–700 ohms between the black and white wires at the plug with the throttle butterflies closed, and approximately 4.5 kΩ at wide-open throttle.

For Mikuni needle-and-seat leak testing after float-level adjustment, the manual specifies approximately 5 psi with the carburetor inverted. The section explains pressure retention and the conditions that call for needle-and-seat replacement.
