Polaris Models Covered & Key Technical Specifications

340 Classic, 500 Classic, 550 Classic, 600 Classic, 700 Classic, 500 Indy, Supersport, 340 Indy Touring, Trail Touring, 600 Edge Touring, 700 Touring, Widetrak LX, 500 XC SP, 600 HO Standard Fusion, 600 HO Dragon Fusion, 700 Fusion, 900 Fusion, 600 HO Switchback, 900 Switchback, Trail RMK, 600 HO RMK, 700 RMK, 900 RMK.


Models & Model Codes:

340 Classic — S06ND3AS (Fuji EC34-2PM)

500 Classic — S06ND4BS (Fuji EC50PL)

550 Classic — S06ND5BS (Fuji EC55PM)

600 Classic — S06ND6ES

700 Classic — S06PD7HS

500 Indy — S06NB4BS (Fuji EC50PL)

Supersport — S06N(E,P)5BS(A,B) (Fuji EC55PM)

340 Indy Touring — S06NT3AS (Fuji EC34-2PM)

Trail Touring — S06N(T,U)5BS(A), DLX (S06NT5BS(A)), Fuji EC55PM

600 Edge Touring — S06NT6ES

700 Touring — S06PT7HS

Widetrak LX — S06SU4BS (Fuji EC50PL, Hi/Low/Reverse transmission)

500 XC SP — S06NE(P)5CS(A,B) (Edge/M-10), S06NP5CSB (specification sheet)

600 HO Standard Fusion — S06M(E,P)6FS(A,B), Fusion Lux (S06ME6FS)

600 HO Dragon Fusion — S06MC6FS

700 Fusion — S06M(E,P)7HS(A,B), Fusion Lux (S06ME7HS)

900 Fusion — S06M(E,P)8DS(A,B)

600 HO Switchback — S06PS6FS(A)

900 Switchback — S06PS8DS(A), Stock A (S06PS8DSA)

Trail RMK — S06NJ5B(E,S)(A) (Fuji EC55PM)

600 HO RMK — S06PK6FS(A,B)

700 RMK — S06P(K,L,M)7HS(A,B)

900 RMK — S06PN8DS(A) (specification sheet), S06P(M,N,R)8DS(A,B) (publication listing)

Sub-models / Variants: Touring, DLX, LX, XC SP, HO, Dragon, Switchback, RMK, Standard, 121, 128, 136, 144, 151, 159, 166, Pro X.

VIN Identification: The 5th character identifies the RMK track variant: J = 136-inch Trail RMK, K = 144-inch 600 HO RMK, and K/L/M = 144/151/159-inch 700 RMK, respectively.

Model Year: 2006


  • Engine Displacement: 339cc–866cc

  • Engine Types: Fuji, Liberty (2-stroke)

  • Cooling: Air-Cooled, Liquid-Cooled

  • Fuel Delivery: VM30SS, VM34 (including VM34SS and VM34 ACCS), TM38, Cleanfire Fuel Injection

  • Drive System: Polaris P-85 drive clutch, TEAM and Polaris driven clutches

  • Suspension Types: Edge, Edge M-10, IQ, IQ RMK

  • Track Lengths: 121 in to 166 in

Polaris Manual Features & Selected Content Preview

The Polaris 2006 Two-Stroke Snowmobile Service Manual (P/N 9919763) covers the 340, 500, 550, 600, 700, and 900 series, including Classic, Fusion, RMK, Touring, Switchback, and Indy models. It includes model-specific data for the Supersport, 500 XC SP, Widetrak LX, and both the 600 HO Standard and Dragon Fusion. FS/FST four-strokes and the 120 youth model use separate service manuals.

Searchable Service Text and Wiring Diagrams

Search and diagram detail: Fourteen chapter bookmarks take you to the corresponding sections. The service text is searchable, while most wiring labels and some illustrated tool listings are embedded as images. Small schematic labels need zooming, and some fine connector and wire codes in the 700/900 diagrams remain difficult to read when enlarged.

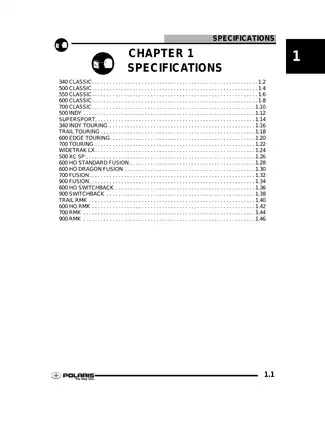

The download is one printable English PDF with 301 pages. That total includes the cover, one Notes page, five otherwise blank chapter-end pages, and the 12-page wiring section.


Engine, Clutch, Chassis, and Electrical Service

This selection from the manual also includes Fusion and IQ RMK seat removal and Edge and IQ headlight replacement.

  • Engine repair: Fuji and Liberty engine removal and teardown, reed and exhaust valve service, water and oil pump work, and crankshaft inspection.

  • Fuel systems: Mikuni TM38 carburetor rebuilding and synchronization, Cleanfire injector replacement, fuel rail pressure checks, and throttle-position sensor setup.

  • Clutching and final drive: P-85 drive clutch service, Polaris and TEAM driven-clutch adjustments, chaincase bearing replacement, and Widetrak transmission repair.

  • Suspension and steering: Edge, IQ, and M-10 setup, rear suspension removal, track alignment, steering geometry, and service procedures for rebuildable shocks.

  • Brakes: Hydraulic bleeding, brake line replacement, pad and disc inspection, and separate disassembly and assembly procedures for the Widetrak mechanical caliper.

  • Electrical diagnosis: No-spark troubleshooting, ignition timing charts, IQ fault flash codes, sensor tests, ECU connector views, and model-specific wiring diagrams.

The manual is suited to technicians familiar with mechanical theory and shop procedures. Polaris assigns clutch repairs to authorized, trained technicians and calls for trained Polaris technicians with specialized equipment for crankshaft repair.

Model Identification and Seasonal Setup

Model-number and VIN tables help match the sled to the correct service data. The 500 Classic and 500 Indy use Fuji engines, while the 500 XC SP uses a Liberty engine.

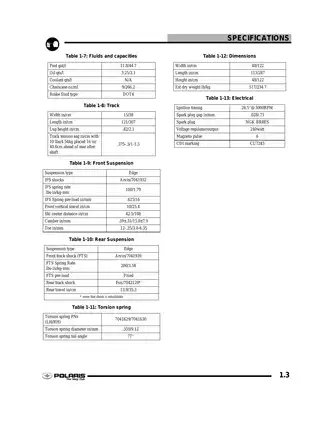

More than 300 model-specification tables cover jetting by temperature and altitude, clutch calibration, fluid capacities, component torque, and electrical specs. That model-by-model layout helps pair pre-season inspections with the correct settings. The maintenance chapter also covers off-season storage.

Fuji and Liberty Engine Repair

The engine chapter includes step-by-step procedures for crankcase separation, piston and ring replacement, and recoil and stator service. Inspection references cover ring end gap, cylinder taper, bearing fit, and crankshaft indexing and runout.

The cylinder section distinguishes oversize honing on 340, 500, and 550 Fuji engines from light honing on Nikasil cylinders. Other procedures cover oil pump adjustment and bleeding, check valve testing, thermostat replacement, and cooling system bleeding.

For the 700/900 water pump, the manual identifies mechanical-seal installer PW-46986 and warns that hammering the seal into place can damage it.

Mikuni Carburetors and Cleanfire Injection

The carburetor chapter explains fuel-metering circuits, TM38 float inspection, and needle and seat testing. Cleanfire coverage distinguishes baseline TPS setup from altitude-specific idle settings and identifies fuel pressure gauge PV-43506-A and TPS tester kit 2201519.

Injector color identification is tied to ECU calibration, which helps match the replacement injector and identify when a Digital Wrench reflash is required. A failed in-tank Cleanfire pump calls for replacement of the fuel tank assembly.

P-85 Clutches, Chaincases, and Widetrak Transmission

Clutch coverage includes spider indexing, roller and bushing inspection, spring identification, and belt alignment and deflection. The belt wear chart helps distinguish setup faults from wear linked to operating conditions.

Final drive coverage includes separate 7.92-inch and 8.37-inch chaincase procedures, chain tension adjustment, jackshaft service, and Widetrak gear, shaft, and shift-fork inspection. The TEAM ramp tables distinguish electric-reverse applications. The manual warns that engaging reverse with the wrong ramp can damage the driven clutch.

Suspension Setup and Brake Service

Suspension tables cover camber, toe, limiter straps, scissor stops, and M-10 FRA initial setup. Shock references identify rebuildable units and list compression and rebound valving, internal floating-piston depths, and charging specs. The Ryde FX section covers mono-tube rebuilding. FOX PS-5 coverage extends through teardown and seal replacement.

The hydraulic brake section covers pad service and caliper replacement. The Widetrak section covers the mechanical caliper’s actuating components. Service involves high-tension springs, heavy moving parts, and pressurized fuel systems. Follow the manual’s precautions for the assembly being serviced.

Ignition and Electrical Fault Finding

The no-spark chart, ECU plug pinouts, and 700/900 engine wiring callouts help trace ignition faults and identify wire terminations. The electrical chapter also covers starter and regulator/rectifier tests, detonation sensors, exhaust-valve solenoids, and Polaris Electronic Reverse Control (PERC), including altitude settings.

Sample Engine, Clutch, and Fuel Specs

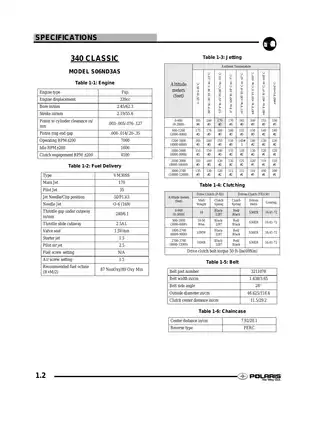

The 600 Classic engine table lists piston-to-cylinder clearance of .0045–.0059 in. The 340 Classic clutching table gives a P-85 drive clutch bolt torque of 50 ft-lb (69 N·m).

The 700 Fusion fuel delivery table lists Cleanfire fuel pressure at 116 psi (8 bar). The injection chapter describes checking that pressure at the fuel rail while the pump is running.
