2011 Polaris RZR XP 900 UTV Service & Repair Manual (P/N 9923144)

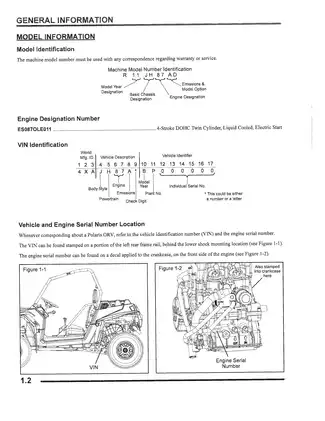

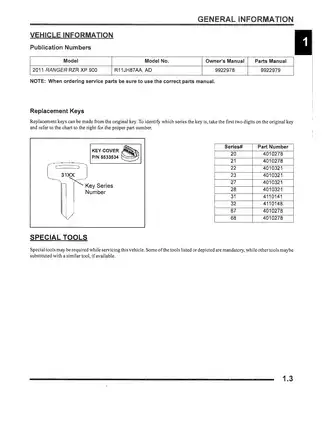

This Polaris service manual, publication 9923144, covers the 2011 RANGER RZR XP 900 / RZR XP 900, model codes R11JH87AA and R11JH87AD. It contains maintenance schedules, diagnostic checks, inspection criteria and component repair procedures.

• Engine repair: Engine removal, cylinder head and crankcase disassembly, piston inspection, crankshaft and balance shaft service, and camshaft timing.
• Fuel and ignition: Bosch M17 EFI operation, sensor and injector testing, fuel pump diagnosis, fault codes and Digital Wrench procedures.
• PVT and transmission: Drive belt replacement, drive and driven clutch service, transmission teardown, gear inspection and output shaft backlash adjustment.
• Final drive: AWD diagnosis, Centralized Hilliard front gearcase overhaul, propshaft service, wheel bearings, and driveshaft joint and boot replacement.
• Suspension and steering: FOX 2.0 Piggyback shock rebuilding, suspension linkage service, steering shaft bearings, tie-rod inspection and wheel toe adjustment.
• Hydraulic brakes: Front and rear caliper inspection and assembly, pad and disc service, master cylinder replacement, bleeding and troubleshooting.
• Electrical diagnosis: Instrument cluster functions, switch and relay tests, charging and starting system checks, connector pinouts and circuit breakout diagrams.

The inspection tolerances and special-tool requirements make this a reference for experienced mechanics. The PVT chapter specifically assigns maintenance and repair to certified Polaris Master Service Dealer technicians.

Engine Inspection, Assembly and Cooling

Repair planning: The accessible-components chart distinguishes work possible with the engine installed from repairs requiring removal. Bearing-selection charts match crankshaft, connecting-rod and balance-shaft bearings to identification codes, supporting parts selection during lower-end assembly.

The engine chapter includes camshaft wear limits, cylinder-head warp inspection, valve-seat reconditioning, starter one-way clutch service and valve-shim selection. Fastener torque tables and tightening patterns cover engine assembly, including staged cylinder-head bolt tightening. Printed engine-section pages 3.2 and 3.3 are missing from this PDF.

Lubrication and cooling: The Engine Oil Flow Chart maps the dry-sump system; the Cooling System Exploded View and Coolant Flow Diagram show component arrangement and circulation. Procedures include oil-pressure testing, cooling-system testing and water-pump mechanical-seal replacement. The oil pump is replaced as an assembly.

Engine-coupler spacer adjustment and tightening require particular care because incorrect assembly can damage the engine case. Misalignment of the water-pump drive tab and drive slot can damage the pump or engine.

Bosch M17 EFI and Electrical Fault Tracing

Fault-code tables connect SPN/FMI information with component faults, alongside sensor tests, fuel-pressure checks and wiring diagrams. Digital Wrench guided diagnostics require separate diagnostic equipment; ECU reprogramming also requires dealer authorization.

The ECU and dual throttle-body assembly are not internally serviceable. Coverage concerns diagnosis and replacement, with separate injector and fuel-rail procedures. Charging and starting-system flowcharts support fault tracing through the battery, stator, regulator/rectifier, cables and starter solenoid.

Clutch, Transmission and Front Gearcase Work

PVT coverage includes belt inspection, clutch bushing service and driven-clutch disassembly. The altitude clutch chart identifies calibration combinations. Drive-clutch rollers, pins and buttons are not individually serviceable under this manual's procedures.

Transmission coverage extends to gear clusters, shift components and snorkel-shaft backlash. Front gearcase procedures cover AWD engagement, armature inspection and internal assembly. Lubrication references distinguish AGL Plus transmission lubricant from Demand Drive Plus front gearcase fluid.

Maintenance, Shock Service and Chassis Repairs

Periodic maintenance charts distinguish normal and severe use. Air Box / Air Filter Exploded Views support intake servicing, while cylinder leak-down guidance assists engine-condition assessment. FOX shock information includes the compression-adjustment table, internal valving and rebuilding procedures.

Non-EPS steering coverage includes gearbox mounting/layout and shaft-bearing replacement. Brake coverage includes caliper rebuilding and disc inspection. Shock servicing involves pressurized nitrogen and requires the manual's pressure-release precautions and specified charging equipment.

Selected Valve, Oil-Gallery and Pressure-Cap Specifications

A small selection of the manual's service data illustrates the detail available for valve checks, lubrication-system work and cooling-system assessment. Cold valve clearance is 0.005–0.007 in. (0.125–0.175 mm) for the intake valves and 0.011–0.013 in. (0.275–0.325 mm) for the exhaust valves.

The crankcase oil-gallery plug torque is 11 ft-lb (15 Nm), specified in the oil-pressure-test procedure. The cooling-system pressure-cap relief setting is 13 psi, identifying the cap's pressure-release specification rather than a normal running-pressure target.

PDF Navigation, Scan Quality and Page Count

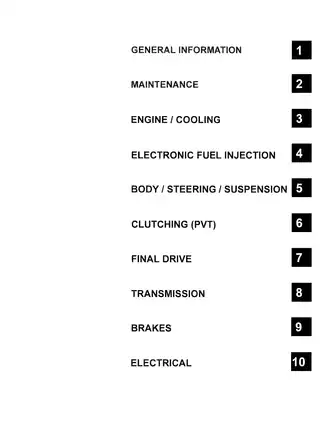

Bookmarks and readability: Thirteen bookmarks provide access to the cover, contents, main chapters and index. Technical pages are scanned images without searchable technical text. Small wiring labels require enlargement; some lettering remains faint or broken in the scan.

Supplied as one printable English-language PDF with 370 pages total, including one added cover page, five notes pages and one blank page.
