2009 Yamaha Rhino 450 UTV Service Manual Set (P/N LIT-11616-RH-47)

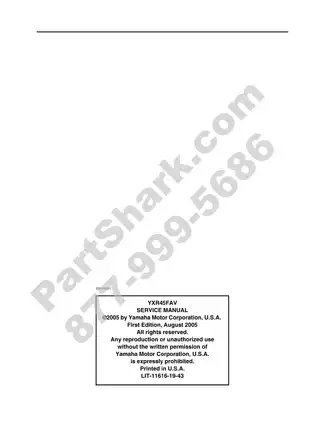

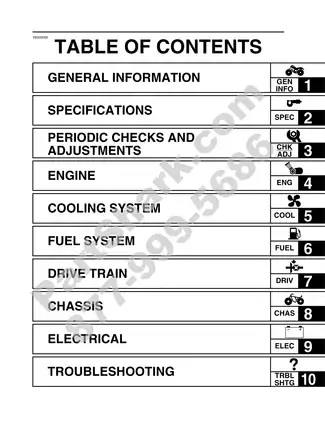

This Yamaha Rhino 450 (YXR45F) service manual set combines the ten-chapter YXR45FAV base manual, first edition August 2005, with the YXR45FW, YXR45FX and YXR45FY supplements. The collection cover carries LIT-11616-RH-47.

The supplements update the base manual rather than replace it. The YXR45FY foreword specifically requires all three earlier publications for complete service information.

Repair Procedures and Diagnostic Coverage

• Engine repair: Engine removal, cylinder-head and valve service, piston inspection, crankcase separation, crankshaft installation, and oil-pump inspection.

• Transmission and shaft drive: Primary and secondary sheave service, centrifugal-clutch inspection, transmission disassembly, CV-joint service, and differential and final-drive adjustment.

• Cooling system: Radiator-cap pressure testing, water-pump disassembly and seal installation, coolant replacement, and oil-cooler inspection.

• Fuel system: Mikuni BSR33/1 carburetor disassembly, diaphragm and jet inspection, float-height and fuel-level adjustment, and fuel-pump testing.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper service, steering-knuckle and ball-joint replacement, suspension inspection, and toe-in adjustment.

• Electrical troubleshooting: D.C. C.D.I. ignition diagnosis, starter-motor service, charging tests, and circuit checks for lighting, cooling, carburetor heating, and 2WD/4WD selection.

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume an understanding of vehicle repair principles and workshop procedures.

Internal Engine and Drivetrain Work

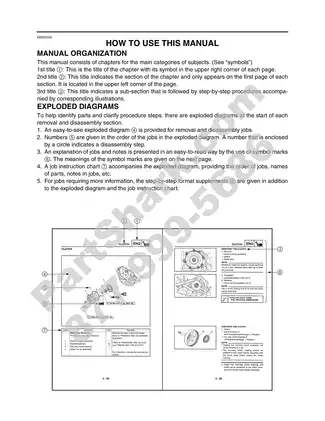

Engine inspection sections include cylinder-bore measurements, piston-ring end gaps, valve-guide clearances, and camshaft and rocker-arm checks. Exploded views accompany disassembly instructions, with component-specific torque tables and lubrication charts.

Sheaves and gearing: Primary-pulley weights, sliders, secondary-sheave springs, and clutch components have separate inspection procedures. Middle-gear and final-drive sections explain shim selection and gear-lash measurement, including use of the YM-01467 / 90890-01467 measuring tool.

Differential coverage includes housing disassembly, bearing inspection, gear-lash adjustment, and operating checks. The factory-assembled differential gear unit and the gear motor are not intended for internal disassembly.

Middle-gear service identifies left-hand-threaded bearing retainers and warns that pressing directly on the driven pinion can damage its threads. The shaft-drive troubleshooting section also explains how insufficient gear lash can damage gear teeth.

Carburetor, Cooling and Supplement Updates

Fuel and coolant: Carburetor checks distinguish worn needle-valve components, damaged diaphragms, and restricted passages. Fuel-level adjustment uses the YM-01312-A / 90890-01312 gauge. Water-pump instructions cover the impeller, rubber damper, bearing, and seals, supported by coolant-flow diagrams.

Oil-flow diagrams trace lubrication through the engine and oil cooler. Cable-routing views identify hose, cable, and wiring paths during reassembly.

Variant changes: The YXR45FW supplement distinguishes standard and special-edition instrumentation and wheel specifications, and adds fuel-sender diagnosis. YXR45FX material covers passenger handholds and side doors. YXR45FY updates include middle-drive-shaft hardware and helmet/seat-belt indicator diagnostics.

Electrical Fault Isolation and Chassis Service

Starting-circuit and 2WD/4WD selecting-system diagrams accompany checks for switches, relays, wiring, and the gear motor. These checks help distinguish an electrical selection fault from a mechanical differential problem before components are replaced.

Troubleshooting also addresses hard starting, poor idle, gear-shifting faults, clutch performance, overheating, and unstable handling. Chassis procedures extend to steering-rack inspection, wheel bearings, stabilizer components, and brake master-cylinder and caliper assemblies.

Follow the manual’s vehicle-support and brake-system precautions when servicing the chassis or handling drivetrain assemblies.

A Preview of Valve, Fastener and Cooling Specifications

The base manual specifies cold valve clearances of 0.06–0.10 mm at the intake and 0.16–0.20 mm at the exhaust. Its engine torque table lists 10 Nm for the drive belt cover bolts.

The coolant-change section gives a nominal radiator capacity, including all routes, of 2.7 L and a separate coolant-reservoir capacity of 0.35 L. These are distinct capacities within the cooling-system instructions.

PDF Bookmarks, Diagram Detail and Page Count

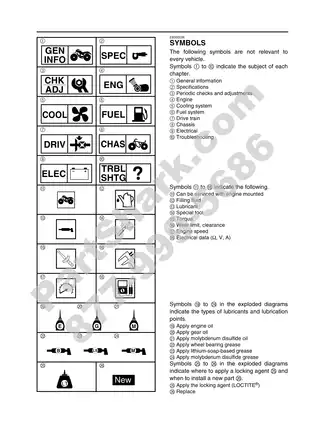

Search and navigation: The technical pages are not text-searchable. Embedded chapter and section bookmarks provide navigation through the base manual and supplements. Small wiring labels require enlargement for comfortable reading.

Supplied as one printable English PDF totaling 475 pages, including one collection cover and three otherwise blank section pages.
