Can-Am DS 450 Operator's Guide - 2008 Edition

The 2008 DS 450 series represents a pinnacle in sport ATV engineering, requiring precise factory data to maintain its high-performance edge and operator safety. Utilizing OEM-specified maintenance protocols is the only definitive way to ensure maximum Uptime Assurance and prevent catastrophic mechanical failure during competitive or recreational use. Failure to adhere to these verified technical standards can result in severe powertrain damage or compromised vehicle stability.

Comprehensive Model & Series Applicability:

• Can-Am DS 450 (Standard Series) | 449.3cc Rotax 4-Stroke | 2008 Model Year
• Can-Am DS 450M X (X Package Series) | 449.3cc Rotax with Fully Adjustable HPG Suspension
• Engine Identification: BRP Rotax Single-Cylinder, 4-Valve DOHC
• Regional Compliance: Certified for USA (EPA/CARB) and Canada; includes International/EU variants.

Performance ROI & Failure Prevention:

• Validated Calibration: Direct access to Bosch Electronic Fuel Injection (EFI) logic and idle speed settings (1800 RPM ± 50) to prevent engine stalling or misfire.
• Component Longevity: Precise 5-hour and 10-hour initial break-in schedules to protect high-tolerance internal surfaces from premature wear.
• Safety Integration: Verified torque values and steering toe-out specs (0.5 mm ± 0.5 mm) to eliminate high-speed handling instability.

Document Metadata:

• Print No: 708 200 098
• Total Pages: 144 Pages
• Document Type: Official BRP Operator's Guide (Includes Service Data)

Advanced Diagnostics & System Logic

The DS 450 features a sophisticated Inductive Digital Ignition (IDI) and Electronic Management System (EMS) designed for rapid response. Technicians can utilize the "Drowned Mode" diagnostic logic—holding the throttle open while cranking for 20 seconds—to clear a fuel-flooded engine without removing components. Furthermore, the integrated "Limp Home" protection mode (indicated by a flashing amber lamp) provides a failsafe logic to protect the engine during critical faults.

Visual Navigation & Schematic Quality

This guide utilizes high-resolution "Typical Construction" illustrations to provide visual confirmation for all critical service tasks. From the exact routing of the fuel tank vent tube into the steering column to the four-position adjustment of the parking brake mechanism, these visual aids ensure that maintenance is performed to verbatim factory specifications, reducing the margin for error in complex assemblies.

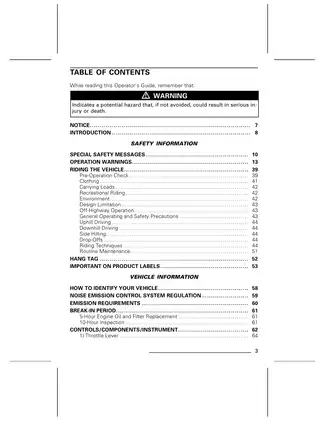

Detailed Table of Contents

• Vehicle Identification: VIN/EIN Locations and Emission Control Regulations
• Controls & Instruments: Multi-Switch Functions, Indicator Lamp Logic, and Ignition Positions
• Liquids & Capacities: XP-S 5W 40 Synthetic Oil, DOT 4 Brake Fluid, and Coolant Specs
• Operating Instructions: Starting Protocols, Shifting Sequences, and Break-in Periods
• Suspension Tuning: Factory Settings for Preload, Rebound, and High/Low Speed Compression
• Maintenance Procedures: Air Filter Care, Spark Arrester Cleaning, and Valve Inspections

Technical Benchmarks & Maintenance Logic

• Spark Plug Gap: 0.7 to 0.8 mm (.028 to .032 in) | Critical for proper IDI system timing and to prevent engine misfire or backfire.
• Wheel Nut Torque: 61 Nm (45 lbf ft) | Verbatim torque required to ensure wheel stability and prevent rim damage during high-impact sport riding.
• Clutch Lever Free Play: 10 to 15 mm (3/8 to 5/8 in) | Must be maintained to prevent premature wet-clutch disk wear and ensure full transmission engagement.
• Drive Chain Slack: 22 mm (7/8 in) | Measured at midway with driver weight to prevent excessive stress on the rear axle and countershaft.

FAQ

Does this manual cover both the standard and performance variants of the 450? Yes, this documentation provides verbatim coverage for the 2008 Can-Am DS 450 (Standard Series) and the DS 450M X (X Package Series). It explicitly details the BRP Rotax 449.3 cc single-cylinder, 4-stroke engine used across these models, including the specific HPG and fully adjustable HPG suspension systems. Having access to these specific technical identifiers ensures you are following the exact factory engineering logic for your particular vehicle variant.

What is the correct torque for the wheel nuts to ensure safety during sport riding? The manual specifies a final torque of 61 Nm (45 lbf-ft) for the wheel nuts. It is critical to use the recommended wheel nuts and washers to avoid damaging the rim. Applying this precise torque ensures the wheels remain securely fastened under the high-impact stresses of competitive riding, preventing wheel detachment or rim failure during aggressive maneuvers.

How do I troubleshoot an engine that turns over but refuses to start? If your Rotax engine is fuel-flooded—indicated by wet spark plugs—the manual provides a specialized "Drowned Mode" to clear the system. You must hold the throttle lever completely open while pressing the engine start button for exactly 20 seconds. This procedure stops fuel injection while cranking the engine to clear excess fuel. Utilizing this diagnostic logic avoids unnecessary part replacement and prevents long-term damage to the internal combustion components.

What are the critical maintenance intervals for the initial break-in period? To maintain the DS 450 at its highest performance level, you must perform the first engine oil and filter replacement after just 5 hours of riding or 3 full fuel tanks. Additionally, a comprehensive 10-hour inspection is required to verify the integrity of all precision mechanical components. Adhering to these early intervals is vital to remove break-in particulates from the synthetic multi-layer oil filter, ensuring the longevity of the engine's 11.8:1 compression ratio.

Can I use this digital manual to perform precise suspension tuning? Absolutely. The manual provides factory-validated benchmarks, such as the front spring factory length of 282 mm (11 in) and the rear spring length of 262 mm (10 in). For X-Package models, it includes "click-based" adjustment logic, such as setting the rebound adjuster to 9 clicks counterclockwise from the fully closed position. Accessing these values digitally allows for instant, shop-floor calibration of the suspension to match your specific weight and terrain, preventing poor handling or loss of stability.
