Can-Am Outlander & Renegade — 2009 ATV Service Manual Set (P/N 219 100 273)

736 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$17.80 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Can-Am Models Covered & Key Technical Specifications

Models: Outlander 500, Outlander 500 XT, Outlander MAX 500, Outlander MAX 500 XT, Outlander 650, Outlander 650 XT, Outlander MAX 650, Outlander MAX 650 XT, Outlander 800, Outlander 800 XT, Outlander MAX 800, Outlander MAX 800 XT, Outlander MAX 800 Ltd, Renegade 500, Renegade 800, Renegade 800 X

Sub-models / Variants: MAX, XT, Ltd, 500 cc, 650 cc, 800 cc, 800R EFI, X

Model Years: 2008–2009

Models & Model Codes:

Outlander 500 — V490; base manual: 2T8A, 2T8C, 2T8D, 2T8E, 2T8F; supplement: 2T9A, 2T9B

Outlander 500 XT — V490; base manual: 2U8A, 2U8B, 2U8C, 2U8D; supplement: 2U9A, 2U9B, 2U9C, 2U9D, 2U9E, 2U9F

Outlander MAX 500 — V490; base manual: 2W8C; supplement: 2W9A

Outlander MAX 500 XT — V490; base manual: 2X8A, 2X8B, 2X8C, 2X8D; supplement: 2X9A, 2X9B, 2X9C, 2X9D, 2X9E, 2X9F

Outlander 650 — V660; base manual: 2N8A, 2N8C, 2N8E, 2N8F, 2N8H, 2N8J; supplement: 2N9A, 2N9B, 2N9C

Outlander 650 XT — V660; base manual: 2P8A, 2P8B, 2P8C, 2P8D, 2P8E, 2P8F; supplement: 2P9A, 2P9B, 2P9C, 2P9D, 2P9E, 2P9F, 2P9G, 2P9H, 2P9J

Outlander MAX 650 — V660; base manual: 2R8A, 2R8C, 2R8D, 2R8E, 2R8F, 2R8G, 2R8H; supplement: 2R9A, 2R9B, 2R9C, 2R9D

Outlander MAX 650 XT — V660; base manual: 2S8A, 2S8B, 2S8C, 2S8D, 2S8E, 2S8F; supplement: 2S9A, 2S9B, 2S9C, 2S9D, 2S9E, 2S9F, 2S9G, 2S9H, 2S9J

Outlander 800 — V810; base manual: 2H8A, 2H8C, 2H8E, 2H8F, 2H8H, 2H8J; supplement: 2H9E

Outlander 800 XT — V810; base manual: 2J8A, 2J8B, 2J8C, 2J8D, 2J8E, 2J8F; supplement: 2J9J, 2J9K, 2J9L, 2J9M, 2J9N, 2J9P

Outlander MAX 800 — V810; base manual: 2K8A, 2K8C, 2K8D, 2K8E, 2K8F, 2K8G, 2K8H; supplement: 2K9A, 2K89B, 2K9C, 2K9D

Outlander MAX 800 XT — V810; base manual: 2L8A, 2L8B, 2L8C, 2L8D, 2L7E, 2L8F, 2L8G; supplement: 2L9A, 2L9B, 2L9C, 2L9D, 2I9E, 2L9F, 2L9G, 2L9H, 2L9J

Outlander MAX 800 Ltd — V810; base manual: 2M8A, 2M8B, 2M8C; supplement: 2M9A, 2M9B, 2M9C, 2M9D

Renegade 500 — V490; base manual: 4E8A, 4E8B, 4E8C; supplement: 4E9A, 4E9B, 4E9C, 4E9D

Renegade 800 — V810; base manual: 4B8A, 4B8B, 4B8C; supplement: 4B9A, 4B9B, 4B9C, 4B9E, 4B9F

Renegade 800 X — V810; supplement: 4C8A, 4C8B, 4C8C


  • Engine displacement: 500 cc (V490), 650 cc (V660), 800 cc (V810)

  • Transmission: CVT with dual-range (HI-LO) gearbox, park, neutral and reverse

  • Piston diameter: 81.950–81.966 mm (V490/V660, new); 90.950–90.966 mm (V810, new), measured 8 mm from the piston skirt edge perpendicular to the piston pin

  • Radiator cap opening pressure: 110 kPa (16 PSI)

  • Oil pressure (1250 RPM): 70–300 kPa (10–43 PSI), engine at 90°C (194°F), recommended oil

  • Oil pressure (6000 RPM): 350–550 kPa (51–80 PSI), engine at 90°C (194°F), recommended oil

  • Water pump housing torque: 10 Nm

  • Rear propeller shaft bolt torque: 45 Nm (engine side); 34 Nm (differential side)

Can-Am Manual Features & Selected Content Preview

Publication Pages
2008 Shop Manual — P/N 219 100 273: Outlander 500/650/800 and Renegade 500/800, including the listed MAX, XT and Ltd configurations; BRP publishing-process code vmr2008-040 503
2009 Shop Manual Supplement: Outlander 500/650/800R EFI and Renegade 500/800R EFI, including the Renegade 800R X 110
2009 ATV Technical Update Book — P/N 219 100 309: English edition with running changes, troubleshooting tips, tool references and specifications 118
2009 wiring sheets: Outlander and Renegade general-system diagrams and CE/Europe circuits 4
Additional compilation title page 1

For 2009 service work, BRP specifies using the supplement together with the included 2008 shop manual. The update book adds running-change and parts-compatibility information; it also contains dealer material and references to other ATV models.

PDF Bookmarks, Wiring Detail and Page Count

Text search and diagram viewing: PDF text search does not cover the technical content. Embedded bookmarks provide access to the base manual, supplement, update book and appended wiring section. Small wiring labels require enlargement, particularly on the base manual’s tiled diagram pages.

Supplied as one printable, 736-page PDF in English. The publication counts above include their internal covers, reference material, 29 blank pages and four notes pages; the compilation title page and four appended wiring sheets are also included in the total.


V-Twin Repair, EFI Diagnosis and Chassis Service

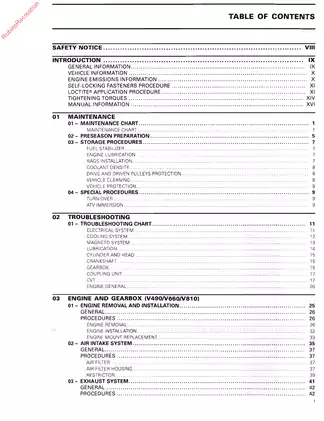

The following selected coverage highlights are examples rather than a complete contents list. Other included topics cover preseason preparation, storage and ATV-immersion procedures.

  • Engine and gearbox: Step-by-step removal, disassembly, inspection and reassembly procedures for cylinder heads, valve timing, crankcases, internal gearbox components and the 4x4 coupling unit.

  • Lubrication and cooling: Oil-pressure testing, oil-pump inspection, cooling-system leak tests, thermostat checks, radiator service and water-pump shaft and seal replacement.

  • EFI and B.U.D.S.: Fault-code diagnosis, ECM and sensor checks, closed-throttle and idle-actuator reset, DESS key programming, fuel-pressure testing and fuel-tank leak testing.

  • CVT and driveline: Belt and pulley service, differential shimming, propeller-shaft and U-joint work, plus half-shaft, joint and boot procedures.

  • Steering, suspension and brakes: Alignment, wheel bearings, suspension arms, trailing-arm bearings, hydraulic bleeding, master-cylinder inspection and caliper service.

  • Diagnostic references: Engine Management System Flow Chart, Fault Code Table, Fuel System Diagnostic Flow Chart, ECM and Deutsch connector views, and Outlander/Renegade wiring diagrams.

BRP prepared the shop publications primarily for mechanical technicians already familiar with its service procedures; B.U.D.S. diagnosis and internal overhaul work assume the appropriate shop skills, special tools and test equipment.

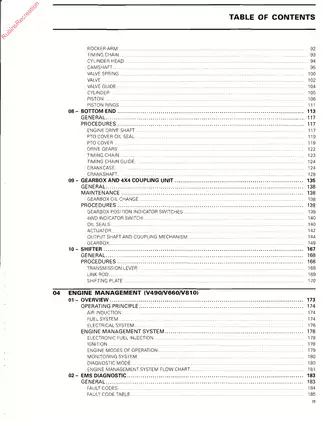

Internal Engine and Gearbox Work

The V490, V660 and V810 chapters cover air intake and exhaust assemblies, lubrication circuits, the oil pump and pressure-control components. Magneto coverage extends to the stator, rotor, sprag clutch and starter-drive gears.

Cylinder-head and bottom-end sections distinguish front and rear cylinder components and provide valve-train inspection, camshaft timing, piston and crankshaft measurements, PTO-cover service and crankcase work. Gearbox material adds shift-component inspection, output-shaft backlash, bevel-gear clearance and shifter adjustment.

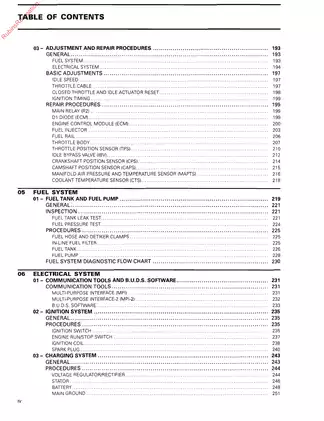

B.U.D.S., Fuel Injection and Electrical Tests

MPI and MPI-2 communication sections explain the diagnostic connection used with B.U.D.S. Engine-management material links sensor inputs, ECM outputs, monitoring messages and limp-home operation with the relevant tests.

Fuel-system procedures extend to injectors, the fuel rail, throttle body, fuel pump and level sensor. Pressure-decay diagnosis distinguishes likely leakage paths, giving technicians a way to narrow down a fuel-delivery fault before selecting the next component test.

Electrical chapters address charging and starting circuits, ignition switches, relays, the multifunction gauge, speed and fuel-level senders, lighting, winch circuits and Digitally Encoded Security System troubleshooting. Connector pin locations and circuit-specific measurements support fault tracing.

Differentials, Suspension and Brake Variants

Differential service includes shim selection, backlash measurement and preload checks. Steering and suspension sections distinguish the Outlander configurations from Renegade assemblies rather than treating every chassis as identical.

Brake coverage includes component inspection and hydraulic service, with separate illustrations and procedures for Renegade CE arrangements, including their circuit splitters. Body and frame sections cover panel removal, attachment points and structural components.

2009 Revisions and Parts Compatibility

The supplement updates the 800R air-filter arrangement and camshaft inspection data, gearbox-position and AWD switches, injectors and throttle-cable adjustment. Revised fuel-tank, pump, level-sensor and stator tests appear alongside rear torsion-bar, trailing-arm, brake and body changes.

The update book distinguishes the 800R from the earlier 800 H.O. engine. It also explains the different injector O-rings and the gasket-kit change that requires those O-rings to be ordered separately.

Rear half-shaft generations: Early and late MY2008 changes are documented alongside the earlier shaft design. Complete assemblies and their individual components have different interchangeability rules; identifying the fitted joint and boot generation helps select matching repair parts.

Cooling updates include revised reservoir venting and the 2009 XT/Limited vent-tube routing bulletin.

Special Tools and Component Cautions

Tool references include engine lifting tool P/N 529 036 022, MPI-2 interface P/N 529 036 018, drive-pulley puller P/N 529 035 746 and trailing-arm bearing installer/remover P/N 529 035 920.

The PTO-cover section warns that incorrect plain-bearing indexing can obstruct its oil feed and damage the engine. Gearbox and AWD-switch procedures flag sealant contamination of the plunger as a cause of switch malfunction.

Fuel-system, brake, CVT and engine-removal work requires the vehicle-support, pressure-release, electrical-isolation and lifting precautions specified in the manual.

Valve-Clearance Specification Preview

For the V490/V660/V810 engines, the cold-engine valve-adjustment specifications are 0.06–0.14 mm intake clearance and 0.11–0.19 mm exhaust clearance. The chapter pairs these settings with cylinder-specific timing references, while the inspection tables distinguish new-part dimensions from service limits.
