2013 Yamaha Grizzly 550 ATV Owner's Manual (P/N LIT-11626-27-22)
176 Pages • Printable PDF • 4.58 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: Grizzly 550 (YFM550DE, YFM550DHE, YFM550PE, YFM550PHE)
Model Year: 2013
-
Engine displacement: 558 cc
-
Ground clearance: 275 mm
-
Maximum weight capacity: 220.0 kg
-
Electrical system: 12 V, 18.0 Ah
-
Lighting: 35.0 W x 2 bulbs
-
Fuel tank capacity: 20.0 L (5.28 US gal)
-
Recommended tire pressure (front): 5.0 psi (35 kPa)
-
Recommended tire pressure (rear): 4.4 psi (30 kPa)
-
Front carrier bolt torque (upper/lower): 34 Nm (25 ft-lbs)
Yamaha Manual Features & Selected Content Preview

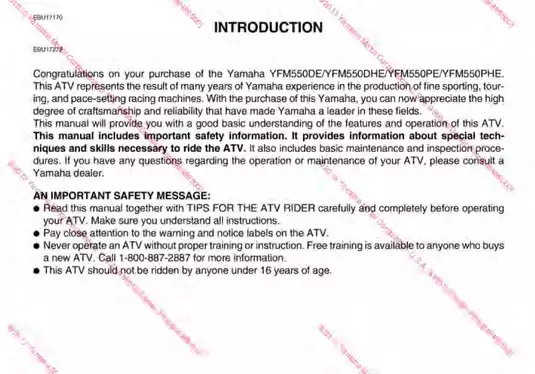

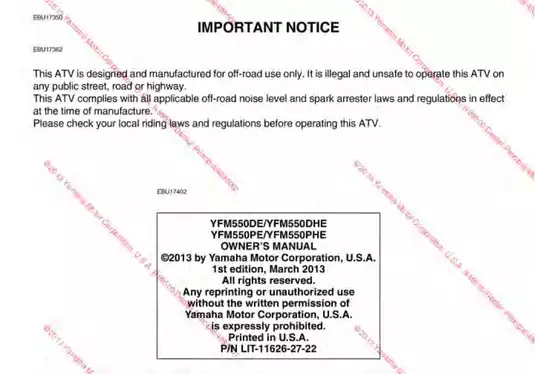

Yamaha's owner's manual for the 2013 Grizzly 550 covers YFM550DE, YFM550DHE, YFM550PE, and YFM550PHE. The publication is P/N LIT-11626-27-22, first edition, March 2013.
PDF Pages and Bookmark Navigation
Topic access and search: Embedded PDF bookmarks provide access to chapters and individual maintenance subjects. PDF text search is not available.
One printable, English-language PDF contains 176 pages: the 174-page owner's manual, including its covers, index, warranty information, three promotional pages, and one blank page, plus a two-page ATV owner safety/reply card. These additional pages are already included in the total.
On-Command Operation and Owner Maintenance
These selected topics outline the operating and maintenance coverage. The manual also provides cleaning guidance and preparation for long-term storage.
-
Controls and drive modes: On-Command drive selection, differential-lock operation, override-switch use, display settings, warning indicators, and drive select lever operation.
-
Engine maintenance: Spark plug inspection and replacement, engine oil and filter changes, foam air filter cleaning, spark arrester servicing, and throttle free play adjustment.
-
Cooling and drivetrain fluids: Coolant renewal with air bleeding, radiator cleaning access, final gear and differential oil changes, and water drainage from the V-belt case.
-
Brakes and chassis: Pad wear and fluid-level inspections, brake pedal adjustment, suspension preload settings, and checks of axle boots, wheel bearings, and stabilizer bushings.
-
Battery and lighting: VRLA battery removal, installation and storage, fuse identification, bulb replacement, and adjustment of the headlight beam.
-
Maintenance planning and troubleshooting: Emission-control schedules, general lubrication charts, starting and overheating flowcharts, fluid specifications, and fastener torque references.
This manual suits owners learning the ATV's controls and carrying out preventive maintenance or minor repairs when they have the tools and experience required for the particular task.
Drive Selection and EPS Differences
The operating instructions explain how the differential-lock indicators relate to engagement and how the override switch affects the speed-limiting function. EPS warning-light information and the associated fuse specifications apply to YFM550PE and YFM550PHE.
The riding chapters address slopes, uneven ground, shallow water, cargo, and towing. Pre-ride inspection tables link these uses to checks of the brakes, tires, fluids, throttle, and chassis.
Maintenance Access, Coolant, and Lubrication
The maintenance charts separate owner checks from asterisked tasks requiring dealer tools, data, or technical skills. They also explain when wet, dusty, sandy, or muddy use calls for shorter service intervals.
Step-by-step instructions cover panel and carrier removal, oil and filter replacement, gear oil changes, and wheel removal and installation. Illustrated access points and component-specific tightening references support these maintenance jobs without implying internal overhaul coverage.
The coolant replacement procedure includes bleeding points at both the water pump and cylinder head. Oil-selection guidance addresses the shared engine and wet-clutch lubrication system, including the risk of clutch slippage from unsuitable oils or additives.
Brake Checks and Dealer-Assigned Work
The brake inspection pages illustrate pad wear indicators and distinguish brake lever checks from pedal free play adjustment. Valve clearance and drive select lever safety cable adjustment are referred to a Yamaha dealer, as are hydraulic brake bleeding, brake fluid changes, and brake component replacement.
Improper brake servicing can impair stopping performance. This owner's manual covers basic upkeep and minor repair work; it does not provide internal engine or transmission overhaul procedures.
Warning Displays and Basic Fault Finding
The self-diagnosis section explains the appearance of error codes and the need for dealer assessment. Its coverage does not extend to a code interpretation table, wiring diagrams, or detailed electrical circuit testing.
The “Starting problems or poor engine performance” and “Engine overheating” charts connect symptoms with basic checks and dealer referral points. They help owners organize a starting or cooling complaint before arranging repair.
Battery guidance identifies the constant-voltage charging equipment required for a VRLA battery and explains why a conventional charger can damage it.
Spark Plug and Throttle Setting Preview
The spark plug inspection section specifies an NGK/LMAR6A-9 plug with an electrode gap of 0.8–0.9 mm (0.031–0.035 in).
For the throttle control, the adjustment section gives a lever free play range of 3.0–5.0 mm (0.12–0.20 in), with an illustration showing the measurement location.
