Kawasaki Mule 1000 (KAF450-B1) 1993–2007 UTV Service Manual

216 Pages • Printable PDF • 32.11 MB • Download

4.6starstarstarstarstar_half(5)
$17.75 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Models & Model Codes: Mule 1000 (KAF450-B1)

Model Years: 1993–2007 (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)

Engine serial break: KAF450-B1 transmission shift mechanism — Engine No. AF450BE003436 ~ (onward)


  • Engine type: 4-stroke, DOHC, 2-cylinder

  • Engine displacement: 454 mL

  • Cooling system: Liquid-cooled

  • Compression ratio: 9.6

  • Transmission type: Belt drive torque converter

  • Fuel system: Keihin CVK30 dual carburetors

  • Starting system: Electric starter

  • Suspension: Front Strut, Rear Semi-trailing

  • Brakes: Hydraulic drum (front and rear)

Kawasaki Manual Features & Selected Content Preview

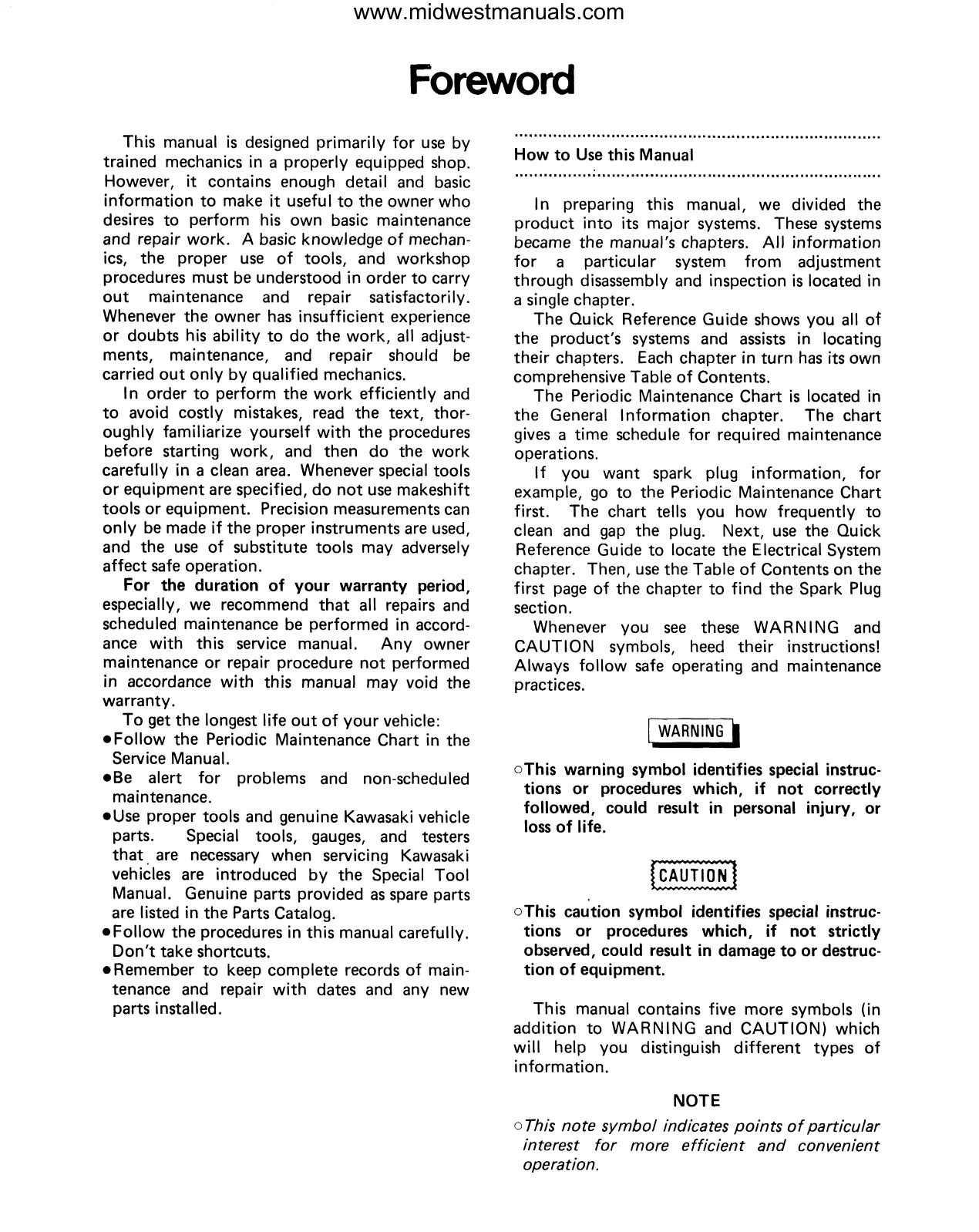

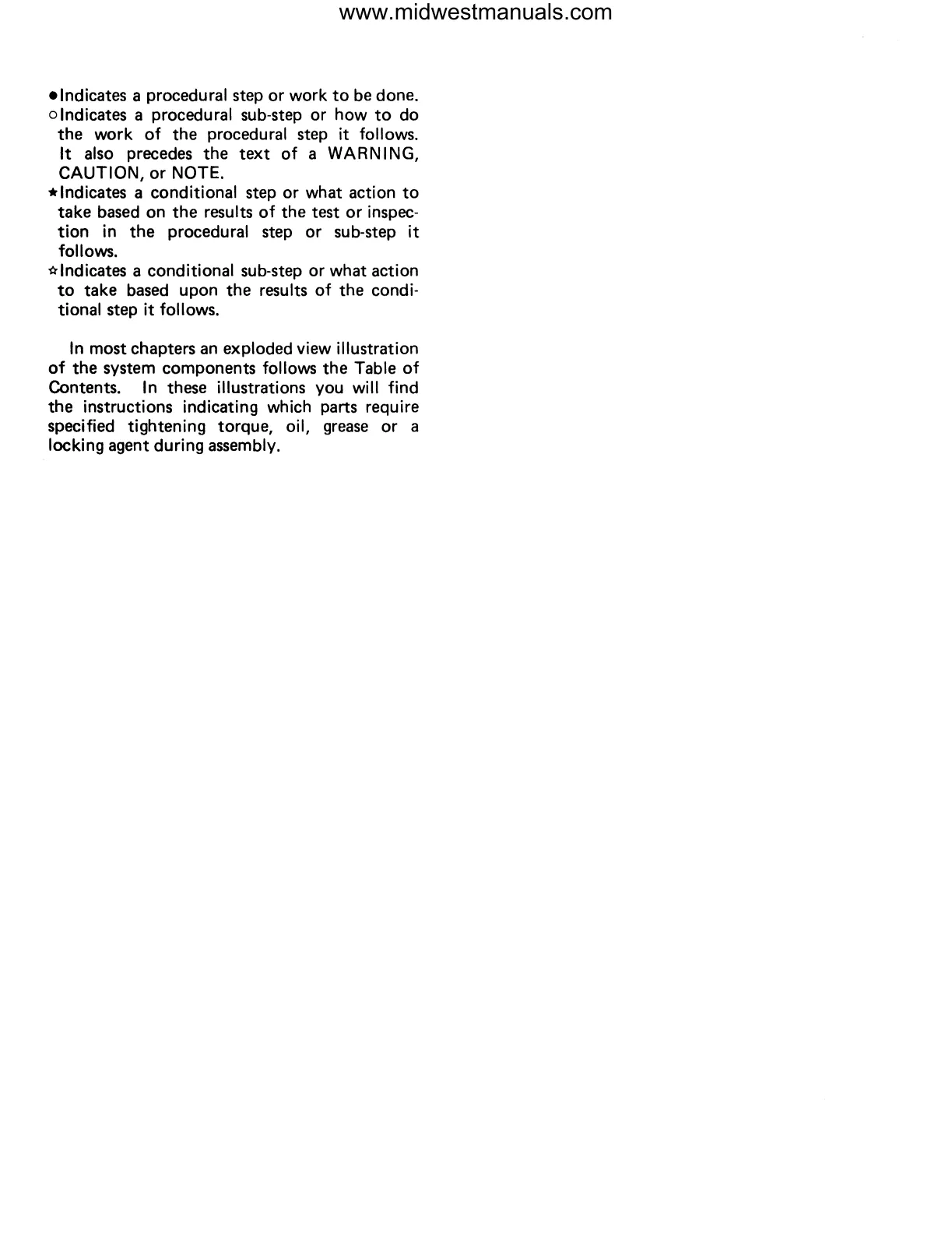

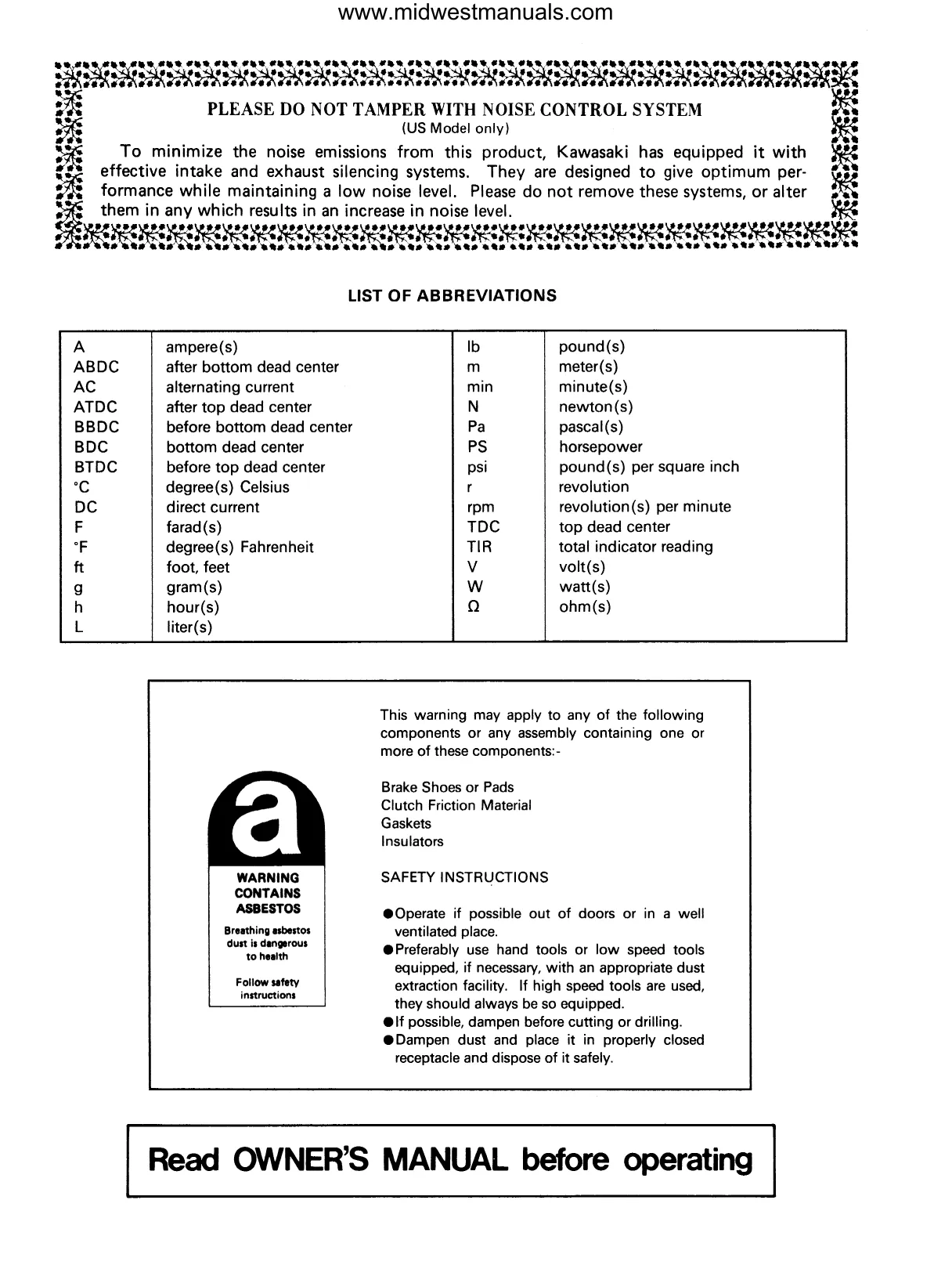

Kawasaki factory service manual for the 1993–2007 Mule 1000 (KAF450-B1), with maintenance, diagnostic, and repair procedures organized by vehicle system.

PDF Search, Bookmarks, and Page Details

Search and diagram navigation: An embedded OCR text layer supports searches across the main chapters, though recognition errors can prevent exact matches and the model-identification page lacks searchable model text. PDF bookmarks provide access to chapters and many subsections. Small wire-color codes and component labels in the main wiring diagram require zooming.

One printable English-language PDF contains 216 pages across 16 chapters, including the eight-page appendix, one added introductory page, and six blank separator/end pages.


Engine, Belt Converter, and Chassis Service

The following selected service topics illustrate the manual’s coverage rather than reproduce its full contents. Further topics include spark-arrester cleaning and speed-sensor inspection.

  • Engine repair: Engine removal and installation, crankcase splitting, cylinder-head and valve-seat repair, cam-chain timing, piston inspection, and crankshaft bearing checks.

  • Fuel system: Step-by-step instructions for dual-carburetor synchronization, fuel-level adjustment, carburetor disassembly and inspection, plus fuel-filter and air-cleaner service.

  • Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump seal service, coolant replacement, oil-pump inspection, and engine oil-pressure measurement.

  • Belt converter and final drive: Drive-belt inspection, pulley disassembly and assembly, transmission-shaft service, differential gear inspection, and drive-shaft boot replacement.

  • Hydraulic brakes: Brake-line air bleeding, master-cylinder and wheel-cylinder inspection, drum removal and installation, shoe-wear checks, and parking-brake adjustment.

  • Steering and chassis: Steering-gear preload adjustment, wheel alignment, wheel-bearing service, suspension-arm replacement, and removal of cargo-bed and frame-mounted components.

  • Electrical diagnosis: Wiring diagrams, charging-system and ignition tests, starter-motor service, relay checks, and fuel-pump and radiator-fan circuit testing.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical principles, tool use, and workshop procedures.

Engine Inspection and Assembly References

Factory wear limits and assembly sequences provide a reference for evaluating parts and planning reassembly. The bottom-end chapter pairs crankshaft, connecting-rod, and balancer measurements with bearing-insert selection tables, including color identification and part numbers.

Top-end coverage extends to cam height, valve-stem bend, piston-to-cylinder clearance, valve-guide wear, and valve-seat repair. Exploded views identify component locations, tightening requirements, and specified lubricant or sealant application points.

The cam-chain tensioner caution explains how incorrect push-rod handling can detach the rod and prevent reinstallation. Water-pump and alternator procedures identify the impeller and rotor bolt as left-hand-threaded; the alternator section also warns that striking the rotor can weaken its magnets.

Carburetion, Cooling, and Oil Circulation

Float-height measurement drawings support the carburetor adjustment sections. Separate air-cleaner instructions distinguish the carburetor intake from the belt converter’s ventilation system.

Coolant and engine-oil flow charts show how the circuits connect to the serviced components. Cooling diagnosis distinguishes external leakage, water-pump mechanical-seal leakage, and possible internal leakage, with separate thermostat-cap pressure and thermostat-opening tests.

Pulley Service and Transmission Changes

Pulley inspection covers bushings, sheave surfaces, ramp weights, rollers, springs, and driven-pulley wear shoes. A dimensioned driven-pulley holder drawing supports preparation of the holding fixture used during disassembly.

The transmission exploded view distinguishes the revised shift mechanism from engine No. AF450BE003436 onward. This identification helps match the illustrated shift components to the engine being serviced. Differential coverage includes the locking mechanism, cable adjustment, and internal gear assembly.

Brake, Steering, and Frame Work

Rear brake-drum installation includes a press-fit acceptance check and identifies the required holder, remover, and pusher tools. Steering instructions cover rack-and-pinion preload and tie-rod adjustment; suspension service addresses mounting bushings and arm positioning.

Tubular-frame illustrations and cable-routing views support access work involving the cargo bed, fenders, and subframes. Maintenance charts distinguish regular service from more frequent attention under harsh operating conditions. Follow the manual’s lifting, fuel-vapor, hot-coolant, and brake-service precautions.

Electrical Testing and Fault Tracing

The main wiring diagram works alongside connector views, switch-continuity tables, and regulator/rectifier and IC igniter test data. The IC igniter resistance table specifies Kawasaki Hand Tester 57001-983; readings from other testers may differ.

These references connect symptoms to component checks—for example, separating fuel-pump operation from relay faults. The appendix provides a guide to common starting, running, converter, shifting, and charging problems, rather than an exhaustive diagnostic decision tree.

Selected Valve-Clearance and Cooling Specifications

For cold-engine intake-valve checks between the valve stem and adjusting screw, the standard clearance is 0.13–0.18 mm. The manual gives a different specification for measurement between the cam and rocker arm, so the measurement location matters.

Cooling-system specifications list a total coolant amount of 2.5 L and a thermostat-cap relief pressure of 93–123 kPa. The related sections explain coolant filling and cap testing, with additional thermostat-opening and radiator-fan switch data.
